Elitech ECM-30B Pharmaceutical Cold Room Controllers
Elitech ECM-30B Pharmaceutical Cold Room Controllers
Product Description
The Elitech ECM-30 Series is designed for pharmaceutical cold rooms, food cold rooms, medium- and low-temperature storage facilities and quick-freezing rooms requiring enhanced reliability and remote supervision.
The system supports two-refrigeration-unit configurations, including duty-standby and dual-unit operation. Running time can be balanced between the two refrigeration units, and the standby system can be activated automatically if the primary unit reports a fault.

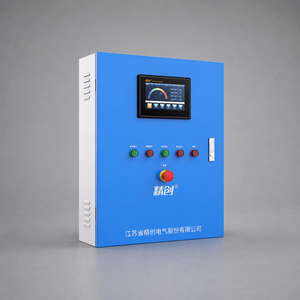

The ECM-30B adds a 7-inch color touchscreen and IoT monitoring functions for remote cold room management.
Key Features
- Duty-standby refrigeration-unit control
- Dual-unit operating mode
- Automatic changeover after primary-unit failure
- Balanced operating time between refrigeration units
- Automatic temperature compensation during defrost
- Single- or dual-room-temperature sensor monitoring
- Independent temperature and humidity monitoring
- Refrigeration, defrost, fan and alarm control
- Compressor high-pressure protection
- Compressor low-pressure protection
- Motor overload protection
- Phase-loss and phase-sequence protection
- Three-phase imbalance protection
- Inverse-time motor protection
- MODBUS-RTU communication
- Remote cloud monitoring
- Temperature-data recording and storage
- Remote parameter viewing and adjustment

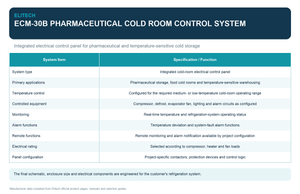

Model Comparison
| Model | Display | Networking and Monitoring |
|---|---|---|
| ECM-30B | 7-inch color touchscreen | IoT monitoring, remote status viewing, alarms and cloud-data access |
Applications
- Pharmaceutical cold rooms
- Vaccine and medicine storage
- Food cold rooms
- Medium- and low-temperature warehouses
- Quick-freezing rooms
- Cold rooms requiring standby refrigeration units
- Facilities requiring remote monitoring
