HONGSEN HMG-8 Refrigeration Hose Fittings and Assembly Parts
Description
Product Overview
HONGSEN HMG-8 fittings and assembly parts are designed for the HS-HMG-8 flexible high-pressure hose with a 6.2 mm inner diameter and 10.5 mm outer diameter.
The standard fitting range includes a 90-degree bend core with a 3/8-inch nut, a straight core, a separate 3/8-inch nut and the matching aluminium crimping sleeve.
The larger HMG-8 hose is designed for applications requiring greater internal flow area. All components must be matched correctly before hose assembly.
Key Features
- Specifically matched to HS-HMG-8 hose
- Larger internal flow area
- 3/8-inch connection option
- 90-degree and straight fitting configurations
- Matching aluminium crimping sleeve
- Suitable for custom refrigeration hose assemblies
- Individual replacement components available
Compatible Hose
| Item | Specification |
|---|---|
| Compatible hose | HS-HMG-8 |
| Hose inner diameter | 6.2 mm |
| Hose outer diameter | 10.5 mm |
| Maximum working pressure | 4.2 MPa |
| Blasting test pressure | 20 MPa |

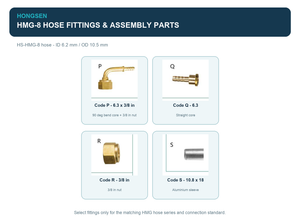

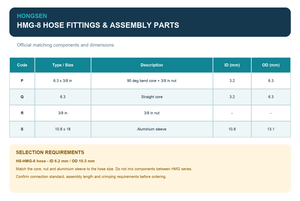

Available Fittings
| Reference | Type/Size | Description | ID | OD |
|---|---|---|---|---|
| P | φ6.3 × 3/8″ | 90° bend core with 3/8″ nut | 3.2 mm | 6.3 mm |
| Q | φ6.3 | Straight core | 3.2 mm | 6.3 mm |
| R | 3/8″ | 3/8″ nut | — | — |
| S | φ10.8 × 18 | Aluminium sleeve | 10.8 mm | 13.1 mm |
Selection Notice
These components are compatible with HS-HMG-8 hose only. Confirm the 3/8-inch connection requirement, finished hose length and crimping configuration before ordering.
| Model |
Code P, Code Q, Code R, Code S |
|---|
