Frascold FVR-H Medium-Temperature Semi-Hermetic Screw Compressors
PRODUCT DESCRIPTION
The Frascold FVR-H Series comprises semi-hermetic screw compressors designed for medium-temperature and higher evaporating-temperature refrigeration applications.
FVR-H compressors provide compact construction, low sound levels and efficient, reliable operation. They are suitable for variable-frequency drive operation and can be used as individual compressors or combined in parallel compressor systems.
The listed models cover nominal motor sizes from 40 HP to 180 HP and nominal displacements from 120 to 540 m³/h at 50 Hz. Compressor selection must be confirmed according to refrigerant, evaporating temperature, condensing temperature, required cooling capacity and electrical supply.
KEY FEATURES
-
Semi-hermetic screw compressor design
-
Designed for medium-temperature refrigeration
-
Compact and installation-friendly construction
-
High refrigeration efficiency
-
Low sound and vibration levels
-
Variable-frequency drive compatible
-
Reduced starting current with part-winding start
-
Stepped capacity control
-
Unloaded starting function
-
Integrated oil management system
-
Motor and discharge-temperature protection
-
Suitable for individual and parallel operation
-
Universal connection arrangement
-
Compatible with several approved refrigerant families
AVAILABLE MODELS
| Model | Motor Power | Nominal Displacement at 50 Hz | Available Capacity Steps |
|---|---|---|---|
| FVR-H-40-120 | 40 HP / 29.8 kW | 120 m³/h | 100%, 75% |

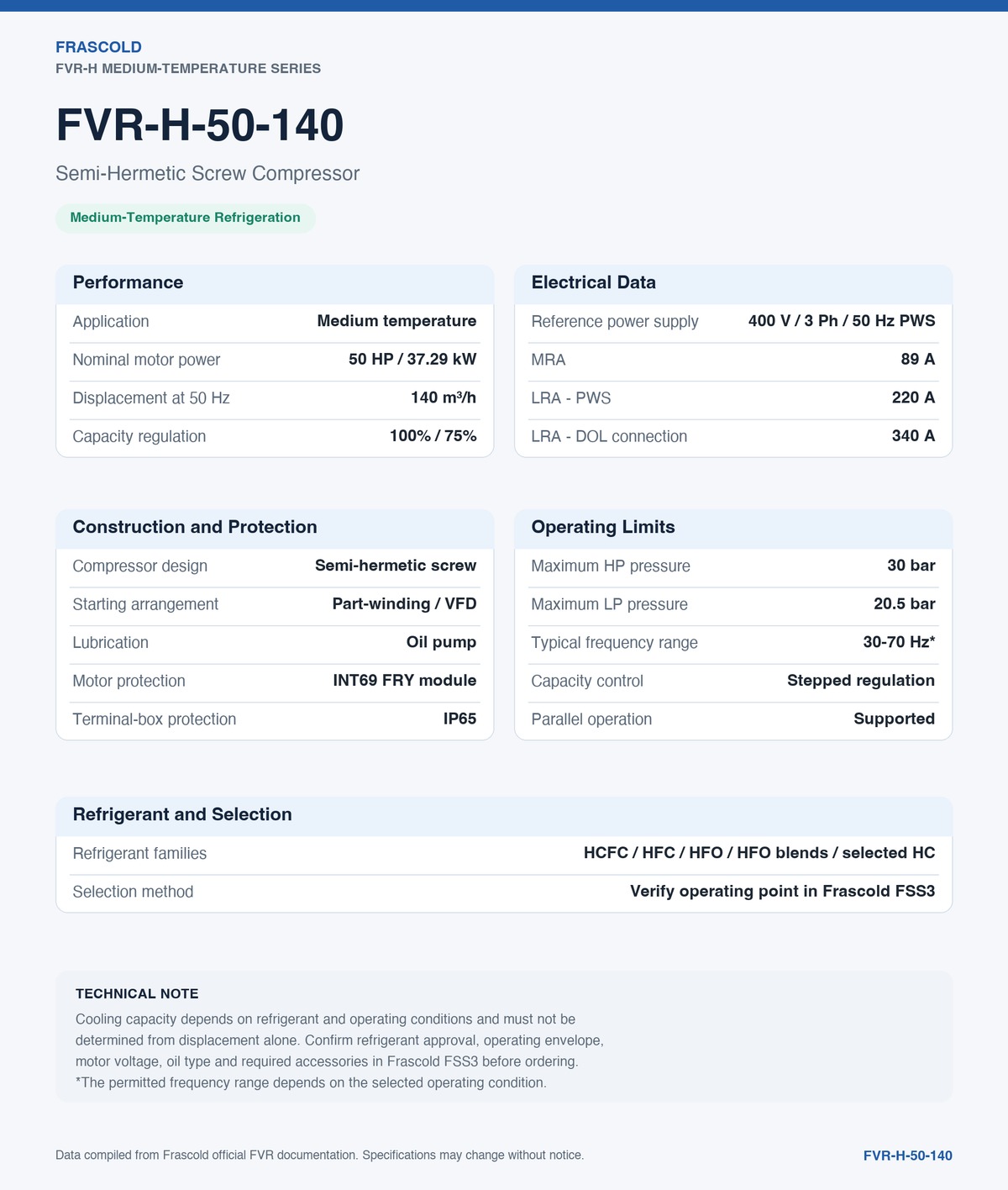

| FVR-H-50-140 | 50 HP / 37.3 kW | 140 m³/h | 100%, 75% |
| FVR-H-60-160 | 60 HP / 44.7 kW | 160 m³/h | 100%, 75% |

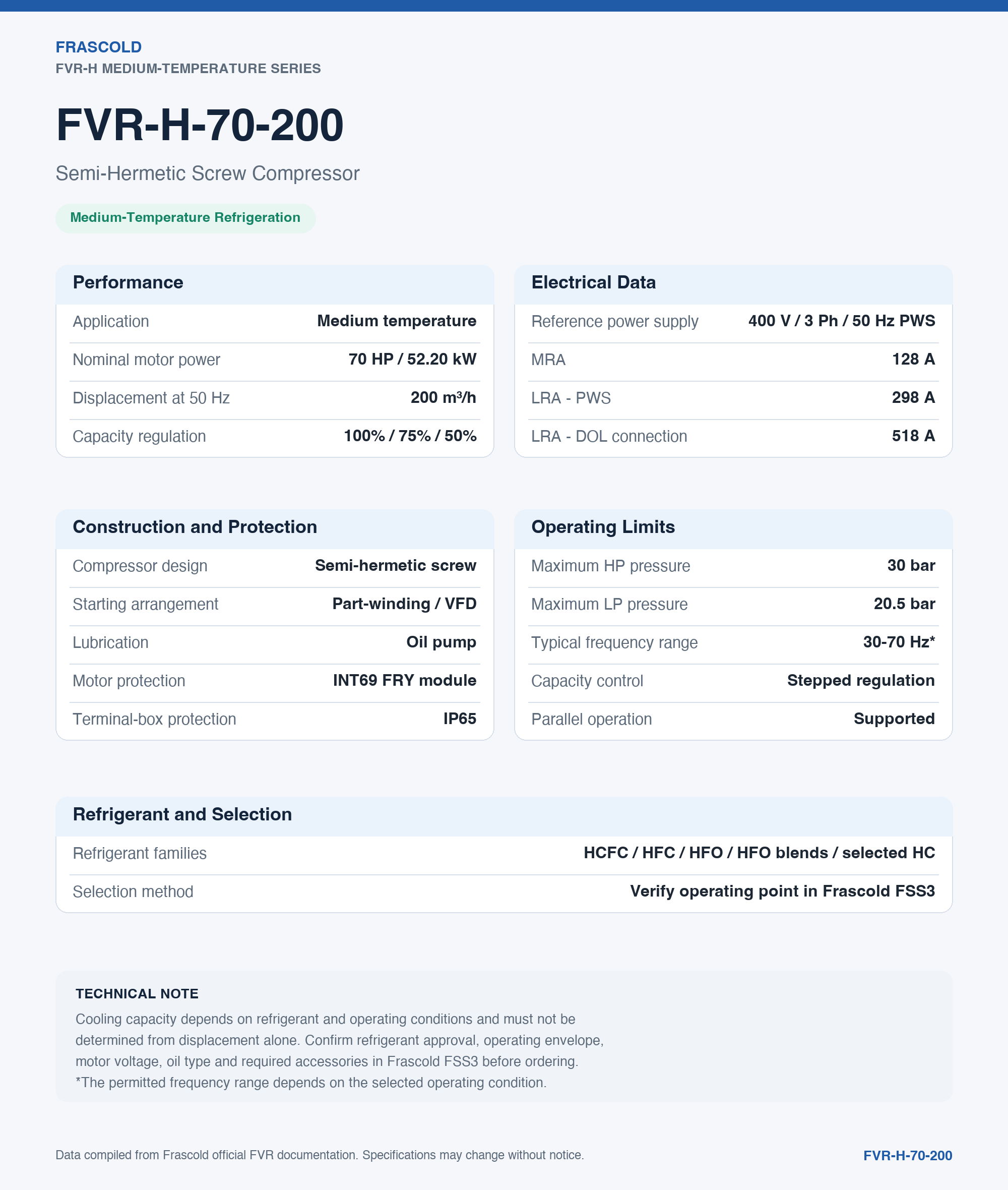

| FVR-H-70-200 | 70 HP / 52.2 kW | 200 m³/h | 100%, 75%, 50% |

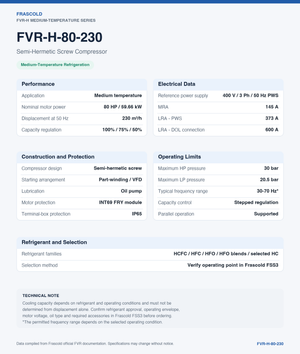

| FVR-H-80-230 | 80 HP / 59.7 kW | 230 m³/h | 100%, 75%, 50% |
| FVR-H-90-270 | 90 HP / 67.1 kW | 270 m³/h | 100%, 75%, 50% |
| FVR-H-100-300 | 100 HP / 74.6 kW | 300 m³/h | 100%, 75%, 50% |

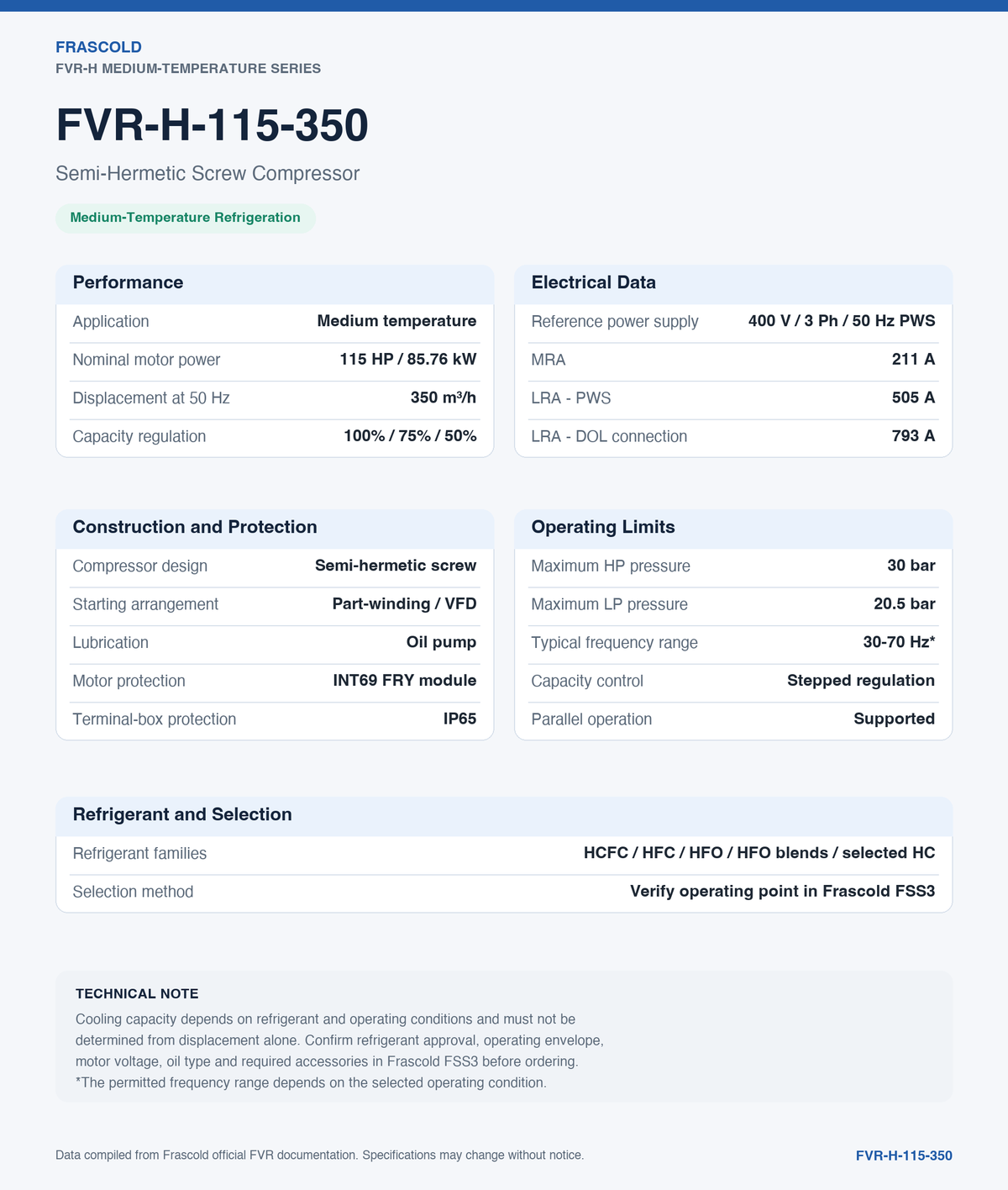

| FVR-H-115-350 | 115 HP / 85.8 kW | 350 m³/h | 100%, 75%, 50% |

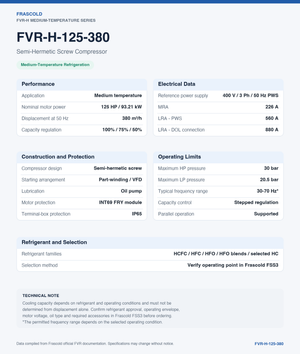

| FVR-H-125-380 | 125 HP / 93.2 kW | 380 m³/h | 100%, 75%, 50% |
| FVR-H-140-430 | 140 HP / 104.4 kW | 430 m³/h | 100%, 75%, 50% |
| FVR-H-160-460 | 160 HP / 119.3 kW | 460 m³/h | 100%, 75%, 50% |
| FVR-H-180-540 | 180 HP / 134.2 kW | 540 m³/h | 100%, 75%, 50% |
GENERAL TECHNICAL DATA
| Item | Specification |
| Compressor Type | Semi-hermetic screw compressor |
| Application | Medium-temperature refrigeration |
| Nominal Power Range | 40–180 HP |
| Nominal Displacement Range | 120–540 m³/h at 50 Hz |
| Standard Motor Supply | 380–420 V / 3 Ph / 50 Hz; 440–480 V / 3 Ph / 60 Hz |
| Terminal Box Protection | IP65 |
| Maximum Low-Side Pressure | 20.5 bar |
| Maximum High-Side Pressure | 30 bar |
| Starting Method | Part-winding start or VFD, depending on configuration |
| Capacity Control | Stepped capacity regulation |
| Lubrication | Integrated oil injection and oil management system |
| Frequency Operation | Typically 30–70 Hz, subject to operating envelope |
| Refrigerants | Selected HCFC, HFC, HFO, HFO-blend and HC refrigerants, subject to model approval |
| Compressor Selection | Frascold FSS3 selection software recommended |
TYPICAL APPLICATIONS
-
Medium-temperature cold rooms
-
Food and beverage storage
-
Refrigerated distribution centres
-
Supermarket refrigeration systems
-
Industrial process cooling
-
Marine refrigeration
-
Parallel compressor racks
-
Commercial and industrial refrigeration plants
SELECTION NOTICE
Model selection must be confirmed using the actual operating conditions. Cooling capacity, absorbed power, oil type, refrigerant charge and connection dimensions vary according to the refrigerant and application.
| Model |
FVR-H-40-120, FVR-H-50-140, FVR-H-60-160, FVR-H-70-200, FVR-H-80-230, FVR-H-90-270, FVR-H-100-300, FVR-H-115-350, FVR-H-125-380, FVR-H-140-430, FVR-H-160-460, FVR-H-180-540 |
|---|
