Description

The InvoTech YM-10X Series consists of vertical hermetic scroll compressors designed for medium-temperature refrigeration applications requiring an explosion-proof compressor configuration.

The series incorporates InvoTech scroll technology with radial and axial compliance, optimized floating-seal design and a refrigeration-duty motor. Available variants support R22 with 3GS mineral oil and R404A with POE oil.

Standard three-phase models are designed for 380–420 V, 3-phase, 50 Hz or 460 V, 3-phase, 60 Hz power supplies. The “G” configuration includes a sight glass and welded suction and discharge connections.

Key Features

• Medium-temperature refrigeration application
• Explosion-proof compressor configuration
• Vertical hermetic scroll construction
• Radial and axial scroll compliance
• Optimized floating-seal design
• Internal motor overload protection
• Sight glass
• Welded suction and discharge connections
• R22 and R404A variants
• 2–7 HP model range
• Low sound and vibration characteristics
• 70 W crankcase heater recommendation
• Three-phase power supply

Applications

• Medium-temperature cold rooms
• Refrigerated storage facilities
• Commercial refrigeration equipment
• Food preservation and processing refrigeration
• Refrigeration systems requiring explosion-proof equipment

Explosion-proof certification and suitability must be checked against the installation environment, local regulations and the compressor nameplate before purchase.

Variants

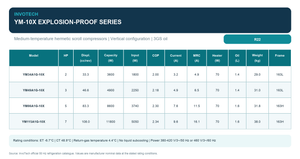

Option name: Model

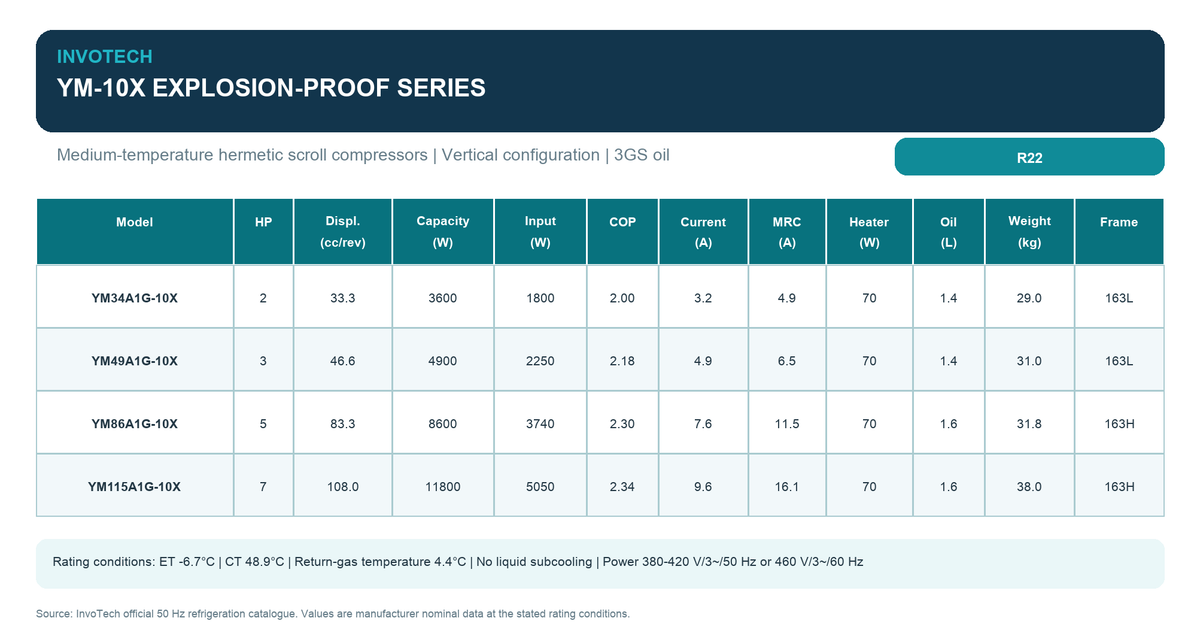

R22 / 3GS oil

• YM34A1G-10X
• YM49A1G-10X
• YM86A1G-10X
• YM115A1G-10X

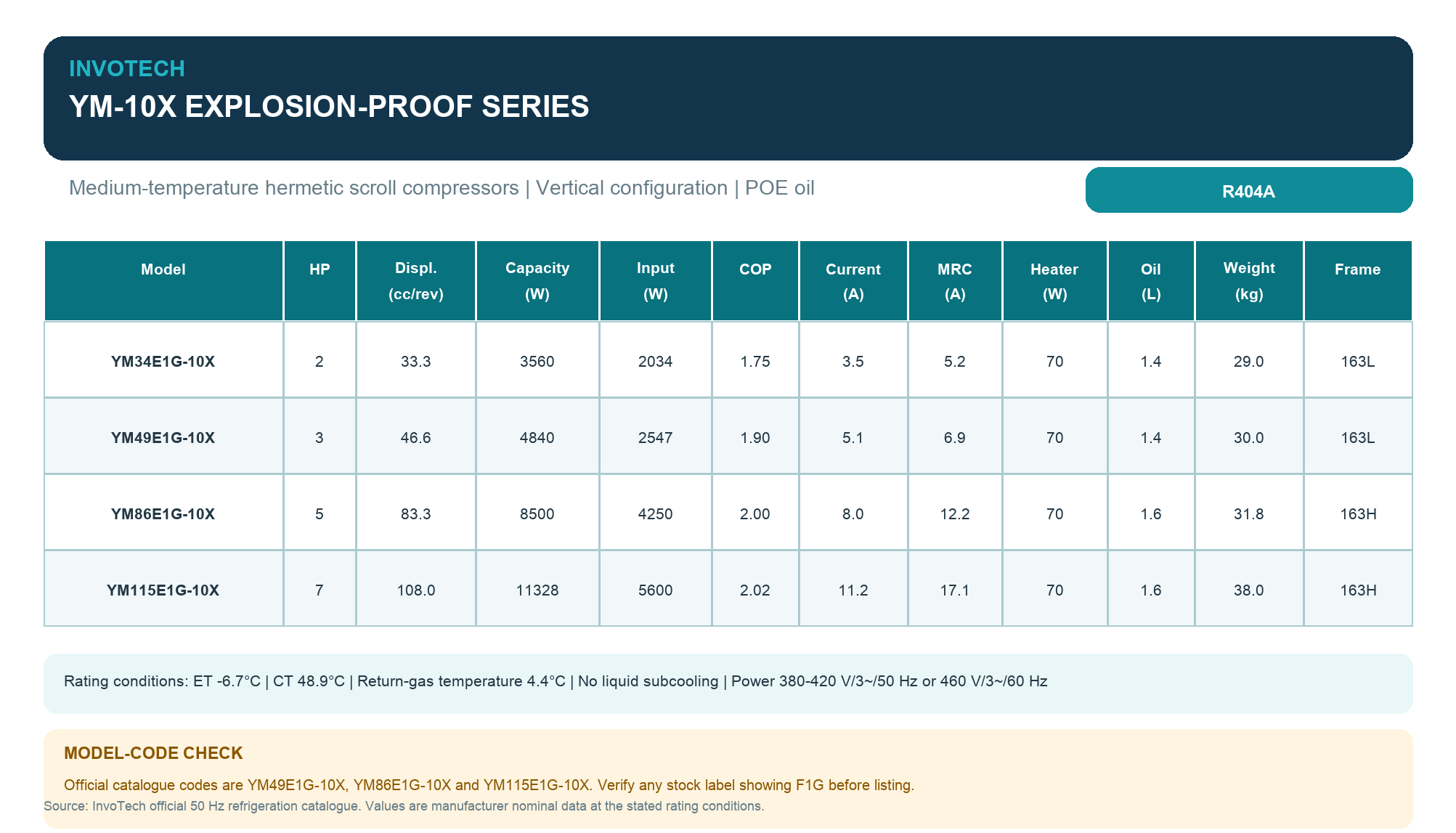

R404A / POE oil

• YM34E1G-10X
• YM49E1G-10X
• YM86E1G-10X
• YM115E1G-10X
