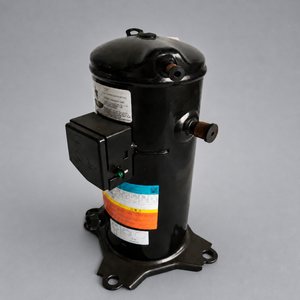

InvoTech YM 2–13 HP Medium-Temperature Hermetic Scroll Compressors
PRODUCT DESCRIPTION
InvoTech YM fixed-speed hermetic scroll compressors are designed specifically for medium-temperature commercial refrigeration.
The series uses radial and axial compliance technology, an optimized axial floating-seal design and a high-efficiency motor to provide efficient and stable operation across a broad application range.
These compressors are suitable for commercial cold rooms, refrigerated display equipment, ice machines and medium-temperature condensing units when selected within the manufacturer-approved operating envelope.
KEY FEATURES
-
Fixed-speed hermetic scroll construction
-
Designed for medium-temperature refrigeration
-
Nominal range from 2 to 13 HP
-
Dual-compliance scroll technology
-
High-efficiency motor design
-
POE refrigeration lubricant
-
Low vibration and smooth operation
-
Discharge-temperature protection
-
Built-in motor overload protection
-
Single-phase models available from 2 to 4 HP
-
Three-phase models available from 2 to 13 HP
-
Evaporating temperature down to -30°C for approved models and conditions
REFRIGERANT INFORMATION
The official nominal performance table is based on R404A.
InvoTech’s current nomenclature assigns refrigerant code “E” to R404A, R507, R448A, R449A and R452A applications using POE oil. Always verify the approved operating envelope for the selected model and refrigerant.
AVAILABLE MODELS
Single-Phase Models:
| Model | Power Supply | Nominal HP |
|---|---|---|
| YM34E2G-102 | 220 V, 1 Phase, 50 Hz | 2 |
| YM49E2G-102 | 220 V, 1 Phase, 50 Hz | 3 |
| YM70E2G-100 | 220 V, 1 Phase, 50 Hz | 4 |
Three-Phase Models:
| Model | Power Supply | Nominal HP |
| YM34E1G-100 | 380–420 V, 3 Phase, 50 Hz or 460 V, 3 Phase, 60 Hz | 2 |
| YM43E1G-100* | 380–420 V, 3 Phase, 50 Hz or 460 V, 3 Phase, 60 Hz | 2.5 |
| YM49E1G-100 | 380–420 V, 3 Phase, 50 Hz or 460 V, 3 Phase, 60 Hz | 3 |
| YM70E1G-100 | 380–420 V, 3 Phase, 50 Hz or 460 V, 3 Phase, 60 Hz | 4 |
| YM86E1G-100 | 380–420 V, 3 Phase, 50 Hz or 460 V, 3 Phase, 60 Hz | 5 |
| YM102E1G-100 | 380–420 V, 3 Phase, 50 Hz or 460 V, 3 Phase, 60 Hz | 6 |
| YM115E1G-100 | 380–420 V, 3 Phase, 50 Hz or 460 V, 3 Phase, 60 Hz | 7 |
| YM125E1G-100* | 380–420 V, 3 Phase, 50 Hz or 460 V, 3 Phase, 60 Hz | 7.5 |
| YM132E1G-100 | 380–420 V, 3 Phase, 50 Hz or 460 V, 3 Phase, 60 Hz | 8 |
| YM158E1G-100 | 380–420 V, 3 Phase, 50 Hz or 460 V, 3 Phase, 60 Hz | 9 |
| YM182E1G-100 | 380–420 V, 3 Phase, 50 Hz or 460 V, 3 Phase, 60 Hz | 10 |
| YM200E1G-100 | 380–420 V, 3 Phase, 50 Hz or 460 V, 3 Phase, 60 Hz | 12 |
| YM210E1G-100 | 380–420 V, 3 Phase, 50 Hz or 460 V, 3 Phase, 60 Hz | 13 |
MODEL STATUS NOTE
YM43E1G-100 and YM125E1G-100 are documented in earlier official InvoTech literature and official cross-reference material but are not listed in the latest standard 2026 specification table. Confirm the complete nameplate and production status before accepting an order.
Do not substitute technical data from YM49E1G-100 or YM115E1G-100 for these two models.

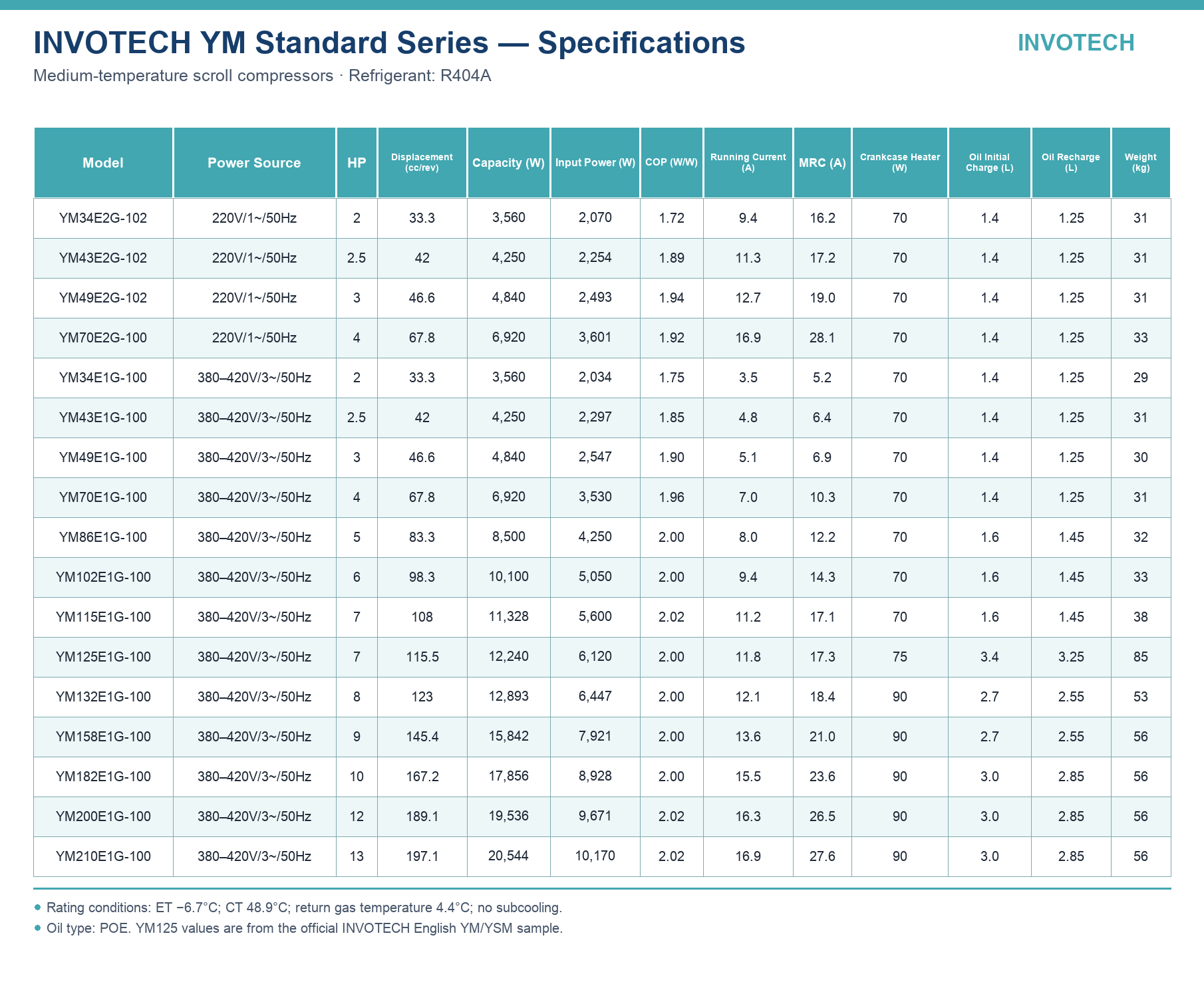

OFFICIAL RATING CONDITIONS FOR CURRENT MODELS
-
Evaporating temperature: -6.7°C
-
Condensing temperature: 48.9°C
-
Return-gas temperature: 4.4°C
-
Liquid subcooling: 0 K
-
Lubricant: POE
IMPORTANT SELECTION NOTICE
Cooling capacity depends on the refrigerant and operating conditions. Compressor selection must be based on the required capacity, evaporating temperature, condensing temperature, voltage, phase and frequency.
| Model |
YM34E1G-100, YM43E1G-100, YM49E1G-100, YM70E1G-100, YM86E1G-100, YM102E1G-100, YM115E1G-100, YM125E1G-100, YM132E1G-100, YM158E1G-100, YM182E1G-100, YM200E1G-100, YM210E1G-100 |
|---|
