Invotech YSM Series Semi-Hermetic Scroll Compressors | Medium-Temperature Refrigeration
The YSM Series is a semi-hermetic, field-serviceable scroll compressor line purpose-built for medium-temperature refrigeration duty. It extends the YM platform into the 14–15 HP capacity class for large cold storage warehouses, commercial refrigeration racks, and other heavy-duty systems where higher capacity and on-site serviceability are required.
Design Features
- Every component, from the scroll set to the overall housing, is purpose-designed for medium-temperature refrigeration duty rather than adapted from an A/C or heat-pump platform
- Dual (radial and axial) compliance scroll design with an optimized axial floating seal for higher volumetric efficiency
- Precise discharge temperature control, giving the compressor a wide operating envelope across varying condensing/evaporating conditions
- Calculated load and sealing force for lower operating noise versus earlier-generation designs
- High-efficiency motor winding optimized specifically for refrigeration duty cycles
- Semi-hermetic, bolted housing construction — internal components (motor, valves, bearings) are accessible for field service, reducing total cost of ownership versus a fully-hermetic compressor of the same capacity
- Copper-plated steel suction and discharge fittings for corrosion resistance and reliable brazed joints
Model Naming Convention
Using YSM260A1G-100 as an example: YSM = product series (medium/low-temperature refrigeration, semi-hermetic); 260 = nominal capacity code at 50Hz rated conditions (×100W); A = refrigerant code (A = R22, E = R404A); 1 = voltage/frequency code (3-phase, 380–420V/50Hz); G = configuration code (with sight glass, brazed suction/discharge fittings); trailing digits = engineering revision code.

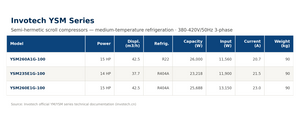

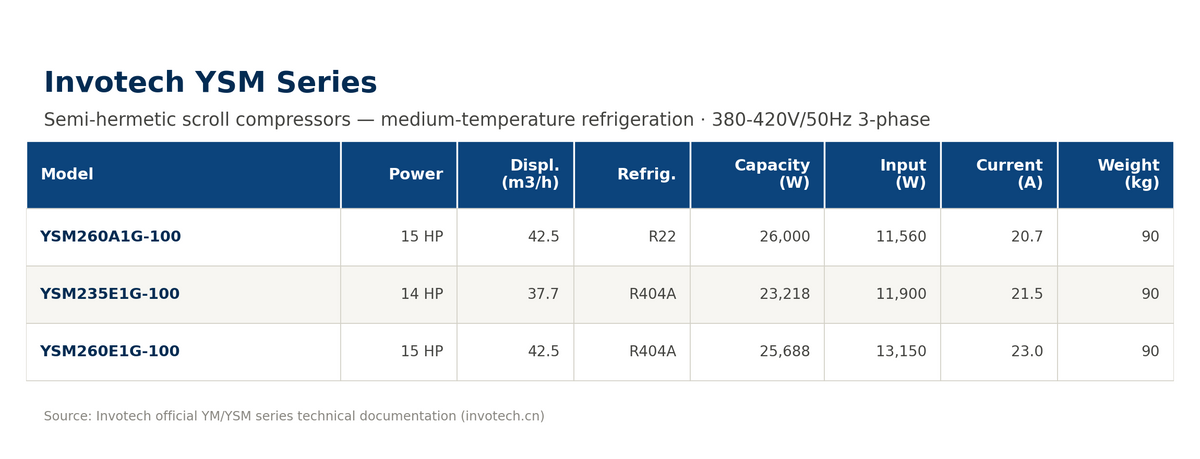

Available Models
| Model | Nominal Power | Displacement (m³/h) | Refrigerant | Rated Capacity (W) | Power Input (W) | Running Current (A) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|
| YSM260A1G-100 | 15 HP | 42.5 | R22 | 26,000 | 11,560 | 20.7 | 90 |
| YSM235E1G-100 | 14 HP | 37.7 | R404A | 23,218 | 11,900 | 21.5 | 90 |
| YSM260E1G-100 | 15 HP | 42.5 | R404A | 25,688 | 13,150 | 23.0 | 90 |
Application Notes
Rated conditions above: 3-phase 380–420V/50Hz supply, standard medium-temperature refrigeration test envelope. R22 models suit legacy systems and retrofit replacement; R404A models suit new installations. Both configurations ship with a sight glass and brazed suction/discharge connections as standard (G configuration). Data compiled from Invotech's official YM/YSM series technical documentation.
