HENGSEN Fin Combs for HVAC Coils | CH-531 & CH-532
Description
Product Overview
Maintain coil fins with HENGSEN manual fin combs for refrigeration and air-conditioning service. These handheld tools help straighten bent fins and clear light debris from compatible condenser and evaporator coils.
Choose the CH-531 plastic comb with six fin-spacing options, or the CH-532 aluminum version with a straight comb design. Both models are manually operated and require no electrical supply.
Key Features
- Two model options: Select the plastic CH-531 or aluminum CH-532 to suit your maintenance requirements.
- Six spacing options on CH-531: One comb wheel accommodates 8, 9, 10, 12, 14 and 15 fins per inch.
- Straight comb design on CH-532: A handheld alternative for compatible coil fins; confirm fin spacing before ordering.
- Manual control: Work along the fins with light, controlled pressure.
- Coil maintenance tool: Helps open passages obstructed by bent fins and remove light surface debris.

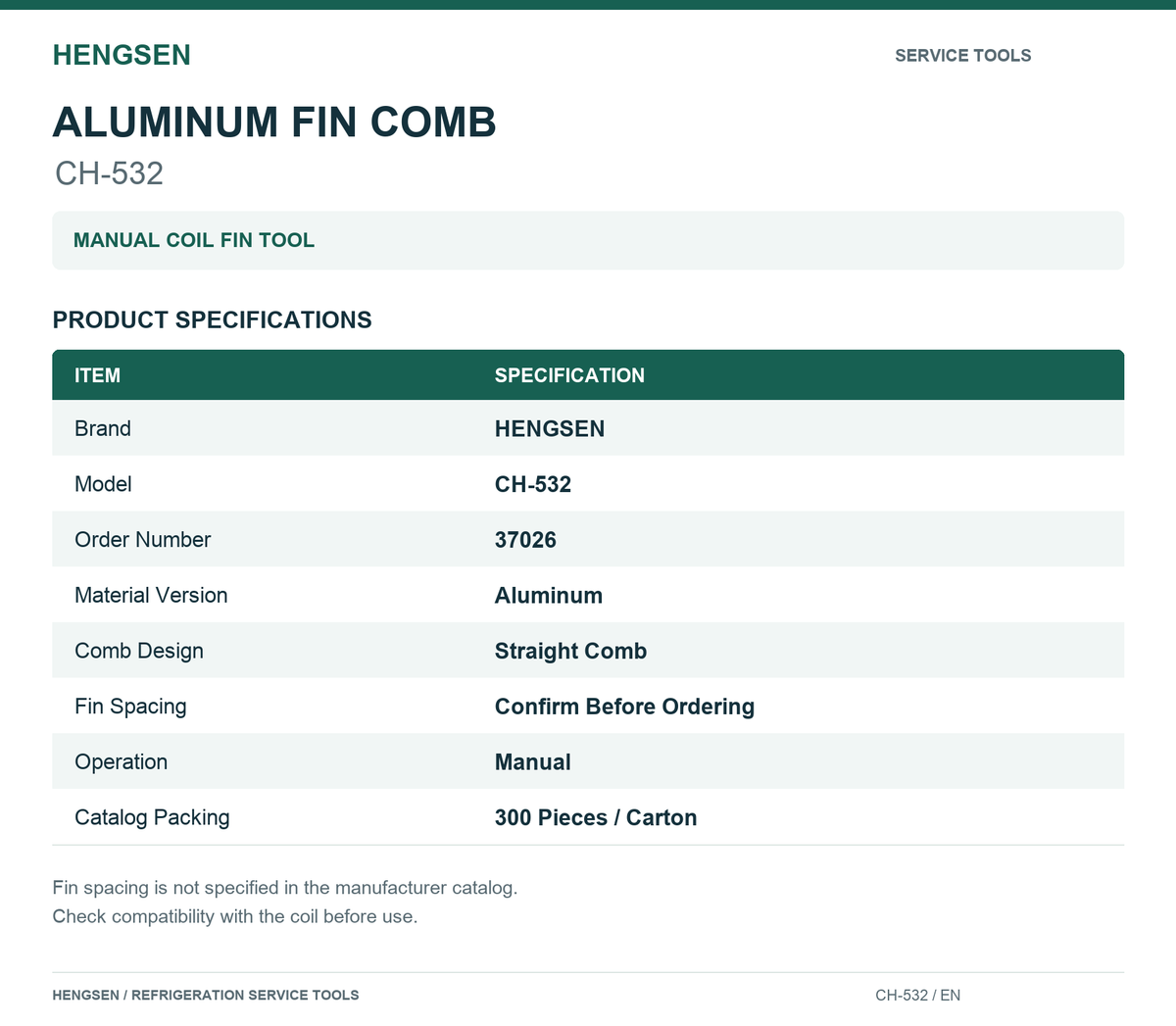

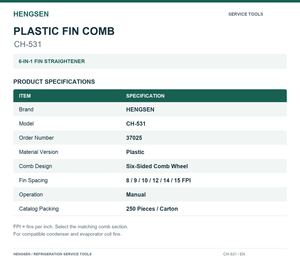

Technical Specifications
| Item | CH-531 | CH-532 |
|---|---|---|
| Brand | HENGSEN | HENGSEN |
| Product Type | Plastic Fin Comb | Aluminum Fin Comb |
| Manufacturer Order Number | 37025 | 37026 |
| Material Version | Plastic | Aluminum |
| Comb Design | Six-sided comb wheel | Straight comb |
| Fin Spacing | 8 / 9 / 10 / 12 / 14 / 15 FPI | Confirm before ordering |
| Operation | Manual | Manual |
| Intended Application | Compatible condenser and evaporator coil fins | Compatible condenser and evaporator coil fins |
| Catalog Packing | 250 pieces/carton | 300 pieces/carton |
FPI means fins per inch. The six listed spacing options apply to CH-531 only. Carton quantities are manufacturer catalog references, not minimum order quantities.
Choosing Your Model
CH-531 — Plastic Fin Comb
Choose this model when the coil fin spacing matches one of its six labeled comb sections. The wheel combines several spacing options in one tool, making it useful when servicing coils with different fin densities.

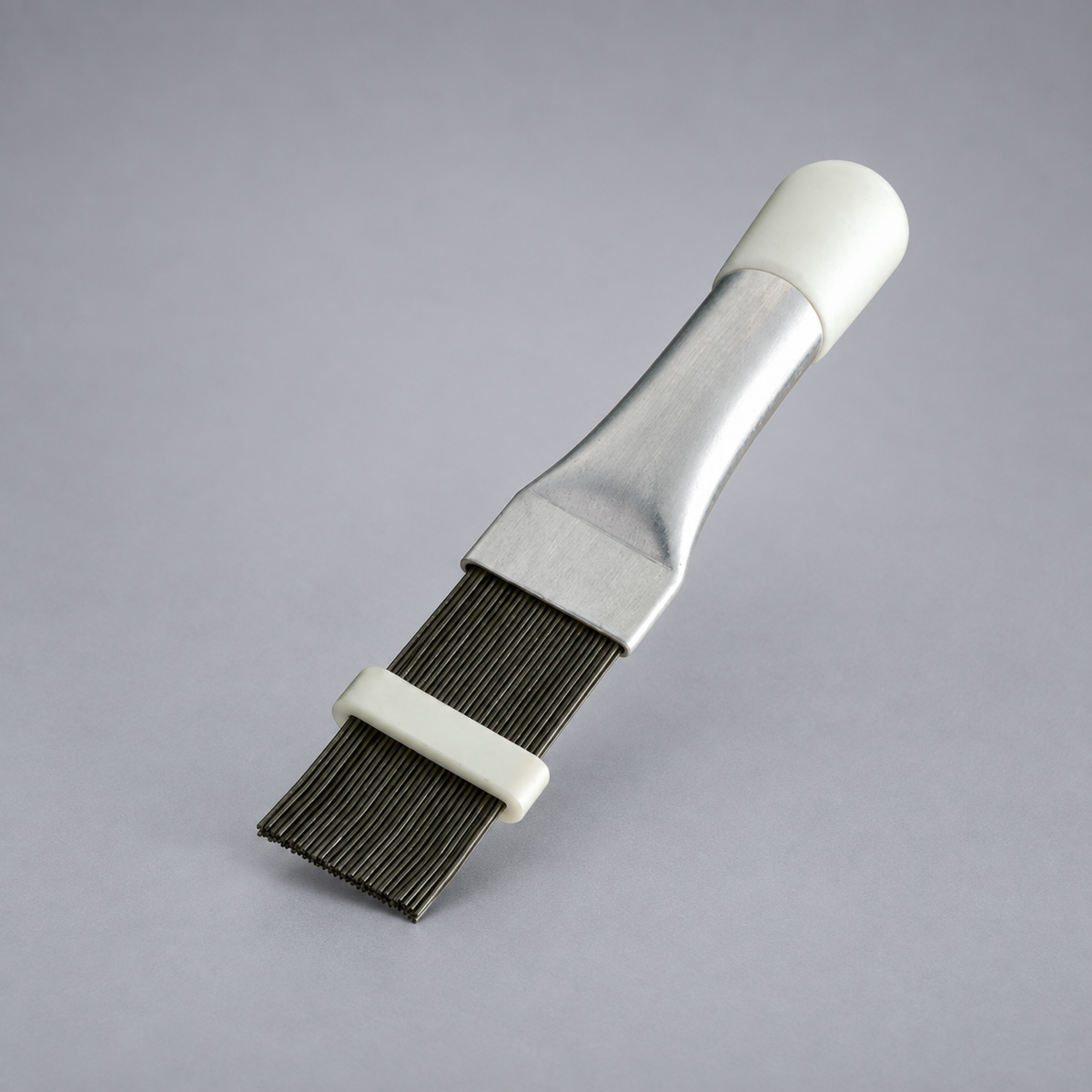

CH-532 — Aluminum Fin Comb
Choose this model if you prefer a straight comb design and have confirmed compatibility with the coil. The manufacturer catalog does not specify its FPI range, so it should not be assumed to share the CH-531 spacing options.
Applications
- Air-conditioning condenser and evaporator coil maintenance.
- Refrigeration coil fin straightening.
- Removal of light debris between compatible fins.
- Routine servicing of accessible finned heat exchangers.
Use & Care
Switch off and isolate the equipment before working on the coil. Match the comb to the fin spacing, start at an undamaged section and guide the tool gently along the fins. Avoid forcing the teeth into an incompatible fin pattern or against refrigerant tubes. Clean and dry the tool after use.
Request a Quote
Send your preferred model, quantity and delivery destination. Include the coil fin spacing if you need help checking which option to order.
| Model |
CH-531 - Plastic, CH-532 - Aluminum |
|---|
