Description

Product Overview

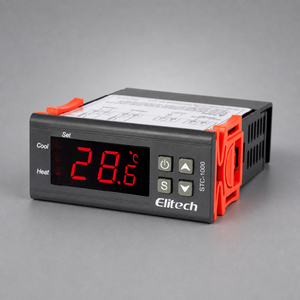

The Elitech STC-1000 Series consists of compact digital temperature controllers designed for automatic cooling and heating control.

Separate cooling and heating relay outputs allow the controller to switch connected refrigeration or heating equipment according to the configured temperature setpoints. The series is suitable for refrigeration cabinets, incubators, fermentation equipment, aquariums and other general temperature-control applications.

Key Features

• Automatic cooling and heating control
• Separate cooling and heating relay outputs
• Digital temperature display
• Adjustable cooling and heating setpoints
• Compressor start-delay protection
• Temperature calibration
• High- and low-temperature alarm functions
• Sensor-fault alarm
• Compact panel-mount design
• Celsius and Fahrenheit display on applicable variants
• Different voltage versions available

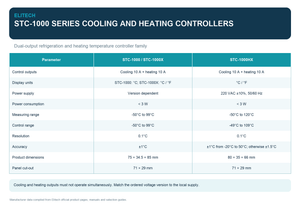

Model Comparison

STC-1000

• Cooling output: 10 A
• Heating output: 10 A
• Standard Celsius display

STC-1000X

• Cooling output: 10 A
• Heating output: 10 A
• Celsius and Fahrenheit display

STC-1000HX

• Updated cooling and heating controller
• Cooling output: 10 A
• Heating output: 10 A
• Available in different voltage configurations

STC-1000HX Technical Specifications

• Power supply: 220 VAC ±10%, 50/60 Hz
• Power consumption: Less than 3 W
• Measuring range: −50°C to 120°C
• Control range: −49°C to 109°C
• Resolution: 0.1°C
• Accuracy: ±1°C from −20°C to 50°C
• Accuracy outside the above range: ±1.5°C
• Product dimensions: 80 × 35 × 66 mm
• Panel cutout: 71 × 29 mm
• Cooling relay: 10 A
• Heating relay: 10 A

Applications

• Refrigerators and freezers
• Aquariums and seafood tanks
• Fermentation equipment
• Incubators
• Greenhouses
• Heating systems
• Small cold rooms
• General temperature-control equipment

Important Notice

Confirm the controller power supply and wiring diagram before ordering. Controllers with different voltage configurations are not directly interchangeable.
