Magic Control MGP830 Series Dual Pressure Controllers
Product Description
The Magic Control MGP830 Series combines high- and low-pressure control in one mechanical controller for commercial refrigeration and air-conditioning systems. It monitors suction and discharge pressure and switches the electrical control circuit when the selected pressure limits are reached.
The controller can be used for compressor protection, pressure cycling and condenser-fan control. Three reset configurations are available, allowing the controller to match different operating and safety requirements. The standard pressure element uses copper bellows and is intended for fluorinated refrigerants and other compatible, non-corrosive media.
Key Features
- Combined high- and low-pressure control
- Low-pressure adjustment range: -0.5 to 6 bar
- High-pressure adjustment range: 8 to 30 bar
- Automatic and manual-reset options
- SPDT switching contacts
- 1/4 in pressure connections with imperial-thread nuts
- Electrical rating: 15 A at 125 VAC / 8 A at 250 VAC
- IP40 enclosure protection
- Suitable for refrigeration and air-conditioning systems

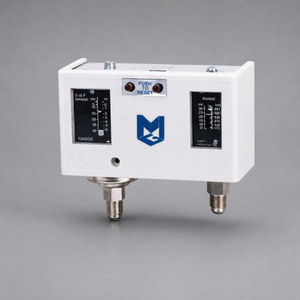

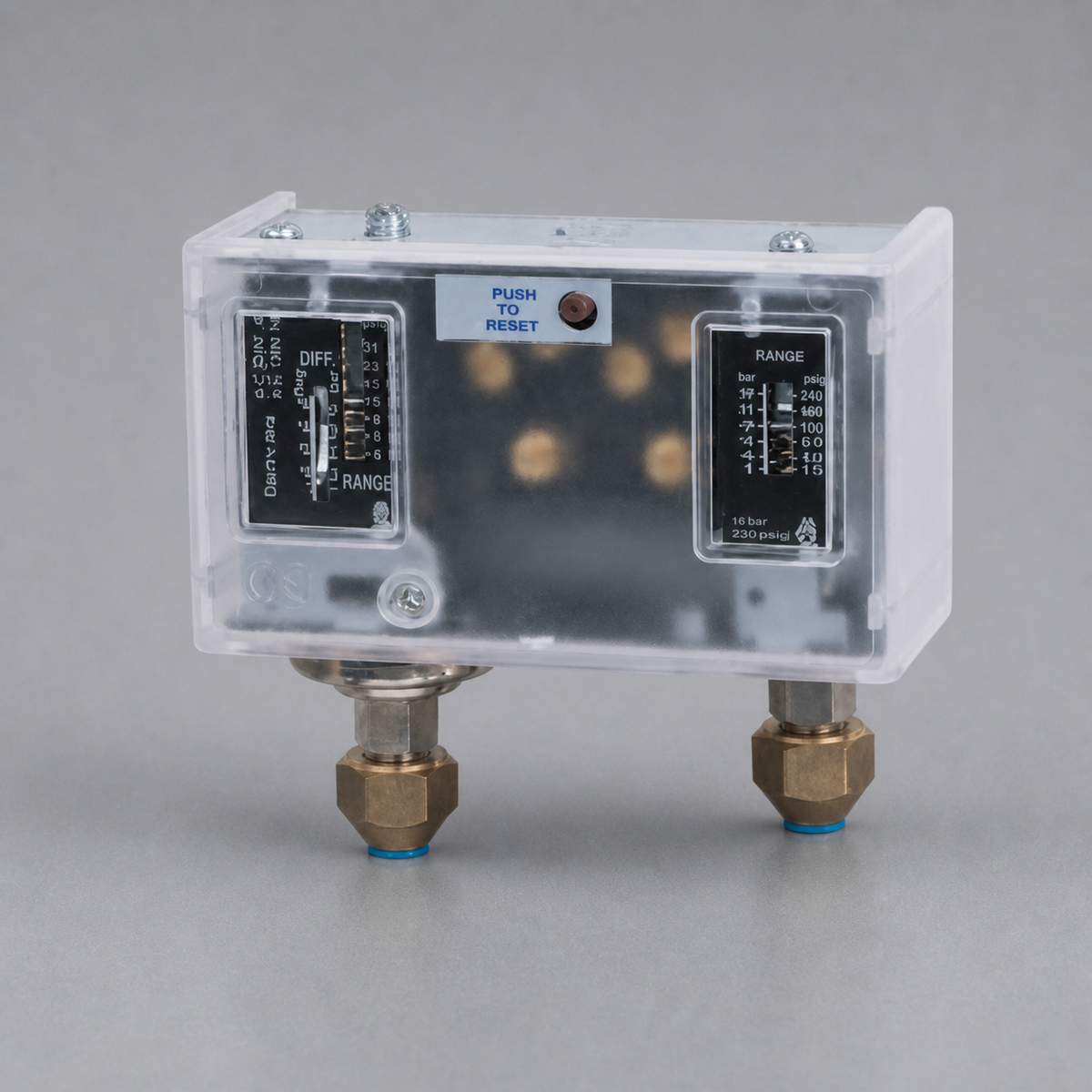

Model Options
| Model | High-Pressure Reset | Low-Pressure Reset |
|---|---|---|

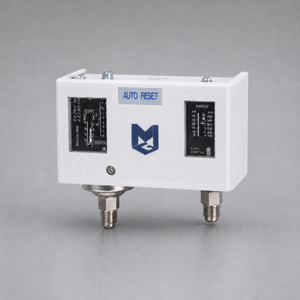

| MGP830E | Automatic | Automatic |
| MGP830HME | Manual | Automatic |
| MGP830HLME | Manual | Manual |
All three models use:
- Low-pressure range: -0.5 to 6 bar
- High-pressure range: 8 to 30 bar
- 1/4 in imperial-thread connections with nuts

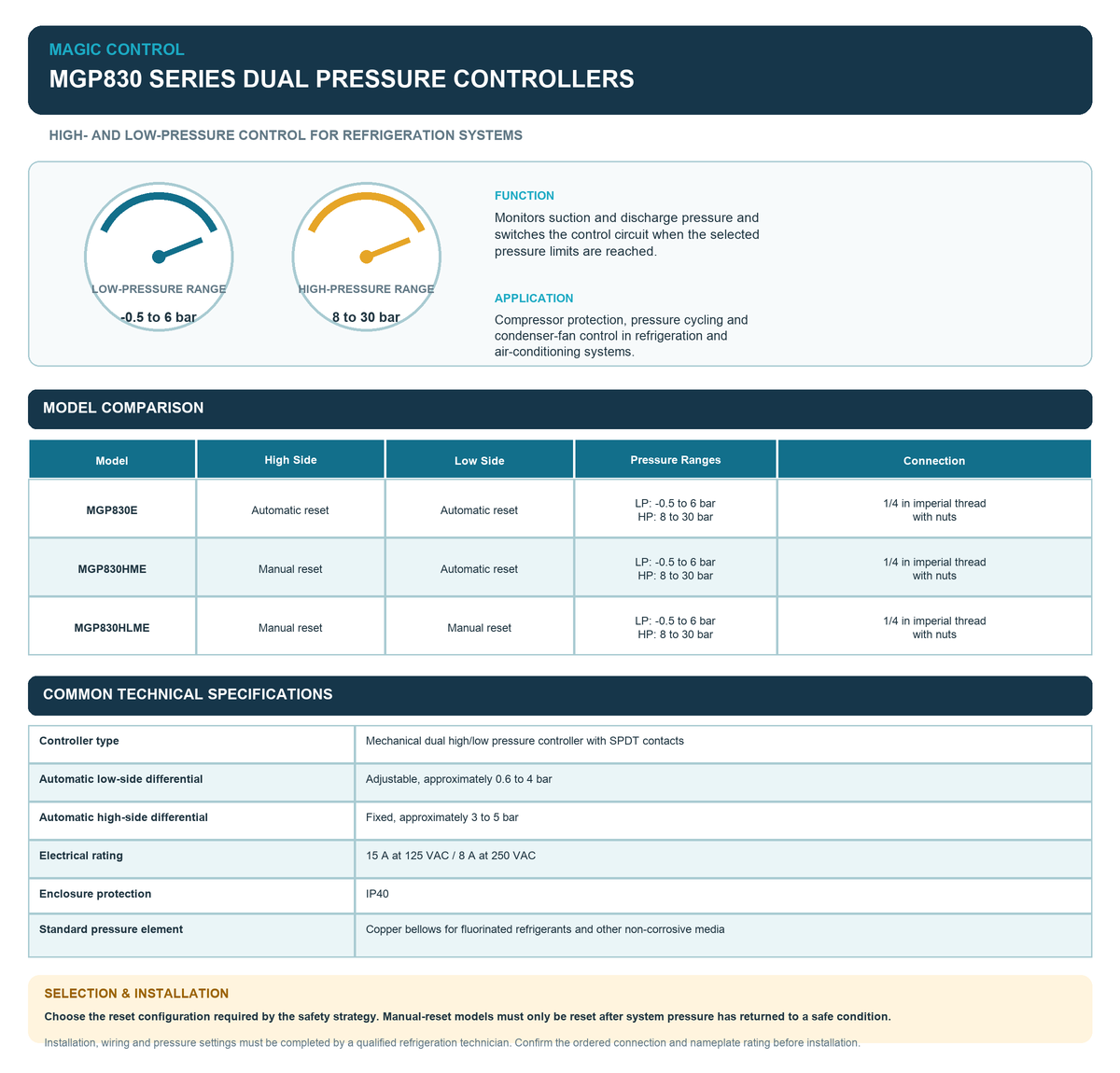

Technical Specifications
| Item | Specification |
|---|---|
| Controller type | Mechanical dual high/low pressure controller |
| Contact arrangement | SPDT |
| Low-pressure range | -0.5 to 6 bar |
| High-pressure range | 8 to 30 bar |
| Automatic low-side differential | Adjustable, approximately 0.6 to 4 bar |
| Automatic high-side differential | Fixed, approximately 3 to 5 bar |
| Electrical rating | 15 A at 125 VAC / 8 A at 250 VAC |
| Enclosure protection | IP40 |
| Pressure element | Copper bellows |
| Compatible media | Fluorinated refrigerants and compatible non-corrosive media |
| Model |
MGP830E, MGP830HME, MGP830HLME |
|---|
