PRODUCT DESCRIPTION

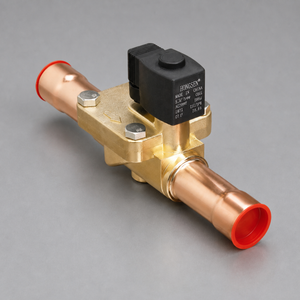

The HONGSEN HV Series consists of refrigeration solenoid valves designed for one-way flow control in liquid, suction-gas and hot-gas lines used in refrigeration, cold-storage and air-conditioning systems.

The series includes direct-operated and servo-operated designs. HV3 models are direct-operated and can open with zero pressure differential, while HV8 and larger models use a servo-operated structure and require the specified minimum pressure differential.

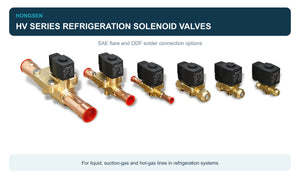

SAE flare and ODF solder connection versions are available. Models ending in T identify the ODF solder version. Valve assemblies can be supplied complete with a coil, while valve bodies and compatible coils may also be ordered separately.

Our currently listed valve assemblies are supplied with an AC 220 V coil. Confirm the model, connection size, refrigerant, operating conditions and required coil voltage before ordering.

KEY FEATURES

• Designed for refrigeration and air-conditioning systems
• Suitable for liquid, suction-gas and hot-gas lines
• One-way on/off flow control
• Direct-operated HV3 models
• Servo-operated HV8, HV10, HV15, HV20, HV25 and HV32 models
• SAE flare and ODF solder connection options
• Maximum working pressure up to 45 bar
• Liquid-line MOPD up to 31 bar
• Compatible with HCFC and HFC refrigerants specified by the customer
• Valve bodies and coils can be supplied separately
• Different coil voltages available
• Standard three-wire insert-type coil connector

TECHNICAL SPECIFICATIONS

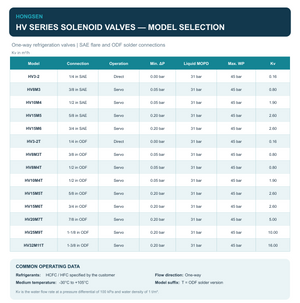

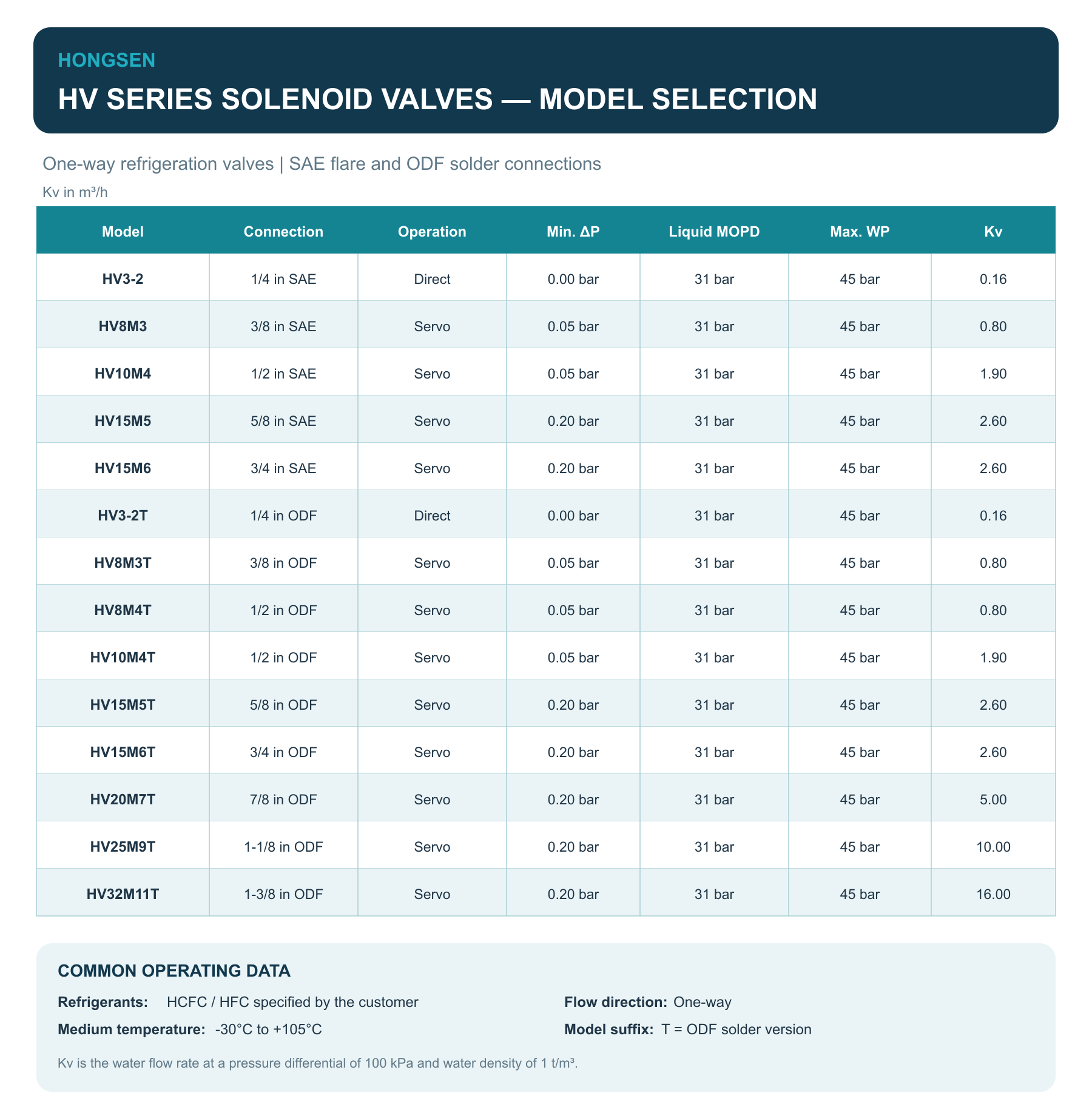

CONFIRMED MODEL SELECTION

Kv definition: Water flow in m³/h at a pressure differential of 100 kPa and water density of 1 t/m³.

MODEL NOTES

• Models without the T suffix use SAE flare connections.
• Models ending in T use ODF solder connections.
• HV3 models are direct-operated.
• HV8 and larger models are servo-operated.
• The two 1/2-inch ODF models are not duplicates:
  • HV8M4T: Kv 0.80 m³/h
  • HV10M4T: Kv 1.90 m³/h
• Final valve sizing must be based on refrigerant, line function, capacity, temperature and pressure conditions.

APPLICATIONS

• Walk-in coolers and freezer rooms
• Commercial refrigeration systems
• Cold-storage equipment
• Refrigerated warehouses
• Condensing units
• Liquid refrigerant lines
• Suction-gas lines
• Hot-gas lines
• Air-conditioning equipment

ORDERING INFORMATION

Please provide:

• Required model or connection size
• SAE flare or ODF solder connection
• Refrigerant
• Liquid, suction-gas or hot-gas application
• Required coil voltage and frequency
• Operating pressure and temperature
• Required quantity
