Bsonyo R22 Scroll Compressors 3–12 HP for HVAC and Refrigeration
Product Description

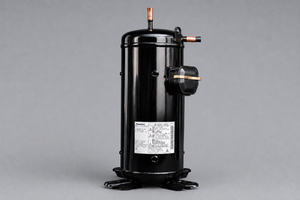

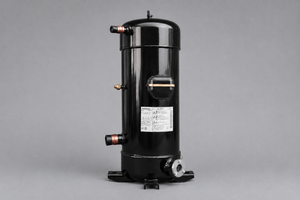

Bsonyo R22 Scroll Compressors
This listing covers our available Bsonyo R22 hermetic scroll compressor models with nominal outputs ranging from 3.1 HP to 12 HP.
The available range includes single-phase 220–240 V models and three-phase 380–415 V models. Selected models are intended for high-back-pressure and commercial air-conditioning applications, while the Q-suffix models are available for compatible low-temperature refrigeration applications.
Each compressor must be selected according to its complete model number, electrical supply, refrigerant, application and operating conditions.
Key Features
- Hermetic scroll compressor construction
- Designed for R22 refrigerant
- Nominal output range from 3.1 HP to 12 HP
- Single-phase and three-phase models available
- 220–240 V and 380–415 V versions available
- Models for commercial HVAC and compatible refrigeration systems
- High-back-pressure and low-temperature model options
- Multiple C-SB, C-SBR, C-SC and C-SCR series models available
- Model confirmation service available before ordering
Typical Applications
Depending on the selected model:
- Commercial air-conditioning systems
- Packaged air-conditioning equipment
- Air-cooled condensing units
- Medium-temperature refrigeration systems
- Low-temperature refrigeration systems
- Cold-room refrigeration equipment
- Replacement of compatible Sanyo or Panasonic legacy models
Application suitability must be confirmed against the model-specific operating envelope.
Available Models
| Model | Nominal Output | Power Supply | Refrigerant | Application Group |
|---|---|---|---|---|

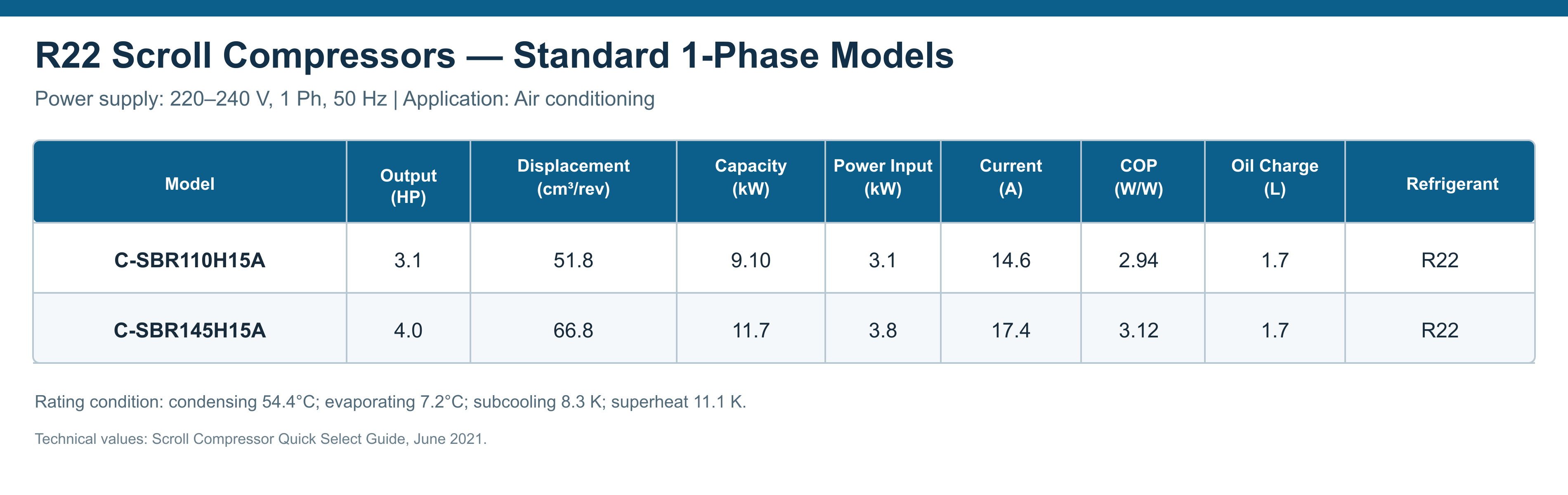

| C-SBR110H15A | 3.1 HP | 220–240 V, 1 PH, 50 Hz | R22 | High back pressure |

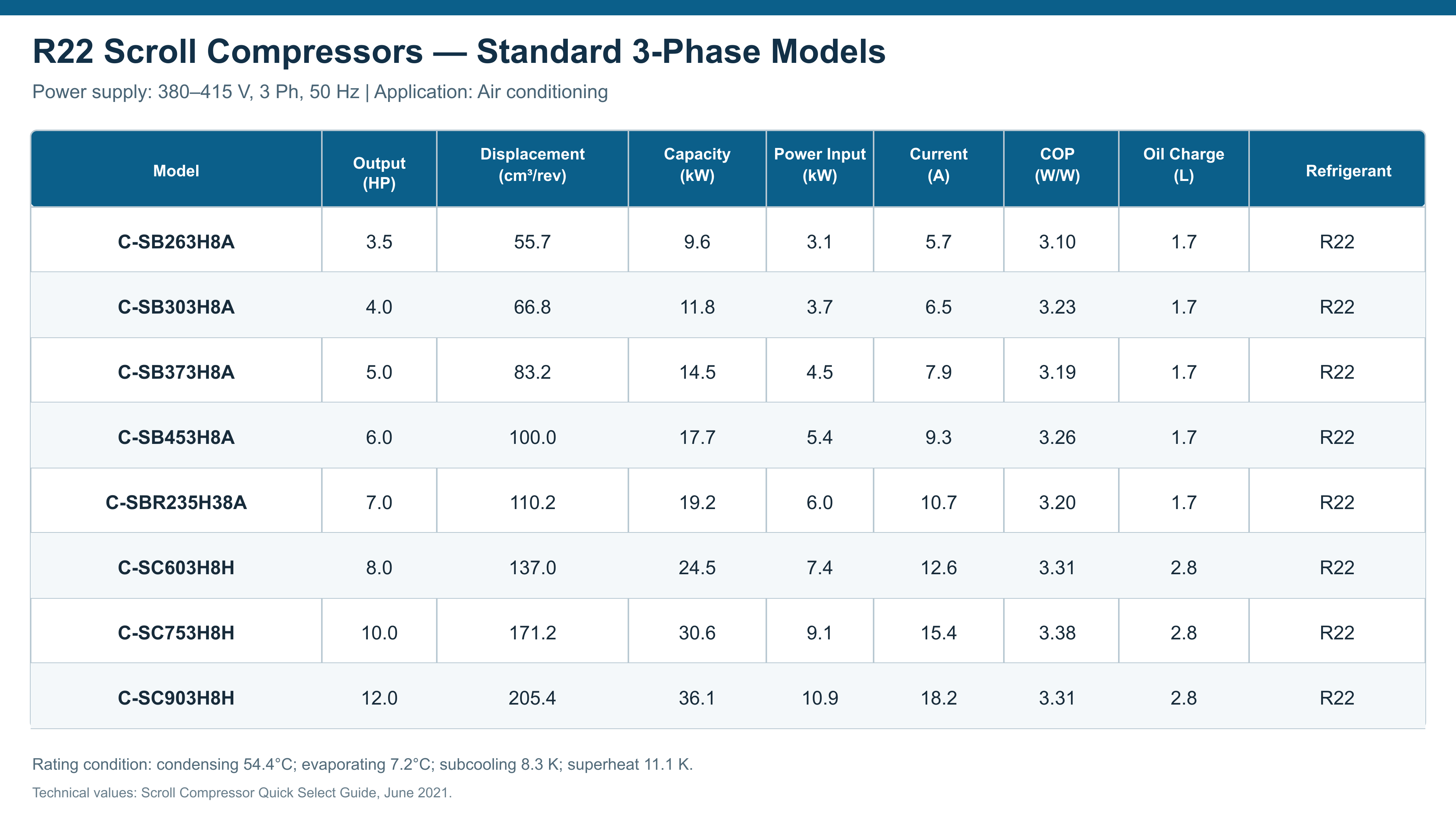

| C-SB263H8A | 3.5 HP | 380–415 V, 3 PH, 50 Hz | R22 | High back pressure |
| C-SBR145H15A | 4 HP | 220–240 V, 1 PH, 50 Hz | R22 | High back pressure |
| C-SB303H8A | 4 HP | 380–415 V, 3 PH, 50 Hz | R22 | High back pressure |
| C-SB373H8A | 5 HP | 380–415 V, 3 PH, 50 Hz | R22 | High back pressure |
| C-SB453H8A | 6 HP | 380–415 V, 3 PH, 50 Hz | R22 | High back pressure |
| C-SBR235H38A | 7 HP | 380–415 V, 3 PH, 50 Hz | R22 | High back pressure |
| C-SC603H8H | 8 HP | 380–415 V, 3 PH, 50 Hz | R22 | High back pressure |
| C-SC753H8H | 10 HP | 380–415 V, 3 PH, 50 Hz | R22 | High back pressure |
| C-SC903H8H | 12 HP | 380–415 V, 3 PH, 50 Hz | R22 | High back pressure |

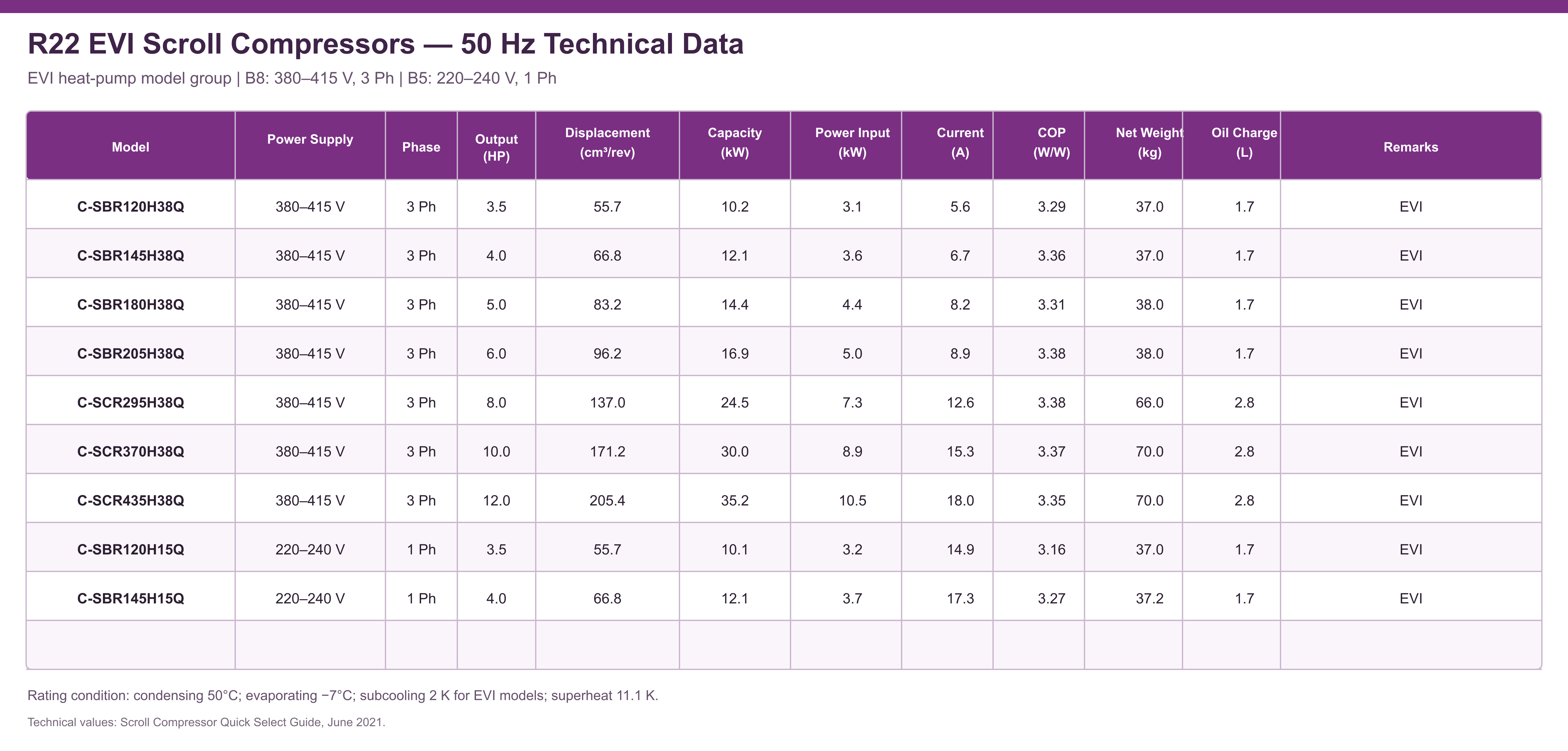

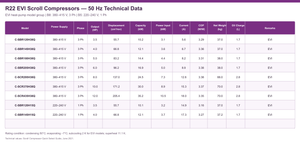

| C-SBR120H15Q | 3.5 HP | 220–240 V, 1 PH, 50 Hz | R22 | Low temperature |
| C-SBR120H38Q | 3.5 HP | 380–415 V, 3 PH, 50 Hz | R22 | Low temperature |
| C-SBR145H15Q | 4 HP | 220–240 V, 1 PH, 50 Hz | R22 | Low temperature |
| C-SBR145H38Q | 4 HP | 380–415 V, 3 PH, 50 Hz | R22 | Low temperature |
| C-SBR180H38Q | 5 HP | 380–415 V, 3 PH, 50 Hz | R22 | Low temperature |
| C-SBR205H38Q | 6 HP | 380–415 V, 3 PH, 50 Hz | R22 | Low temperature |
| C-SCR295H38Q | 8 HP | 380–415 V, 3 PH, 50 Hz | R22 | Low temperature |
| C-SCR370H38Q | 10 HP | 380–415 V, 3 PH, 50 Hz | R22 | Low temperature |
| C-SCR435H38Q | 12 HP | 380–415 V, 3 PH, 50 Hz | R22 | Low temperature |
Model Selection Notice
Do not select a compressor based only on horsepower.
Before ordering, please confirm:
- Complete compressor model number
- Refrigerant
- Voltage
- Phase
- Frequency
- Application type
- Evaporating temperature
- Condensing temperature
- Required cooling capacity
- Existing compressor nameplate
- Suction and discharge connection requirements
For replacement orders, please send us a clear photo of the original compressor nameplate.
Important Installation Notice
Installation and commissioning must be performed by qualified refrigeration or HVAC personnel.
The system design must provide suitable:
- High- and low-pressure protection
- Motor and phase protection
- Correct refrigerant charge
- Proper oil return
- System evacuation
- Electrical protection
- Suction superheat control
- Discharge-temperature protection
Operating conditions outside the approved envelope may damage the compressor.
| Model |
C-SBR110H15A - 3.1 HP, C-SB263H8A - 3.5 HP, C-SBR145H15A - 4 HP, C-SB303H8A - 4 HP, C-SB373H8A - 5 HP, C-SB453H8A - 6 HP, C-SBR235H38A - 7 HP, C-SC603H8H - 8 HP, C-SC753H8H - 10 HP, C-SC903H8H - 12 HP, C-SBR120H15Q - 3.5 HP, C-SBR120H38Q - 3.5 HP, C-SBR145H15Q - 4 HP, C-SBR145H38Q - 4 HP, C-SBR180H38Q - 5 HP, C-SBR205H38Q - 6 HP, C-SCR295H38Q - 8 HP, C-SCR370H38Q - 10 HP, C-SCR435H38Q - 12 HP |
|---|
