Elitech ECB-5060X Intelligent Cold Room Electrical Control Box
Product Description

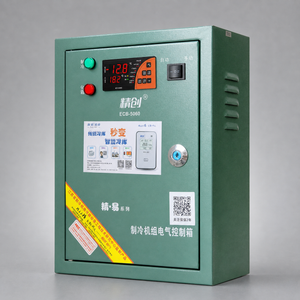

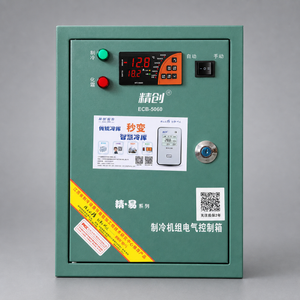

The Elitech ECB-5060X Series is an intelligent electrical control system developed for medium- and low-temperature cold rooms.
It integrates temperature display, current display, refrigeration control and defrost control in one enclosure. Dual temperature-sensor inputs support cold-room temperature and defrost control, while the multiple status indicators provide clear information about system operation.
The ECB-5060X also includes an RS485 communication interface for connection to compatible monitoring or management systems.
Key Features
- Dual temperature display
- Refrigeration and defrost control
- Dual temperature-sensor inputs
- Compressor current display
- RS485 communication interface
- Phase-sequence protection
- Phase-loss protection
- Compressor overload protection
- Temperature calibration
- High-temperature alarm
- Sensor-failure alarm
- Temperature over-range alarm
- Multiple operating-status indicators
- Suitable for medium- and low-temperature cold rooms
Variants
- ECB-5060 – 5 HP, 220 V
- ECB-5060X – 5 HP
- ECB-5060X – 10 HP
- ECB-5060X – 15 HP
- ECB-5060X – 20 HP
- ECB-5060X – 25 HP
- ECB-5060X – 30 HP
Applications
- Walk-in coolers
- Freezer rooms
- Food cold storage
- Seafood and meat freezers
- Refrigerated warehouses
- Commercial refrigeration systems
- Cold rooms requiring RS485 communication
| Model |
ECB-5060 – 5 HP - 220V, ECB-5060X – 5 HP, ECB-5060X – 10 HP, ECB-5060X – 15 HP, ECB-5060X – 20 HP, ECB-5060X – 25 HP, ECB-5060X – 30 HP |
|---|
