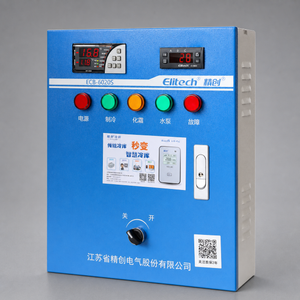

Elitech ECB-6020S WiFi / 4G IoT Refrigeration Electrical Control Cabinet
Product Description
The Elitech ECB-6020S is an IoT-enabled refrigeration electrical control cabinet designed for medium- and low-temperature cold rooms and quick-freezing applications.
It integrates temperature measurement, display and control with coordinated outputs for the refrigeration compressor, defrost system, evaporator fan, water pump and alarm. The dual-temperature display provides clear access to the current cold-room temperature and setpoint, while multiple status indicators make system operation easy to monitor.
WiFi and 4G versions allow authorized users to remotely view and modify operating parameters through a PC or mobile application. Temperature data can be recorded and stored in real time, supporting centralized monitoring of multiple cold rooms.
The cabinet also provides comprehensive compressor and three-phase motor protection, making it suitable for commercial and industrial refrigeration installations.
Key Features
- Integrated cold-room temperature control
- Refrigeration compressor control
- Defrost output control
- Evaporator fan control
- Water-pump control
- Alarm output
- Dual-temperature display
- WiFi or 4G remote monitoring
- Remote parameter viewing and adjustment
- Real-time temperature recording and storage
- High- and low-pressure compressor protection
- Phase-loss and phase-sequence protection
- Overload and three-phase imbalance protection
- Sensor fault and temperature-limit alarms

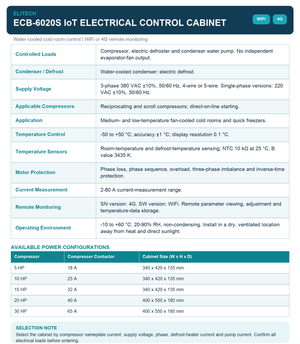

Technical Specifications
| Item | Specification |
|---|---|
| Brand | Elitech |
| Manufacturer | Jiangsu Jingchuang Electric Co., Ltd. |
| Series | ECB-6000 Series |
| Model | ECB-6020S |
| Product Type | IoT Refrigeration Electrical Control Cabinet |
| Controlled Loads | Compressor, defrost, evaporator fan, water pump and alarm |
| Applications | Medium- and low-temperature cold rooms and quick freezers |
| Network Options | WiFi or 4G |
| Remote Functions | Parameter viewing, parameter adjustment, temperature recording and centralized monitoring |
| Alarm Functions | High/low temperature, sensor fault and measuring-range alarms |
| Compressor Protection | High pressure, low pressure, module and overload protection |
| Three-Phase Protection | Phase loss, phase sequence, phase imbalance and inverse-time protection |
| Available Power Ratings | 5 HP, 10 HP, 15 HP, 20 HP and 30 HP |
| Supply Voltage | Must be selected according to the compressor and local power system |
Available Variants
Network Option
- WiFi
- 4G
Compressor Power
- 5 HP
- 10 HP
- 15 HP
- 20 HP
- 30 HP
SKU List
- ECB-6020S-WiFi (5HP)
- ECB-6020S-WiFi (10HP)
- ECB-6020S-WiFi (15HP)
- ECB-6020S-WiFi (20HP)
- ECB-6020S-WiFi (30HP)
- ECB-6020S-4G (5HP)
- ECB-6020S-4G (10HP)
- ECB-6020S-4G (15HP)
- ECB-6020S-4G (20HP)
- ECB-6020S-4G (30HP)
Selection Information Required
Please provide the following before ordering:
- Compressor model
- Compressor rated power and rated current
- Supply voltage, phase and frequency
- Cold-room operating temperature
- Defrost method and heater power
- Evaporator fan power
- Water-pump power
- Required network connection: WiFi or 4G
| Network |
WiFi, 4G |
|---|---|
| Power |
5 HP, 10 HP, 15 HP, 20 HP, 30 HP |
