Frascold FVR-L Low-Temperature Semi-Hermetic Screw Compressors
PRODUCT DESCRIPTION

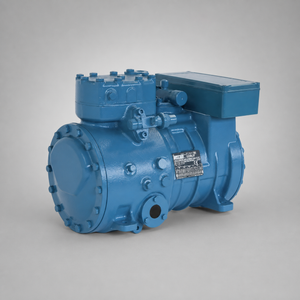

The Frascold FVR-L Series comprises semi-hermetic screw compressors designed for low-temperature commercial and industrial refrigeration applications.
The series combines compact construction, low sound levels and reliable operation with high refrigeration efficiency. FVR-L compressors are suitable for variable-frequency operation and can be installed individually or in parallel compressor systems.
The listed models cover nominal motor sizes from 30 HP to 160 HP and nominal displacements from 120 to 540 m³/h at 50 Hz. Final compressor selection must be based on refrigerant, evaporating temperature, condensing temperature, required cooling capacity, power supply and operating conditions.
KEY FEATURES
-
Semi-hermetic screw compressor design
-
Developed for low-temperature refrigeration
-
Compact construction for easier system integration
-
Suitable for variable-frequency drive operation
-
Reduced starting current with part-winding start
-
Stepped capacity control
-
Unloaded starting function
-
Integrated oil management system
-
Motor and discharge-temperature protection
-
Universal connections for flexible installation
-
Suitable for individual or parallel operation
-
Compatible with multiple refrigerant families, subject to model approval
-
High efficiency and reliable continuous operation
AVAILABLE MODELS
| Model | Motor Power | Nominal Displacement at 50 Hz | Available Capacity Steps |
|---|---|---|---|
| FVR-L-30-120 | 30 HP / 22.4 kW | 120 m³/h | 100%, 75% |

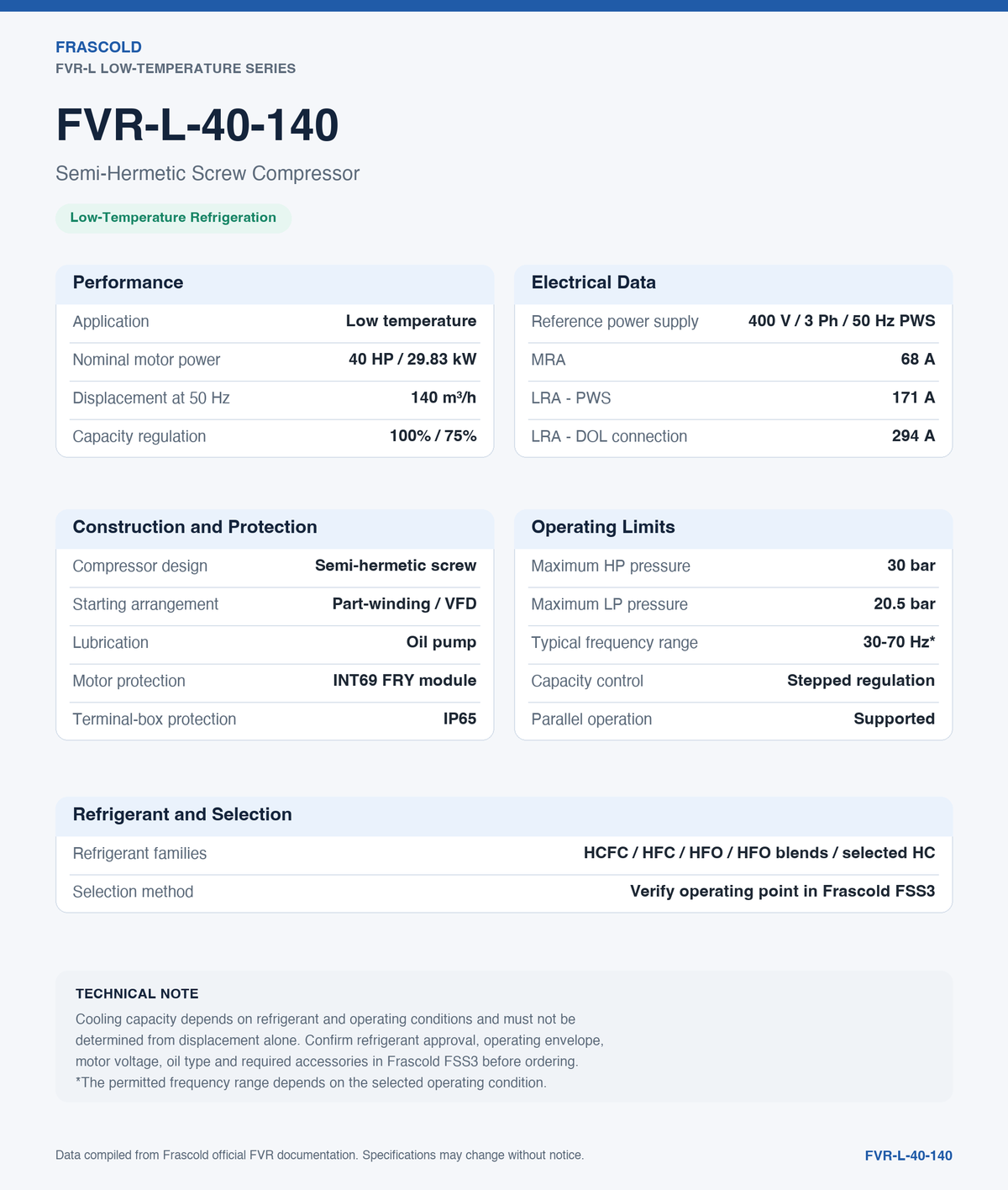

| FVR-L-40-140 | 40 HP / 29.8 kW | 140 m³/h | 100%, 75% |
| FVR-L-50-160 | 50 HP / 37.3 kW | 160 m³/h | 100%, 75% |

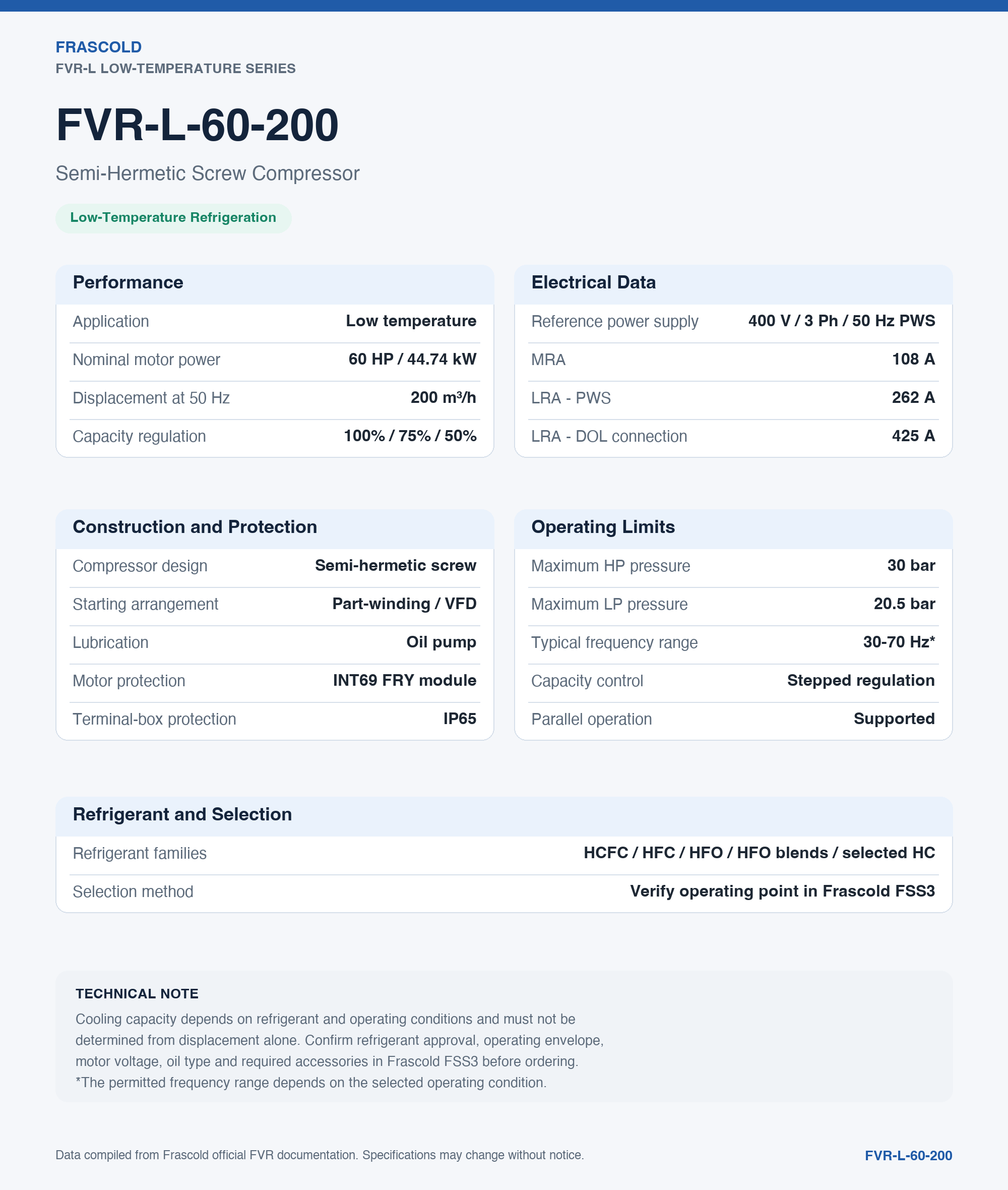

| FVR-L-60-200 | 60 HP / 44.7 kW | 200 m³/h | 100%, 75%, 50% |

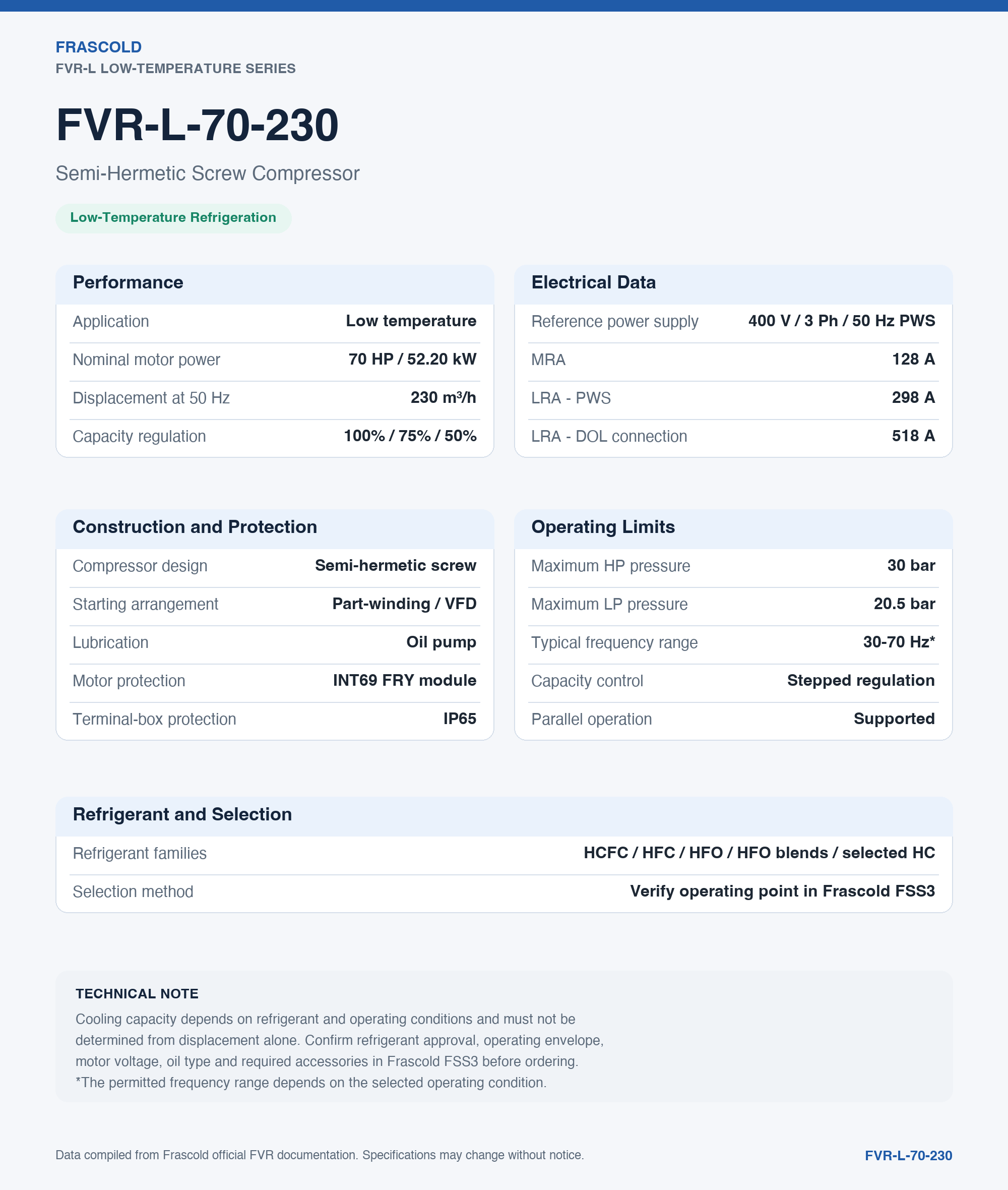

| FVR-L-70-230 | 70 HP / 52.2 kW | 230 m³/h | 100%, 75%, 50% |

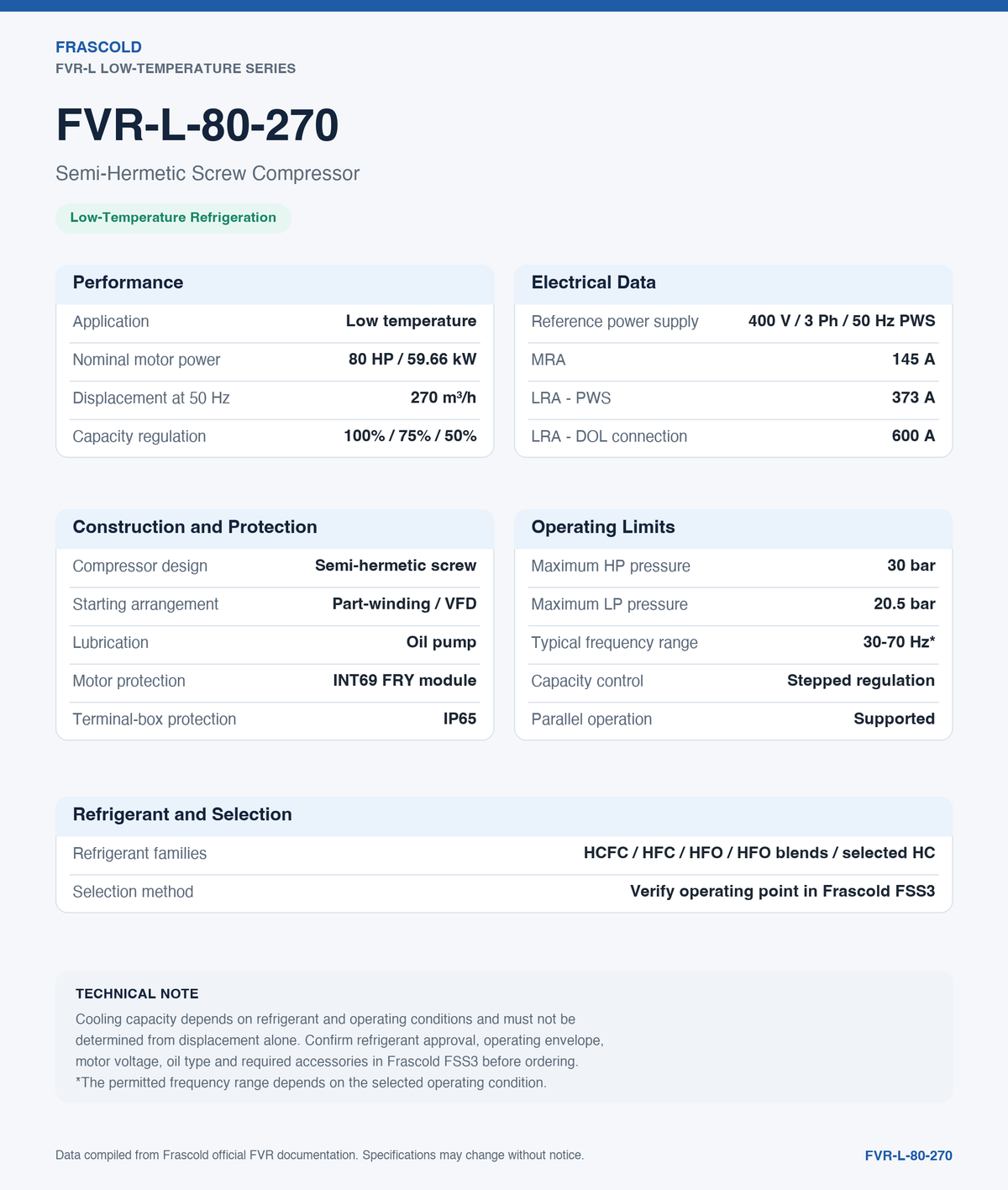

| FVR-L-80-270 | 80 HP / 59.7 kW | 270 m³/h | 100%, 75%, 50% |
| FVR-L-90-300 | 90 HP / 67.1 kW | 300 m³/h | 100%, 75%, 50% |
| FVR-L-100-350 | 100 HP / 74.6 kW | 350 m³/h | 100%, 75%, 50% |

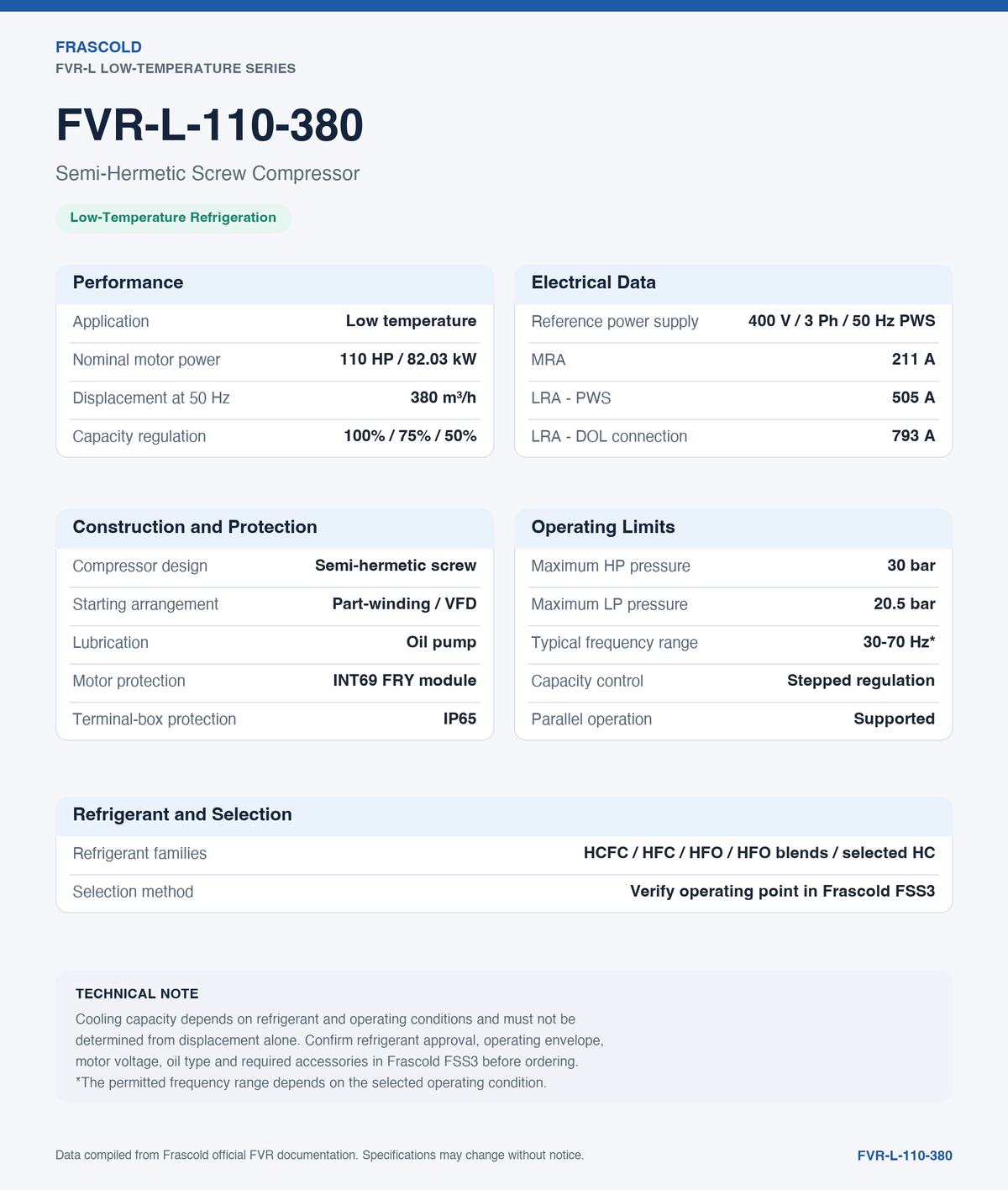

| FVR-L-110-380 | 110 HP / 82.0 kW | 380 m³/h | 100%, 75%, 50% |
| FVR-L-125-430 | 125 HP / 93.2 kW | 430 m³/h | 100%, 75%, 50% |
| FVR-L-160-540 | 160 HP / 119.3 kW | 540 m³/h | 100%, 75%, 50% |
GENERAL TECHNICAL DATA
| Item | Specification |
| Compressor Type | Semi-hermetic screw compressor |
| Application | Low-temperature refrigeration |
| Nominal Power Range | 30–160 HP |
| Nominal Displacement Range | 120–540 m³/h at 50 Hz |
| Standard Motor Supply | 380–420 V / 3 Ph / 50 Hz; 440–480 V / 3 Ph / 60 Hz |
| Terminal Box Protection | IP65 |
| Maximum Low-Side Pressure | 20.5 bar |
| Maximum High-Side Pressure | 30 bar |
| Starting Method | Part-winding start or VFD, depending on configuration |
| Capacity Control | Stepped capacity regulation |
| Lubrication | Integrated oil injection and oil management system |
| Frequency Operation | Typically 30–70 Hz, subject to operating envelope |
| Refrigerants | Selected HCFC, HFC, HFO, HFO-blend and HC refrigerants, subject to model approval |
| Compressor Selection | Frascold FSS3 selection software recommended |
TYPICAL APPLICATIONS
-
Frozen-food cold rooms
-
Low-temperature distribution centres
-
Food-processing and slaughterhouse refrigeration
-
Industrial freezing systems
-
Marine and refrigerated transport
-
Chemical and process refrigeration
-
Parallel compressor racks
SELECTION NOTICE
Cooling capacity, absorbed power, operating envelope, oil type and connection size depend on the selected refrigerant and operating conditions. Please provide the required cooling capacity, refrigerant, evaporating temperature, condensing temperature and power supply before ordering.
| Model |
FVR-L-30-120, FVR-L-40-140, FVR-L-50-160, FVR-L-60-200, FVR-L-70-230, FVR-L-80-270, FVR-L-90-300, FVR-L-100-350, FVR-L-110-380, FVR-L-125-430, FVR-L-160-540 |
|---|
