HENGSEN SBF-T-536APF-R22 Brass Manifold Gauge Set with 0.9 m Hoses
Description
Product Overview

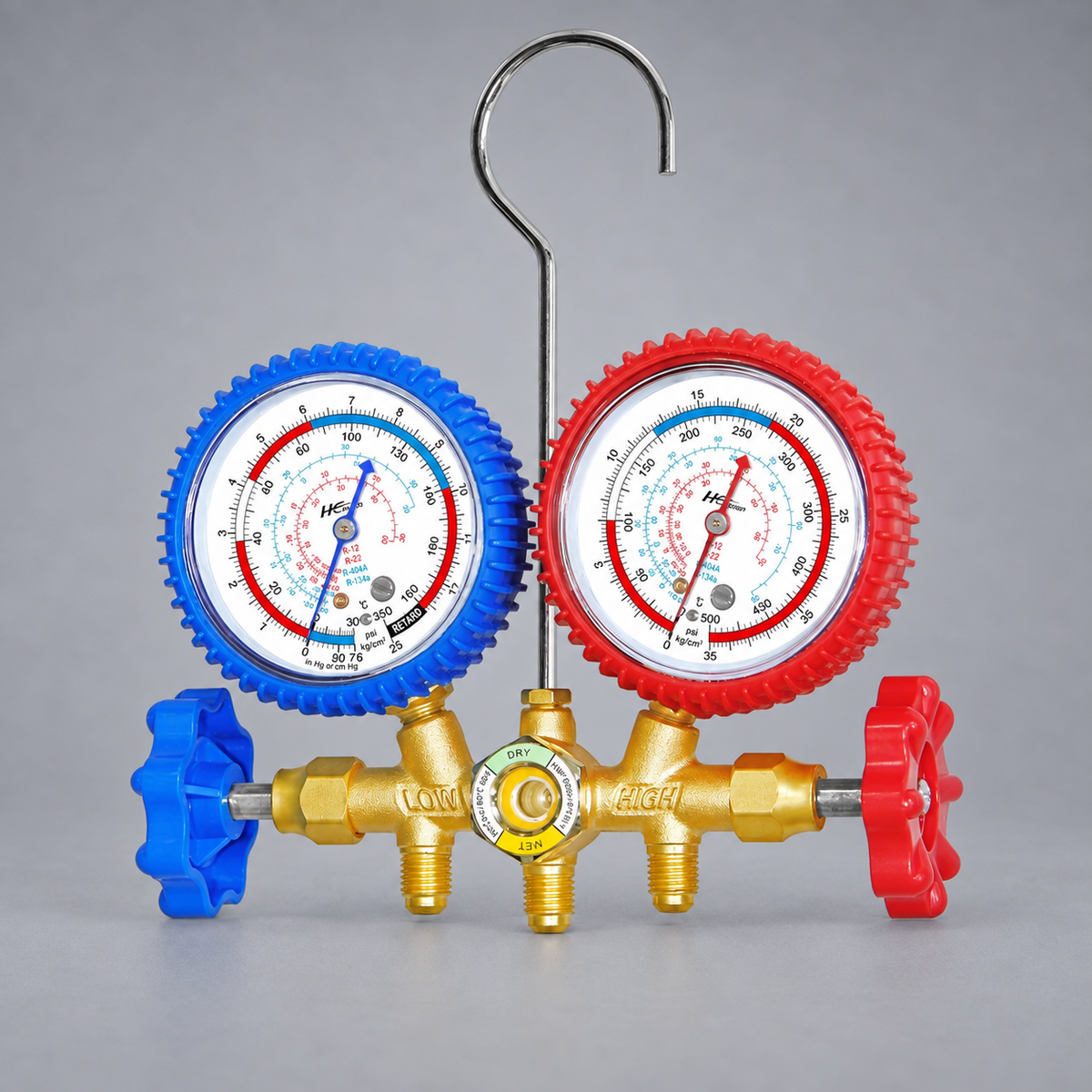

The HENGSEN SBF-T-536APF-R22 is a dual manifold gauge set for R22 air-conditioning and refrigeration service. This configuration combines low-side and high-side analog gauges, a brass manifold body and 0.9 m service hoses.
The two-gauge layout allows technicians to observe system pressures together, while the red and blue controls help identify the high and low sides. A hanging hook supports the manifold near the service area, keeping the dials visible during pressure checks and servicing.
Key Features
- Dual Analog Gauges: Separate low-side and high-side pressure indicators in one assembly.
- Brass Manifold Body: A brass valve body with manually operated controls for refrigeration service connections.
- R22 Configuration: Listed for use with R22 systems, with the exact configuration identified by the full product code.
- 0.9 m Service Hoses: A 90 cm hose configuration for connecting the manifold to compatible service equipment.
- Red and Blue Identification: Distinct colors make it easier to distinguish the two sides during setup and operation.
- Hanging Hook: Allows the manifold to be suspended with the gauge faces in view.
- Mechanical Display: Pointer gauges provide local readings without batteries or a charging cable.

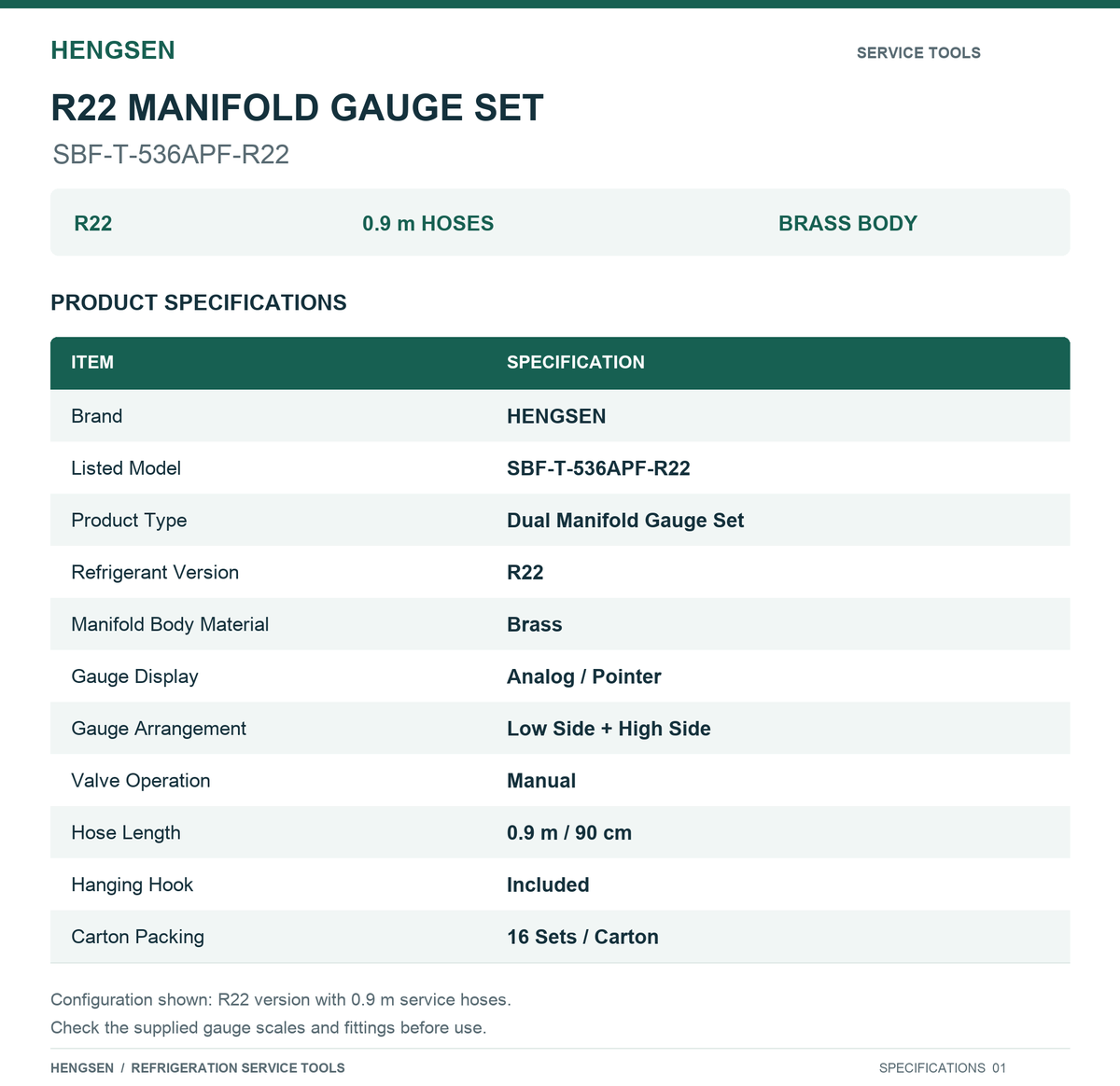

Technical Specifications
| Item | Specification |
|---|---|
| Brand | HENGSEN |
| Listed Model | SBF-T-536APF-R22 |
| Product Type | Dual Manifold Gauge Set |
| Refrigerant Version | R22 |
| Manifold Body Material | Brass |
| Gauge Display | Analog / Pointer |
| Number of Gauges | 2 |
| Gauge Arrangement | Low Side + High Side |
| Valve Operation | Manual |
| Color Identification | Blue: Low Side; Red: High Side |
| Hose Length | 0.9 m / 90 cm |
| Hanging Hook | Included |
| Sales Unit | Set |
| Carton Packing | 16 Sets / Carton |
Applications
- Pressure checks on compatible R22 air-conditioning systems.
- Routine inspection and troubleshooting of R22 refrigeration equipment.
- Refrigerant service work using compatible hoses, connections and external service equipment.
- Workshop and on-site HVAC maintenance.
Configuration & Ordering
This listing covers the SBF-T-536APF-R22 configuration with 0.9 m hoses. Use the complete model reference when ordering replacements or requesting a quotation.
Before ordering, confirm that the supplied gauge ranges, hose pressure ratings and connector threads match the equipment being serviced. For other refrigerants or hose lengths, contact us to confirm a suitable configuration.
The carton packing quantity is 16 sets. Contact us for the available purchase quantity and current stock.
Use & Care
Use the manifold according to the equipment and tool operating instructions. Check the hoses, fittings and gauge condition before each use, and keep the connections clean and protected during storage.
Read pressure from the scale on the supplied gauge. Use service accessories rated for the intended system and operating conditions.
Request a Quote
Contact us for pricing and availability of the HENGSEN SBF-T-536APF-R22 manifold gauge set.
| Model |
SBF-T-536APF-R22 |
|---|
