HENGSEN Standard-Wall 90° Copper Elbows | 6.35–133 mm

Description

Product Overview

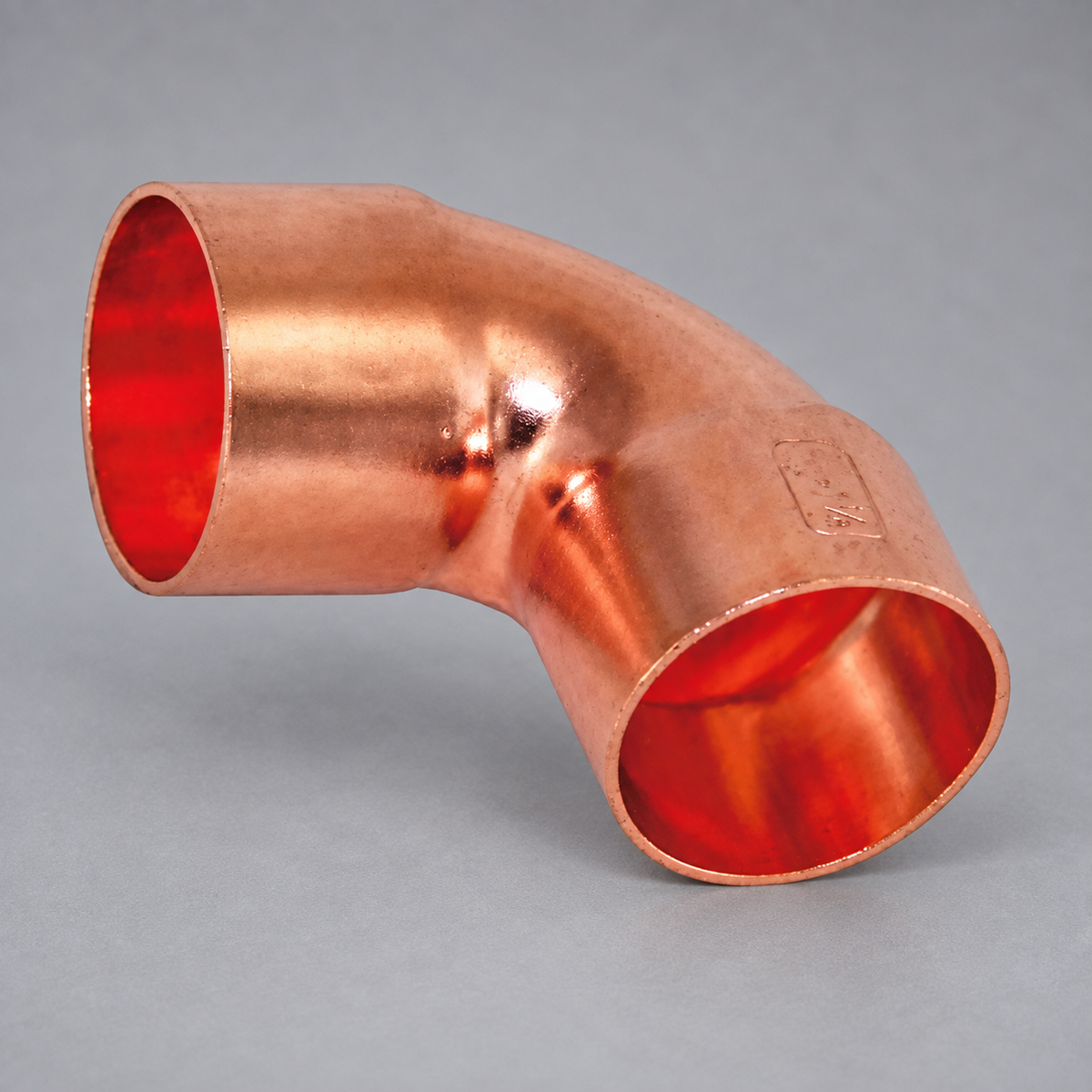

HENGSEN Standard-Wall 90° Copper Elbows provide a right-angle connection for copper pipework in refrigeration and air-conditioning installations. The equal-size socket ends connect matching copper tubes where a 90-degree change in direction is required.

This range includes 30 listed sizes from 6.35 to 133 mm, with wall thicknesses from 0.8 to 3.0 mm depending on the selected size. Each option combines a specific connection size and wall thickness for clear ordering.

Key Features

90-degree elbow configuration: Provides a right-angle turn in copper piping.
Copper construction: Copper fitting with socket ends for compatible copper tubing.
30 size options: Select from the listed 6.35–133 mm range.
Specified wall thickness: Each size is paired with its listed wall thickness.
Equal-size ends: Both connections use the same listed size.

Technical Specifications

Item	Specification
Brand	HENGSEN
Product Type	90° Copper Elbow
Series	Standard Wall
Material	Copper
Angle	90°
Fitting Configuration	Equal Elbow
Connection Style	Socket × Socket
Listed Connection Size Range	6.35–133 mm
Wall Thickness Range	0.8–3.0 mm, depending on size
Available Variants	30
Specification Format	Connection Size × Wall Thickness

Available Sizes

Variant	Listed Connection Size (mm)	Wall Thickness (mm)
6.35 × 0.8 mm	6.35	0.8
8 × 0.8 mm	8	0.8
9.52 × 0.8 mm	9.52	0.8
10 × 0.8 mm	10	0.8
12 × 0.8 mm	12	0.8
12.7 × 0.8 mm	12.7	0.8
15.88 × 0.8 mm	15.88	0.8
16 × 0.8 mm	16	0.8
19 × 0.9 mm	19	0.9
22 × 1.0 mm	22	1.0
22.23 × 1.0 mm	22.23	1.0
25 × 1.1 mm	25	1.1
25.4 × 1.1 mm	25.4	1.1
28 × 1.1 mm	28	1.1
28.58 × 1.1 mm	28.58	1.1
32 × 1.2 mm	32	1.2
35 × 1.3 mm	35	1.3
38 × 1.4 mm	38	1.4
41.28 × 1.5 mm	41.28	1.5
42 × 1.5 mm	42	1.5
45 × 1.5 mm	45	1.5
50 × 1.7 mm	50	1.7
51 × 1.7 mm	51	1.7
54 × 1.7 mm	54	1.7
67 × 1.8 mm	67	1.8
76 × 2.0 mm	76	2.0
80 × 2.0 mm	80	2.0
89 × 2.3 mm	89	2.3
108 × 2.8 mm	108	2.8
133 × 3.0 mm	133	3.0

All values are in millimeters. Listed connection sizes identify the product options; they are not the elbow’s overall dimensions. Confirm the mating tube and socket fit before ordering.

Applications

Copper piping for refrigeration and air-conditioning systems.
Cold room and commercial refrigeration installations.
Equipment maintenance and replacement of matching 90-degree fittings.

Selection & Installation

Select the exact size and wall thickness required by your piping specification. Closely spaced sizes such as 15.88 and 16 mm, or 22 and 22.23 mm, are separate options and should not be substituted without checking the fit.

Have a qualified installer confirm the joining procedure and suitability for the system’s pressure, temperature and refrigerant. Check joint quality and test the completed pipework before commissioning.

Request a Quote

Send the required size × wall thickness, quantity and delivery destination. Include your piping specification if you need help identifying the correct option.
