HONGSEN HMG-2 Refrigeration Hose Fittings and Assembly Parts
HONGSEN HMG-2 Refrigeration Hose Fittings and Assembly Parts
Description
Product Overview
HONGSEN HMG-2 fittings and assembly parts are specifically designed for the HS-HMG-2 flexible high-pressure hose with a 2.5 mm inner diameter and 5.6 mm outer diameter.
The available components include 90-degree bend cores, straight cores, tee fittings, 1/4-inch and Dg4 nuts, and the matching aluminium crimping sleeve.
All components must be selected according to the required connection standard. Dg4 is a metric connection designation and must not be treated as interchangeable with a 1/4-inch connection.
Key Features
- Specifically matched to HS-HMG-2 hose
- 90-degree, straight and tee configurations
- 1/4-inch and Dg4 connection options
- Matching aluminium crimping sleeve available
- Individual replacement components available
- Suitable for custom refrigeration hose assemblies
Compatible Hose
| Item | Specification |
|---|---|
| Compatible hose | HS-HMG-2 |
| Hose inner diameter | 2.5 mm |
| Hose outer diameter | 5.6 mm |
| Maximum working pressure | 5.5 MPa |
| Blasting test pressure | 30 MPa |

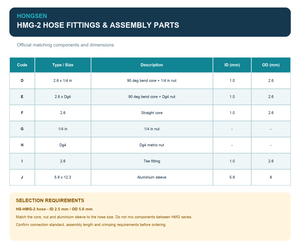

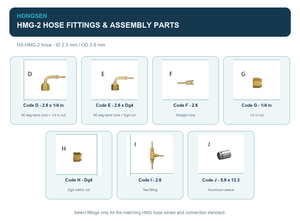

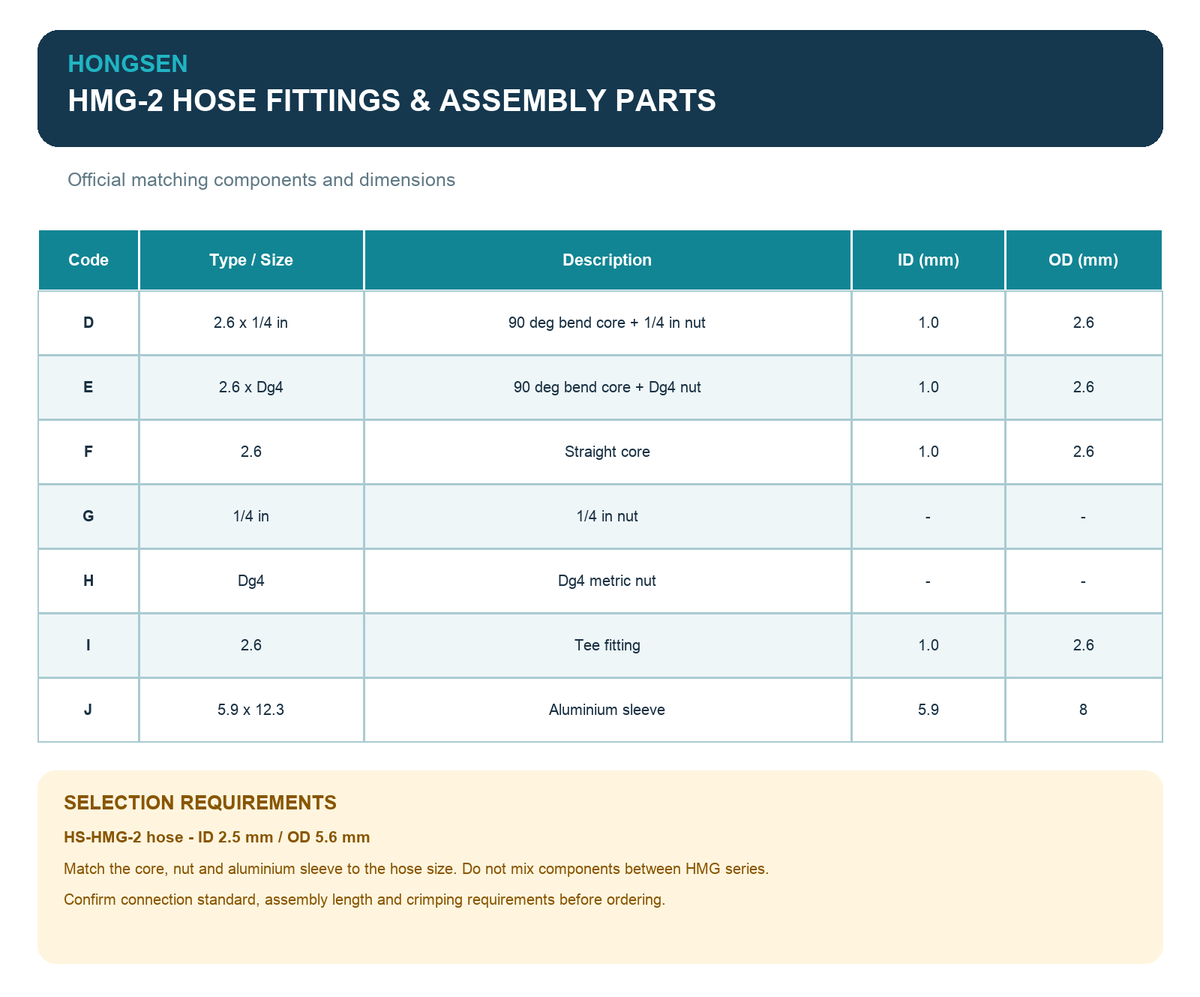

Available Fittings
| Reference | Type/Size | Description | ID | OD |
|---|---|---|---|---|

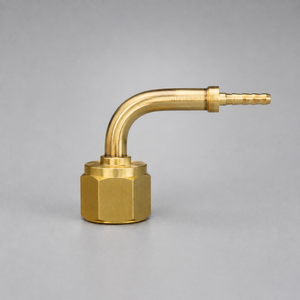

| D | φ2.6 × 1/4″ | 90° bend core with 1/4″ nut | 1.0 mm | 2.6 mm |
| E | φ2.6 × Dg4 | 90° bend core with Dg4 nut | 1.0 mm | 2.6 mm |
| F | φ2.6 | Straight core | 1.0 mm | 2.6 mm |
| G | 1/4″ | 1/4″ nut | — | — |
| H | Dg4 | Dg4 metric nut | — | — |
| I | φ2.6 | Tee fitting | 1.0 mm | 2.6 mm |
| J | φ5.9 × 12.3 | Aluminium sleeve | 5.9 mm | 8 mm |
| Model |
Code D, Code E, Code F, Code G, Code H, Code I, Code J |
|---|
