Kaideli GE Series Ceiling-Mounted Side-Outlet Electric-Defrost Unit Coolers
Product Description
Product Overview

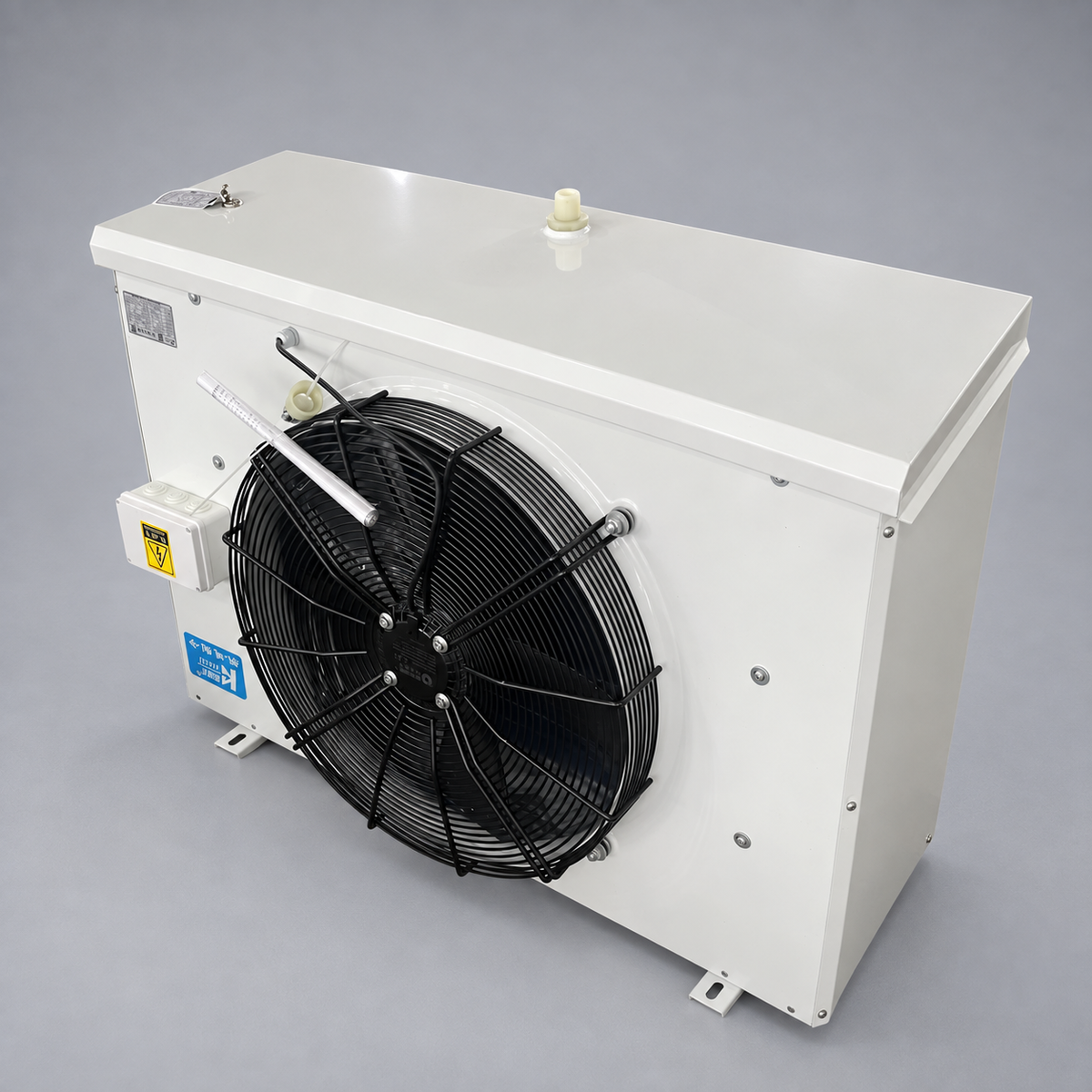

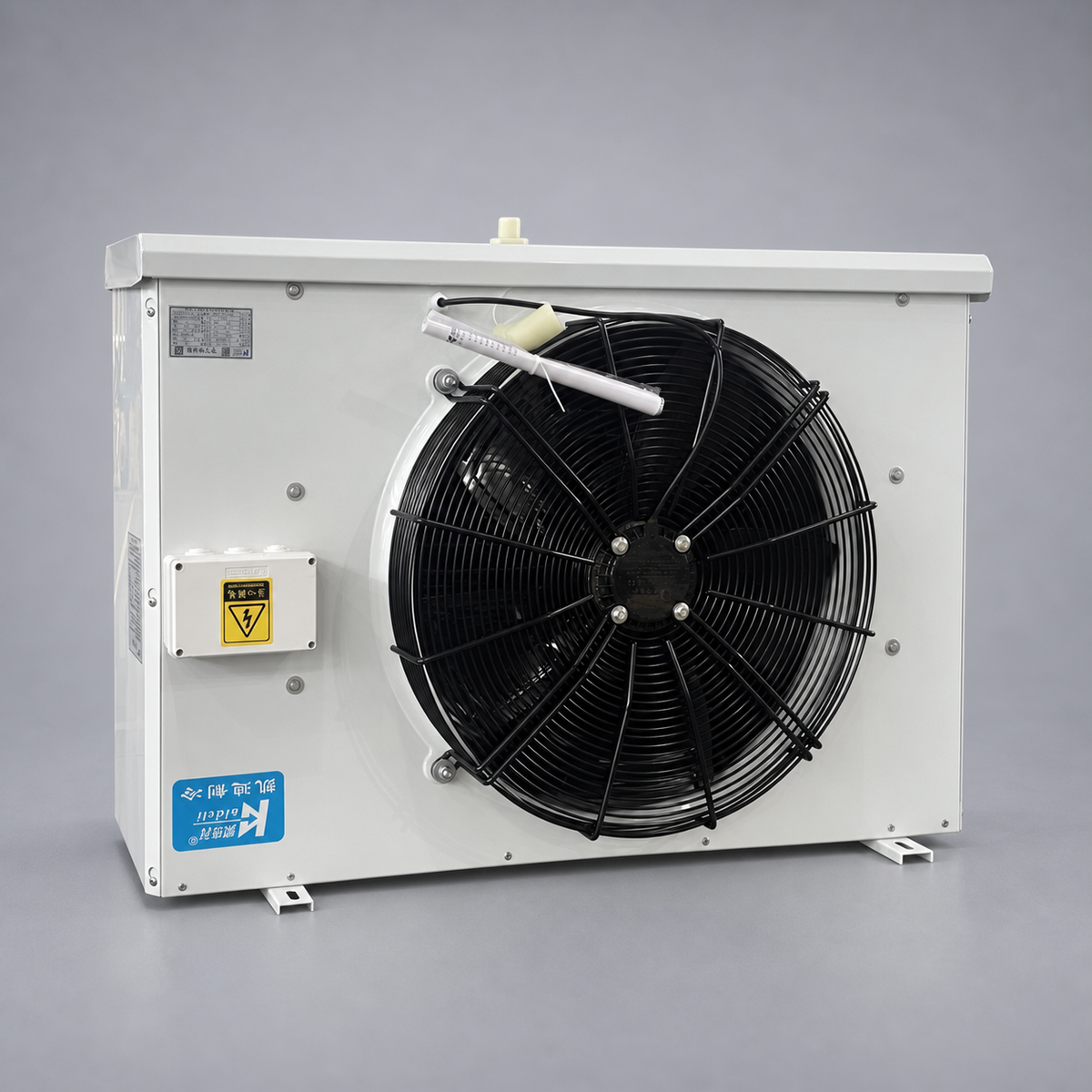

The Kaideli GE Series is a range of ceiling-mounted, side-outlet unit coolers designed for commercial and industrial cold rooms. The compact ceiling installation saves usable storage space, while the side-discharge airflow supports efficient air circulation and uniform room temperature.
The series is equipped with electric defrost heaters installed in the heat-exchange coil and inner drain pan, making it suitable for refrigerated and low-temperature storage applications where frost control is required.
GEDL, GEDD and GEDJ configurations are available with different fin spacings to match different room temperatures, humidity levels and frost-loading conditions.
Key Features
- Ceiling-mounted, side-outlet construction
- Electric defrost heaters installed in the coil and drain pan
- Fin spacing options of 4.5 mm, 6.0 mm and 9.0 mm
- Corrosion-resistant coated galvanized-steel housing
- Aluminum and stainless-steel casing options available
- Alloy-aluminum tube sheets help reduce tube wear
- High-efficiency internally grooved heat-exchange tubes
- Sinusoidal corrugated aluminum fins for improved air-side heat transfer
- External-rotor fans with large airflow and long air throw
- Fan operating temperature range from −40°C to +60°C
- Class F fan-motor insulation
- Double-layer drain-pan construction for efficient drainage
- Waterproof and fire-resistant electrical junction box
- Factory pressure-holding test up to 29 bar
- Custom configurations available according to project requirements
Model Configuration
| Model Group | Fin Spacing | Typical Application |
|---|---|---|
| GEDL | 4.5 mm | Chilled rooms and applications with relatively light frost formation |
| GEDD | 6.0 mm | Medium- and low-temperature cold rooms |
| GEDJ | 9.0 mm | Low-temperature applications with heavier frost formation |
Final model selection must be based on the refrigerant, room temperature, evaporating temperature, required refrigeration capacity, humidity and power supply.

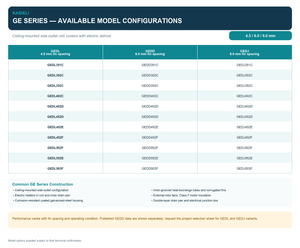

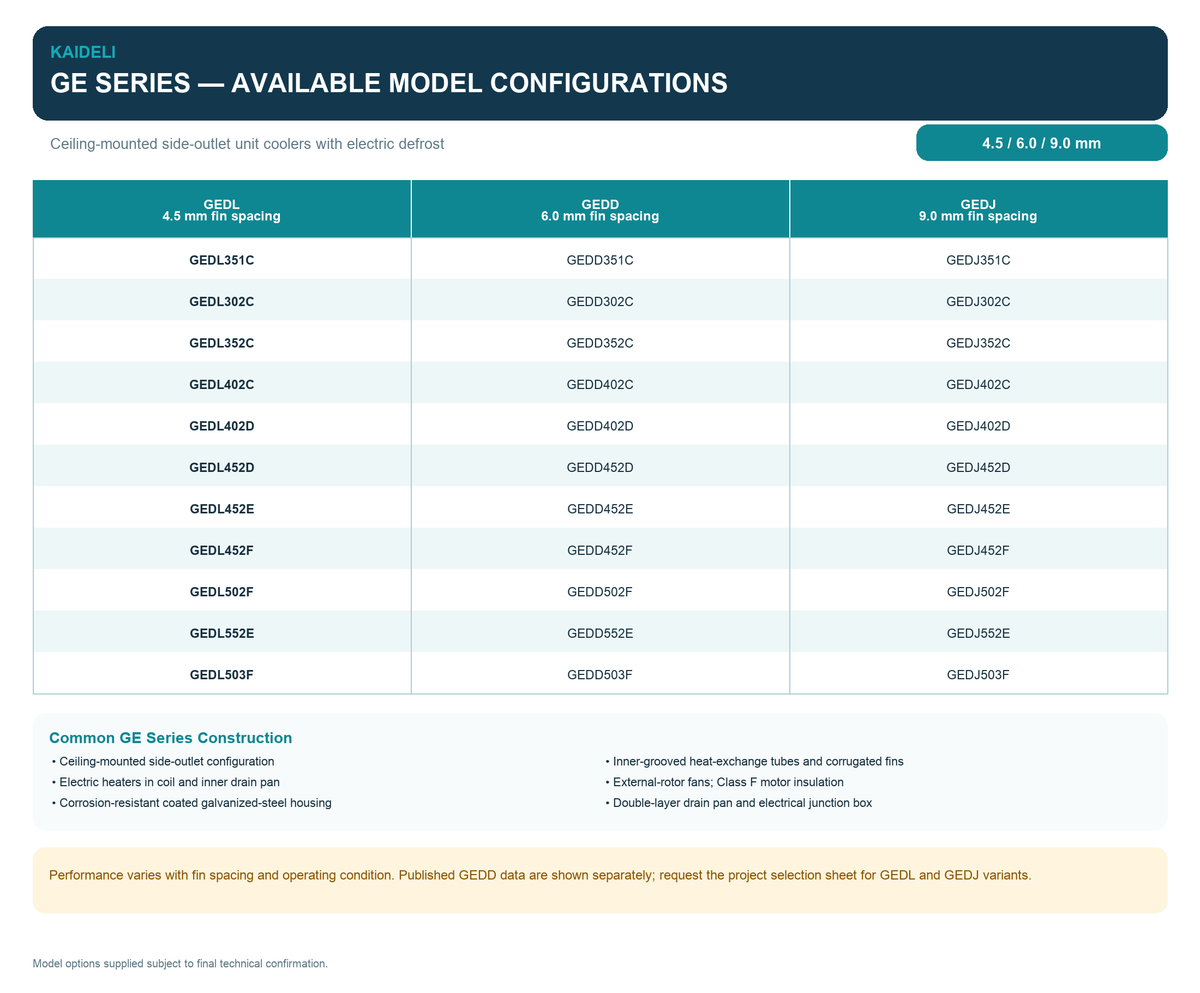

Available Models
GEDL – 4.5 mm fin spacing
GEDL351C, GEDL302C, GEDL352C, GEDL402C, GEDL402D, GEDL452D, GEDL452E, GEDL452F, GEDL502F, GEDL552E, GEDL503F
GEDD – 6.0 mm fin spacing
GEDD351C, GEDD302C, GEDD352C, GEDD402C, GEDD402D, GEDD452D, GEDD452E, GEDD452F, GEDD502F, GEDD552E, GEDD503F
GEDJ – 9.0 mm fin spacing
GEDJ351C, GEDJ302C, GEDJ352C, GEDJ402C, GEDJ402D, GEDJ452D, GEDJ452E, GEDJ452F, GEDJ502F, GEDJ552E, GEDJ503F

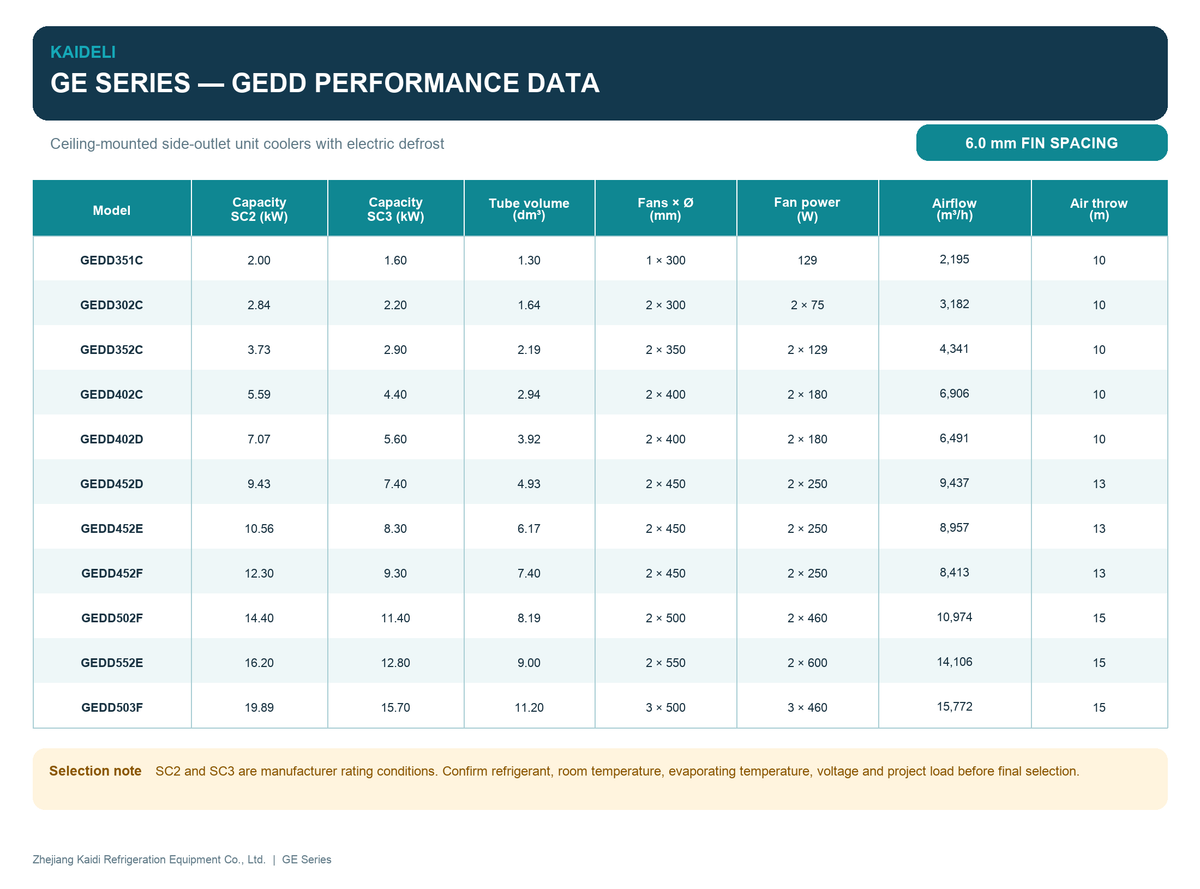

Published GEDD Performance Data
| Model | SC2 Capacity | SC3 Capacity | Tube Volume | Fans | Airflow | Air Throw |
|---|---|---|---|---|---|---|
| GEDD351C | 2.00 kW | 1.60 kW | 1.30 dm³ | 1 × 300 mm | 2,195 m³/h | 10 m |
| GEDD302C | 2.84 kW | 2.20 kW | 1.64 dm³ | 2 × 300 mm | 3,182 m³/h | 10 m |
| GEDD352C | 3.73 kW | 2.90 kW | 2.19 dm³ | 2 × 350 mm | 4,341 m³/h | 10 m |
| GEDD402C | 5.59 kW | 4.40 kW | 2.94 dm³ | 2 × 400 mm | 6,906 m³/h | 10 m |
| GEDD402D | 7.07 kW | 5.60 kW | 3.92 dm³ | 2 × 400 mm | 6,491 m³/h | 10 m |
| GEDD452D | 9.43 kW | 7.40 kW | 4.93 dm³ | 2 × 450 mm | 9,437 m³/h | 13 m |
| GEDD452E | 10.56 kW | 8.30 kW | 6.17 dm³ | 2 × 450 mm | 8,957 m³/h | 13 m |
| GEDD452F | 12.30 kW | 9.30 kW | 7.40 dm³ | 2 × 450 mm | 8,413 m³/h | 13 m |
| GEDD502F | 14.40 kW | 11.40 kW | 8.19 dm³ | 2 × 500 mm | 10,974 m³/h | 15 m |
| GEDD552E | 16.20 kW | 12.80 kW | 9.00 dm³ | 2 × 550 mm | 14,106 m³/h | 15 m |
| GEDD503F | 19.89 kW | 15.70 kW | 11.20 dm³ | 3 × 500 mm | 15,772 m³/h | 15 m |
SC2 and SC3 refer to the manufacturer’s published rating conditions. The exact operating capacity must be confirmed according to the selected refrigerant and actual system conditions.
Applications
- Walk-in cooler and freezer rooms
- Food and beverage cold storage
- Meat and seafood processing facilities
- Fruit and vegetable storage
- Cold-chain logistics warehouses
- Pharmaceutical cold rooms
- Commercial and industrial refrigeration projects
Quotation Information Required
Please provide:
- Required model or refrigeration capacity
- Cold-room dimensions
- Storage temperature
- Product being stored
- Refrigerant
- Evaporating and condensing temperatures
- Local voltage, phase and frequency
- Required quantity
- Delivery country or destination port
