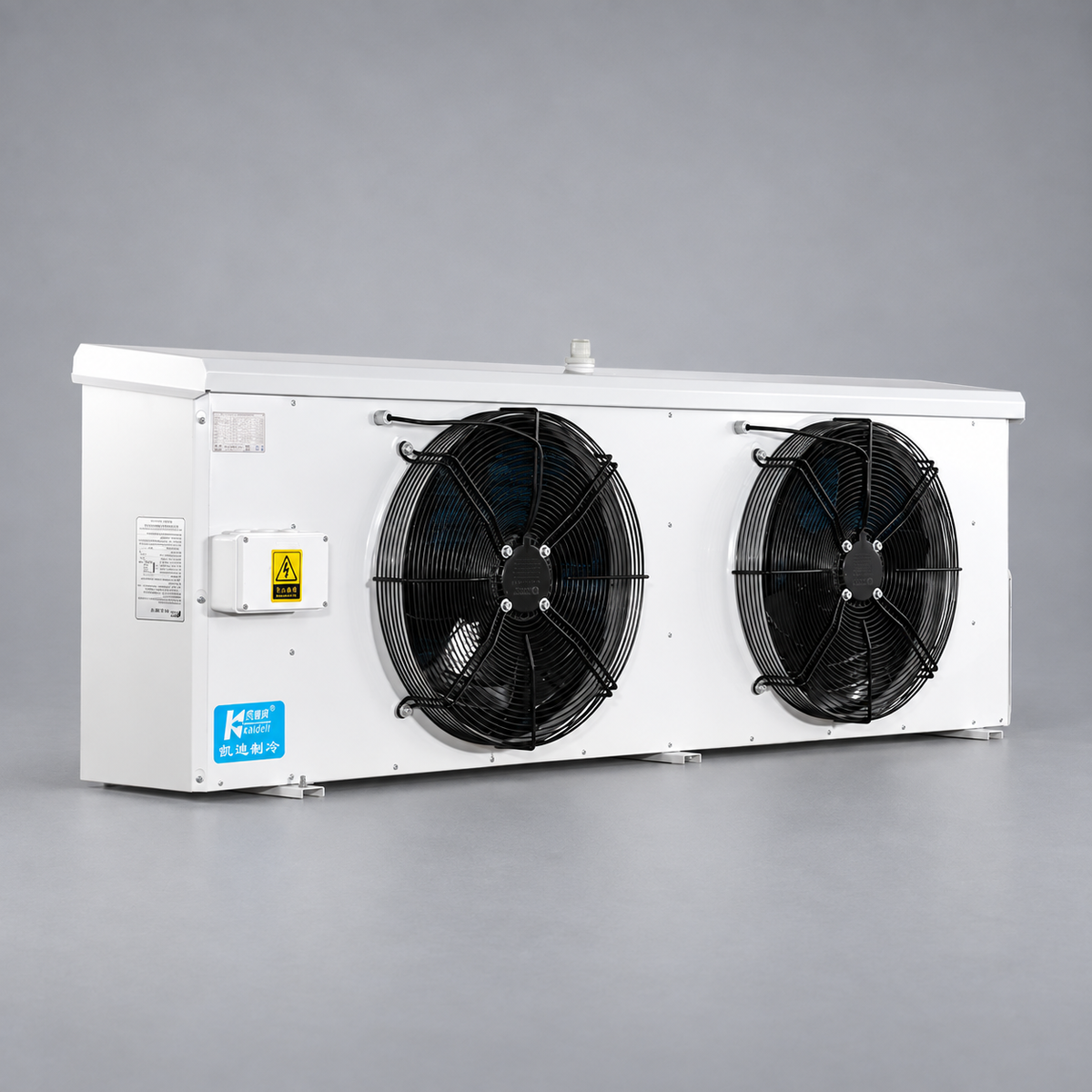

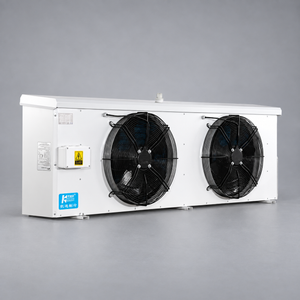

KAIDELI GUDD-R Ceiling Unit Cooler with Hot Gas Defrost – 6.0 mm Fin Spacing
Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.
KAIDELI GUDD-R Ceiling Unit Cooler with Hot Gas Defrost – 6.0 mm Fin Spacing
GUDD-R — Description
The KAIDELI GUDD-R model group provides eleven options for refrigeration projects specifying 6.0 mm fin spacing. Select the evaporator as part of the complete refrigeration system, considering both normal cooling operation and the proposed defrost arrangement.
The required duty depends on the room’s operating pattern. Daily loading, incoming product temperature, door openings and installation layout should all be included in the equipment enquiry.
Key Features
- Ceiling-mounted configuration.
- Hot gas defrost designation.
- GU-series copper/aluminium heat exchanger.
- Coated steel enclosure and hinged outer drain pan.
- Eleven model options for project selection.
Technical Overview
| Specification | Details |
|---|---|
| Brand | KAIDELI |
| Model Group | GUDD-R |
| Product Type | Unit cooler / evaporator |
| Installation | Ceiling mounted |
| Fin Spacing | 6.0 mm |
| Defrost Method | Hot gas |
| Model Options | 11 |
| Variant Selection | Full model code |
| Final Configuration | Defined by the approved technical specification |

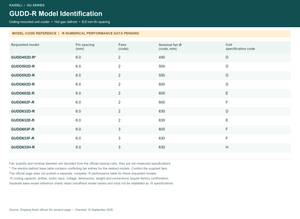

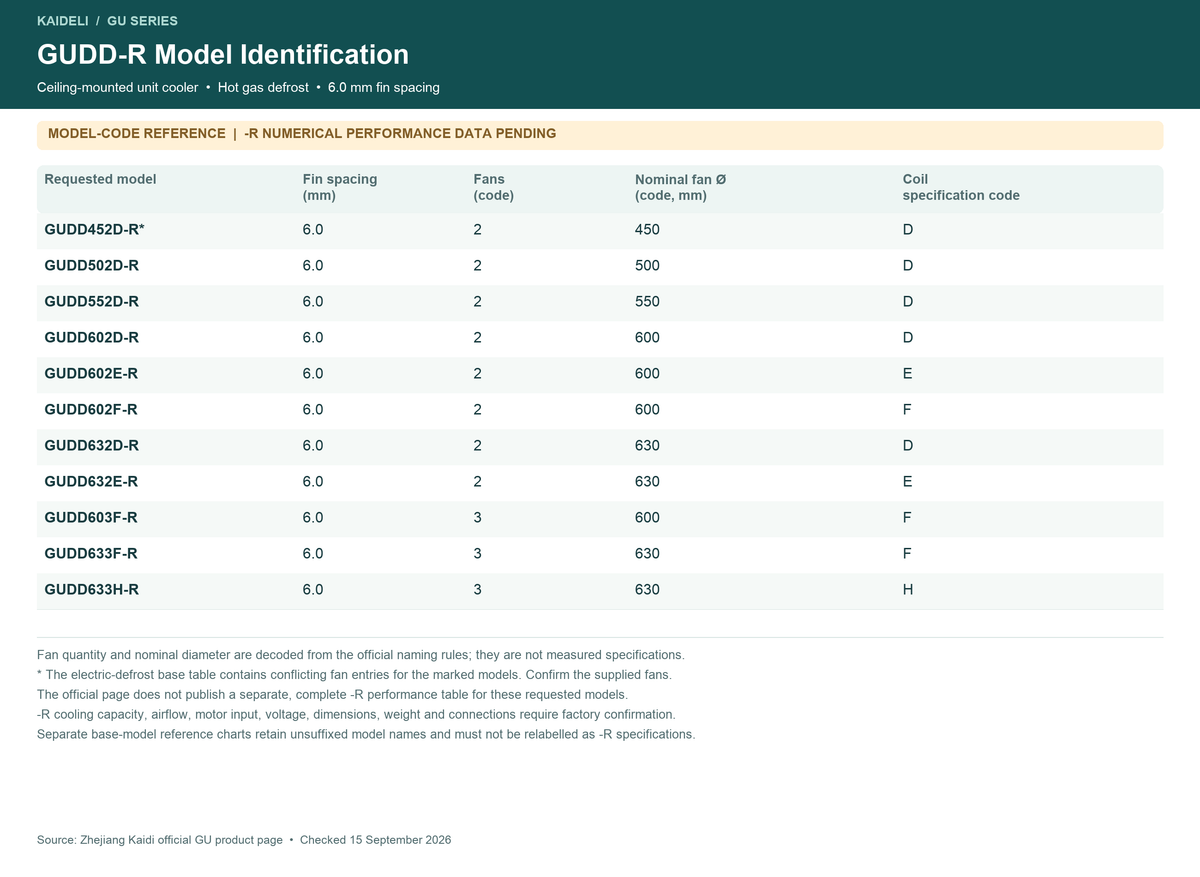

Model Configuration Table
Fan quantities and nominal diameters below are decoded from the manufacturer’s model-naming rules. Confirm the actual fan specification with the selected -R configuration.
| Model | Fin Spacing (mm) | Fan Quantity — Code | Nominal Fan Ø — Code (mm) | Coil Code |
|---|---|---|---|---|
| GUDD452D-R | 6.0 | 2 | 450 | D |
| GUDD502D-R | 6.0 | 2 | 500 | D |
| GUDD552D-R | 6.0 | 2 | 550 | D |
| GUDD602D-R | 6.0 | 2 | 600 | D |
| GUDD602E-R | 6.0 | 2 | 600 | E |
| GUDD602F-R | 6.0 | 2 | 600 | F |
| GUDD632D-R | 6.0 | 2 | 630 | D |
| GUDD632E-R | 6.0 | 2 | 630 | E |
| GUDD603F-R | 6.0 | 3 | 600 | F |
| GUDD633F-R | 6.0 | 3 | 630 | F |
| GUDD633H-R | 6.0 | 3 | 630 | H |
The published base-model table contains a conflicting fan entry for 452D. The figures above show the naming-rule interpretation; factory confirmation is required.
Performance, Dimensions and Connections
| Parameter | Specification Status |
|---|---|
| Cooling Capacity (kW) | Confirm for the selected -R model and rating conditions |
| Airflow (m³/h) | Model-specific -R data required |
| Fan Power and Current | Confirm with the supplied motor configuration |
| Voltage / Phase / Frequency | Confirm with the order specification |
| Overall Dimensions (mm) | Refer to the current -R factory drawing |
| Mounting Dimensions | Refer to the current -R factory drawing |
| Refrigerant and Defrost Connections | Confirm with the selected circuit arrangement |
| Drain Connection | Confirm with the selected drain-pan configuration |
| Equipment Weight (kg) | Model-specific -R data required |
Applications
Consider this model group for cold-storage installations, food-production support storage and refrigerated distribution projects where the design specifies a 6.0 mm coil.
Identify storage duty and product-cooling duty separately. Products entering above their storage temperature create an additional load that must be included in the selection.
How to Select Your Model
- Establish the room and product cooling loads.
- Specify the refrigerant and design temperatures.
- Provide loading quantities, incoming product temperatures and operating hours.
- Include the room layout and available installation space.
- Confirm the electrical supply and proposed hot gas defrost system.
- Review the technical selection, factory drawing and scope of supply.
| Model |
GUDD452D-R, GUDD502D-R, GUDD552D-R, GUDD602D-R, GUDD602E-R, GUDD602F-R, GUDD632D-R, GUDD632E-R, GUDD603F-R, GUDD633F-R, GUDD633H-R |
|---|
