Horizontal airflow. Copper-tube heat exchange. Multiple fan configurations.

The KAIDELI KGHM series is an H-type air cooled condenser designed for heat rejection in refrigeration systems. Its flat-panel construction and horizontal airflow arrangement provide a practical option for cold-room equipment, refrigeration assemblies and compressor condensing units.

Published models offer 4.4–60.2 kW of reference heat rejection with R22, with single-, two- and four-fan configurations. Select the appropriate model according to your refrigerant, operating temperatures, required heat-rejection duty and installation space.

Key Features

• Horizontal airflow design: Flat-panel construction for equipment layouts requiring side discharge.
• Copper-tube heat exchanger: Internally grooved copper tubes and corrugated fins support heat transfer.
• Mechanically expanded tube-to-fin contact: Designed to maintain close contact between the tubes and fins.
• Multiple fan configurations: Compare models by fan quantity, diameter, airflow and electrical input.
• Model-specific installation dimensions: Published dimensions and connection sizes help with equipment matching.
• Application-based selection: Confirm the configuration against your system’s operating conditions before ordering.

Applications

Suitable for consideration in:

• Cold-room refrigeration systems
• Food storage and processing refrigeration
• Commercial refrigeration equipment
• Compressor condensing-unit assemblies
• Replacement condenser projects requiring compatible capacity, dimensions and connections

Final suitability depends on the complete refrigeration system and its operating conditions.

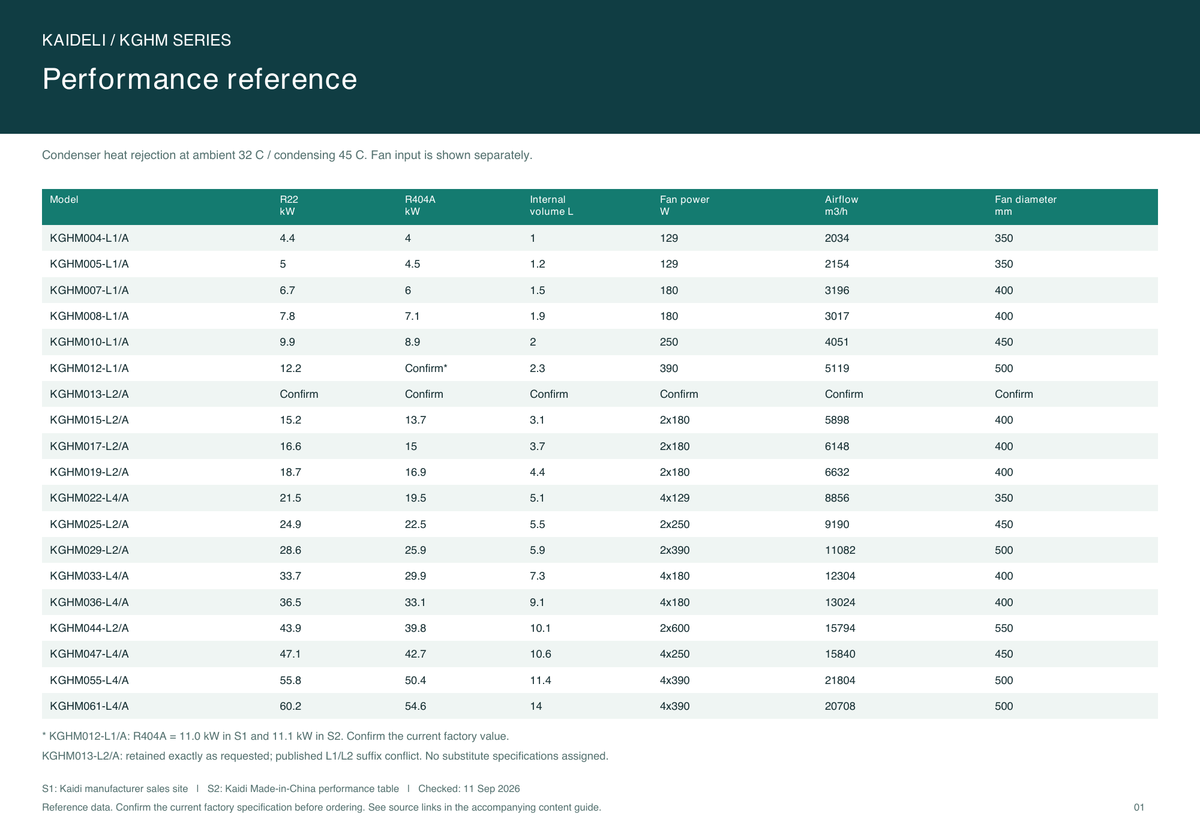

Technical Specifications

Reference rating conditions: Ambient air temperature 32°C; condensing temperature 45°C.

The capacities below represent condenser heat rejection. Fan electrical input is listed separately.

¹ Published manufacturer tables list 11.0 and 11.1 kW for KGHM012-L1/A under R404A. Please request the current factory selection sheet.

² KGHM013-L2/A requires confirmation of its complete model designation and specifications because published references use different L1/L2 suffixes.

Fan power expressed as “2 × 180 W” means two motors rated at 180 W each.

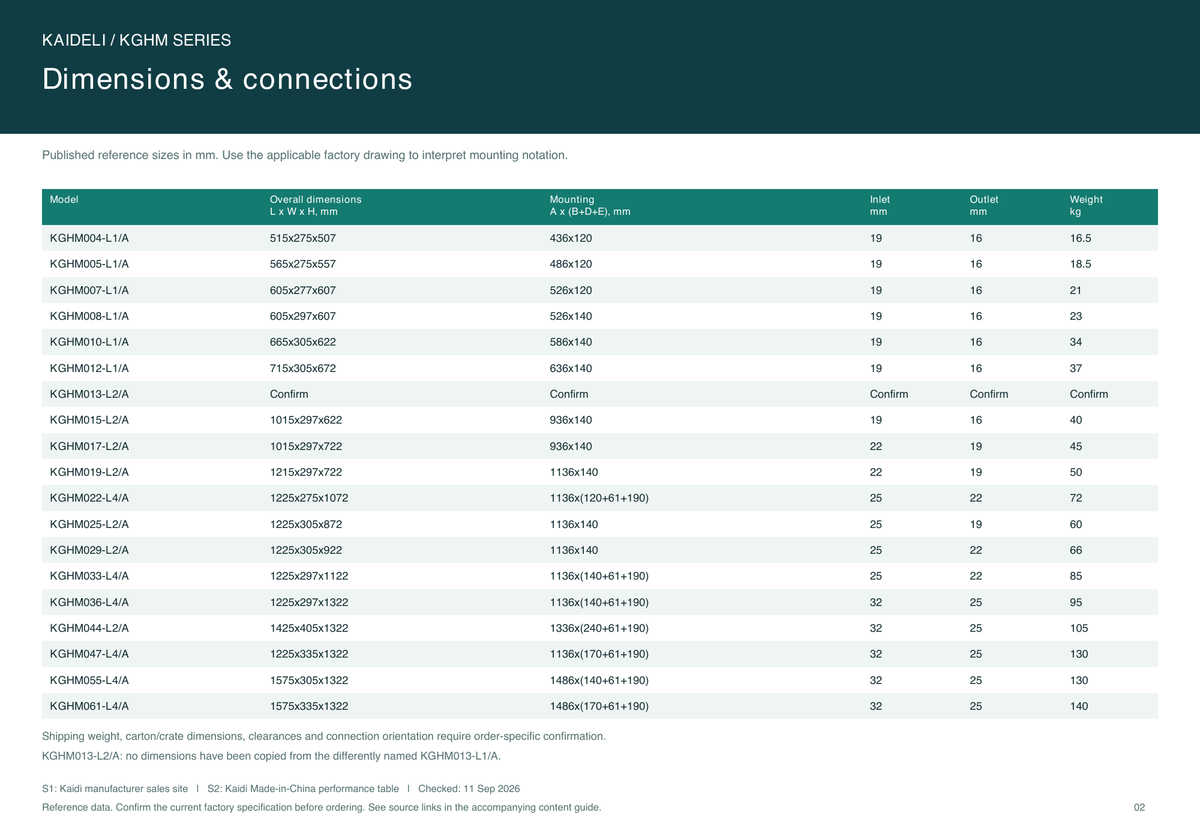

Dimensions and Connections

All dimensions and connection diameters are in millimetres.

Mounting notation follows the published table and must be read together with the applicable factory drawing. Equipment weights are reference values; packed shipping weights must be confirmed separately.

Model Selection

To select a suitable KGHM condenser, please provide:

1. Preferred model and required quantity
2. Refrigerant
3. Required condenser heat-rejection capacity
4. Design ambient temperature and condensing temperature
5. Compressor model or system selection data
6. Power supply: voltage, phase and frequency
7. Available installation space and connection requirements
8. Delivery country and postcode

The final model, electrical configuration, installation drawing and scope of supply should be confirmed before ordering.

Frequently Asked Questions

Is the KGHM a complete refrigeration unit?

The KGHM is a condenser heat exchanger. A complete refrigeration system also requires a correctly matched compressor, evaporator, controls and other components. Please confirm the exact scope of supply in your quotation.

What does the capacity in kW represent?

It represents condenser heat rejection at the stated reference conditions. It does not indicate compressor horsepower, electrical consumption or the cooling capacity available inside a cold room.

Can I select a model based on cold-room size alone?

Room size alone is insufficient. Selection also depends on the refrigeration load, compressor, refrigerant and operating temperatures.

Which refrigerants and power supplies are available?

The reference tables list R22 and R404A performance. Please confirm your intended refrigerant and required voltage, phase and frequency for the exact configuration being ordered.

Will the delivered product match the photographs?

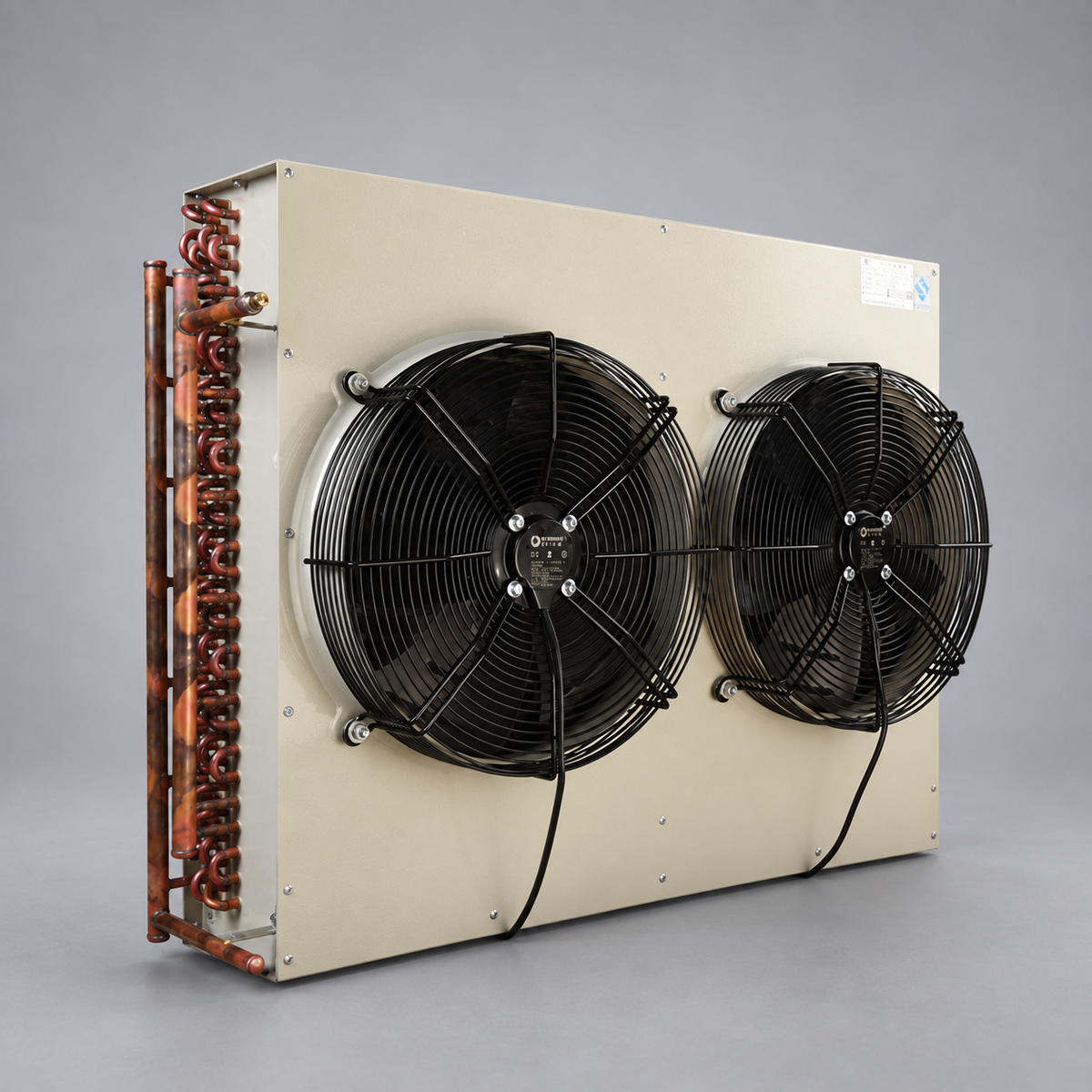

Photographs show series reference configurations. Fan quantity, dimensions, connections and finish depend on the selected model and confirmed order specification.

What are the price, delivery time and warranty terms?

Please request a quotation for your selected model, quantity and destination. Pricing, packaging, shipping terms, lead time and warranty coverage are confirmed in the written quotation and order documentation.
