KAIDELI KGVK V-Type Cabinet Air Cooled Condenser
Go kalles this summer with this vintage navy and white striped v-neck t-shirt from the Nike. Perfect for pairing with denim and white kicks for a stylish kalles vibe.
KAIDELI KGVK V-Type Cabinet Air Cooled Condenser
Short Description
The KAIDELI KGVK Series features a V-type condenser coil arrangement, top-mounted axial fans and a lower equipment compartment for refrigeration system integration. Compare model-specific heat-rejection capacities, airflow and cabinet dimensions to select the right configuration for your project.
Product Description

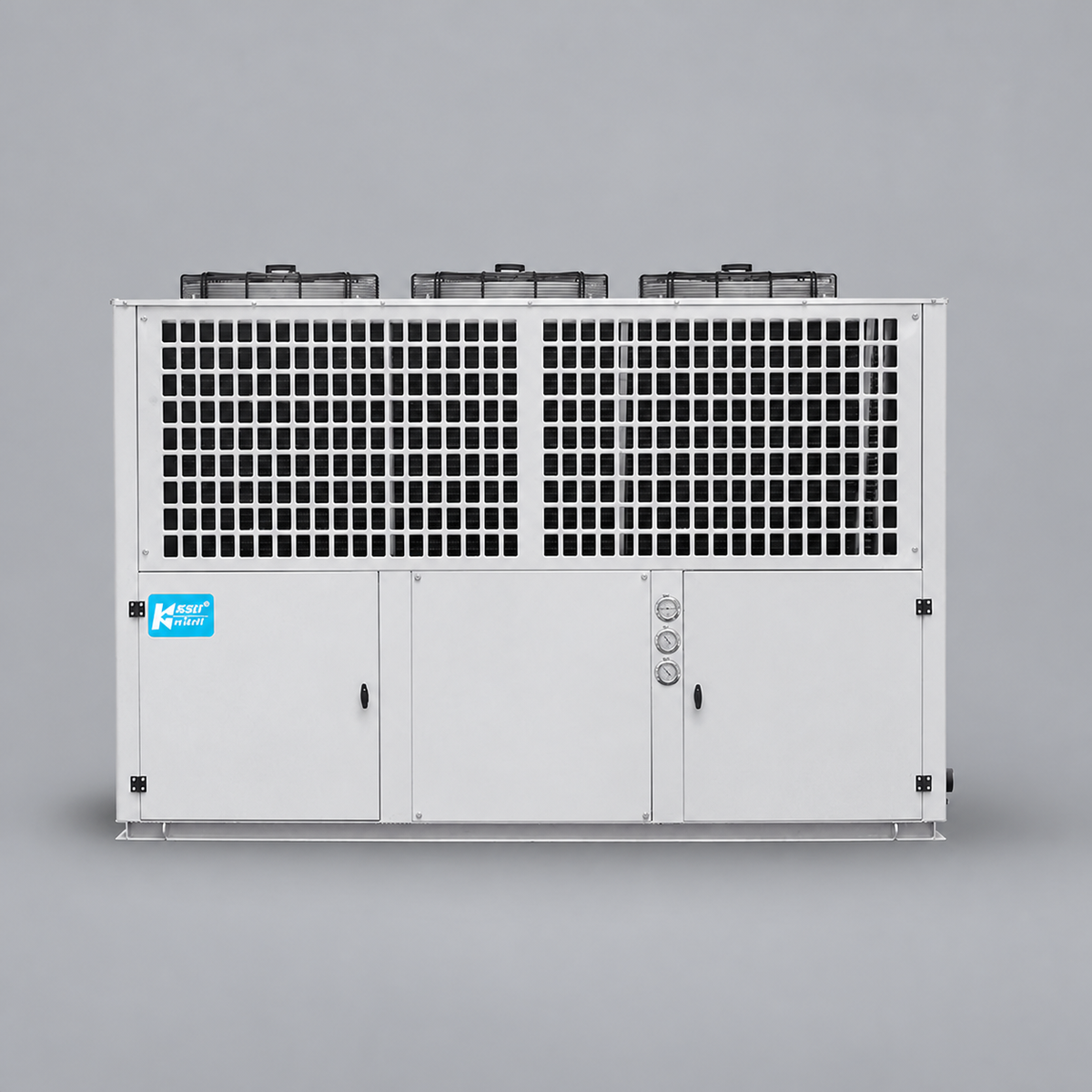

The KAIDELI KGVK Series is a cabinet air cooled condenser designed for integration into refrigeration equipment assemblies. Its V-shaped coil arrangement and top-mounted axial fans provide upward air discharge, while the lower compartment offers space for equipment integration.
The published models in this selection provide reference heat-rejection capacities of 39.6–132.9 kW with R22 and 35.7–120.9 kW with R404A, based on an ambient temperature of 32°C and a condensing temperature of 45°C.
With two-, three- and four-fan configurations, the series offers a range of airflow rates and cabinet sizes for different refrigeration requirements. Select the appropriate model according to your refrigerant, compressor selection, operating temperatures and required condenser heat-rejection duty.
Key Features
- V-Type Coil Arrangement: A V-shaped condenser layout within a cabinet enclosure for refrigeration equipment integration.
- Top Air Discharge: Top-mounted axial fans direct discharge air upward.
- Multiple Fan Configurations: Published models offer two-, three- and four-fan arrangements.
- Fan Diameters from 550 to 630 mm: Different fan sizes and airflow rates support model-specific system matching.
- Lower Equipment Compartment: Provides space for equipment integration, subject to the selected model’s factory drawing.
- Detailed Selection Data: Compare heat rejection, internal volume, fan power, airflow, dimensions and connection sizes.
Applications
The KGVK Series can be considered for refrigeration systems requiring a cabinet-style air cooled condenser, including:
- Cold rooms and refrigerated storage facilities
- Food processing and storage systems
- Commercial and industrial refrigeration installations
- Custom refrigeration equipment assemblies
Final suitability depends on the complete system design and confirmed operating conditions.
Performance Specifications
Reference rating conditions: 32°C ambient air temperature / 45°C condensing temperature.
Capacity values represent condenser heat rejection, not evaporator cooling capacity or electrical consumption. Fan power is expressed as the number of motors × rated power per motor.

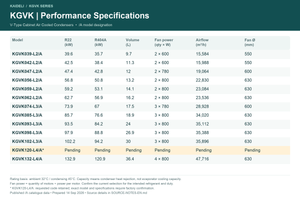

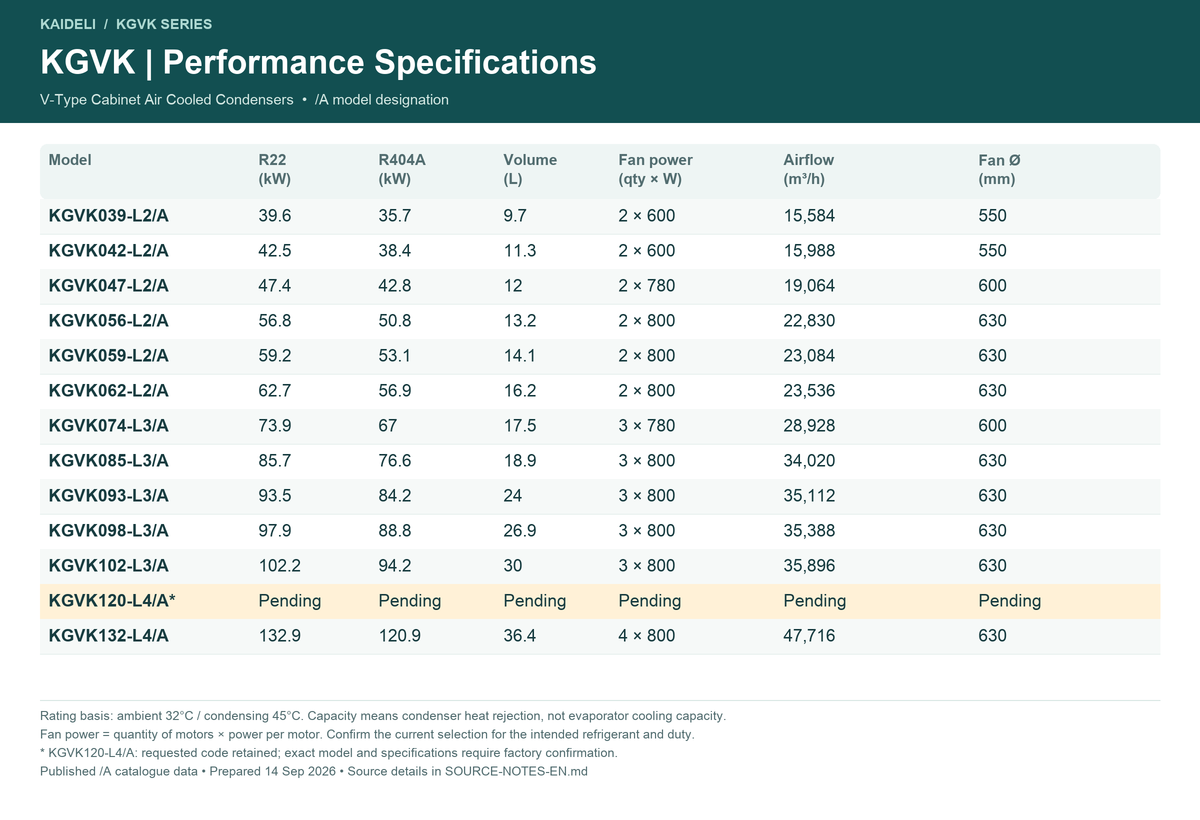

| Model | R22 Heat Rejection (kW) | R404A Heat Rejection (kW) | Internal Volume (L) | Fan Power (W) | Airflow (m³/h) | Fan Diameter (mm) |
|---|---|---|---|---|---|---|
| KGVK039-L2/A | 39.6 | 35.7 | 9.7 | 2 × 600 | 15,584 | 550 |
| KGVK042-L2/A | 42.5 | 38.4 | 11.3 | 2 × 600 | 15,988 | 550 |
| KGVK047-L2/A | 47.4 | 42.8 | 12.0 | 2 × 780 | 19,064 | 600 |
| KGVK056-L2/A | 56.8 | 50.8 | 13.2 | 2 × 800 | 22,830 | 630 |
| KGVK059-L2/A | 59.2 | 53.1 | 14.1 | 2 × 800 | 23,084 | 630 |
| KGVK062-L2/A | 62.7 | 56.9 | 16.2 | 2 × 800 | 23,536 | 630 |
| KGVK074-L3/A | 73.9 | 67.0 | 17.5 | 3 × 780 | 28,928 | 600 |
| KGVK085-L3/A | 85.7 | 76.6 | 18.9 | 3 × 800 | 34,020 | 630 |
| KGVK093-L3/A | 93.5 | 84.2 | 24.0 | 3 × 800 | 35,112 | 630 |
| KGVK098-L3/A | 97.9 | 88.8 | 26.9 | 3 × 800 | 35,388 | 630 |
| KGVK102-L3/A | 102.2 | 94.2 | 30.0 | 3 × 800 | 35,896 | 630 |
| KGVK120-L4/A* | Pending | Pending | Pending | Pending | Pending | Pending |
| KGVK132-L4/A | 132.9 | 120.9 | 36.4 | 4 × 800 | 47,716 | 630 |
KGVK120-L4/A: exact model designation, availability and technical specifications require factory confirmation.
Dimensions and Connections

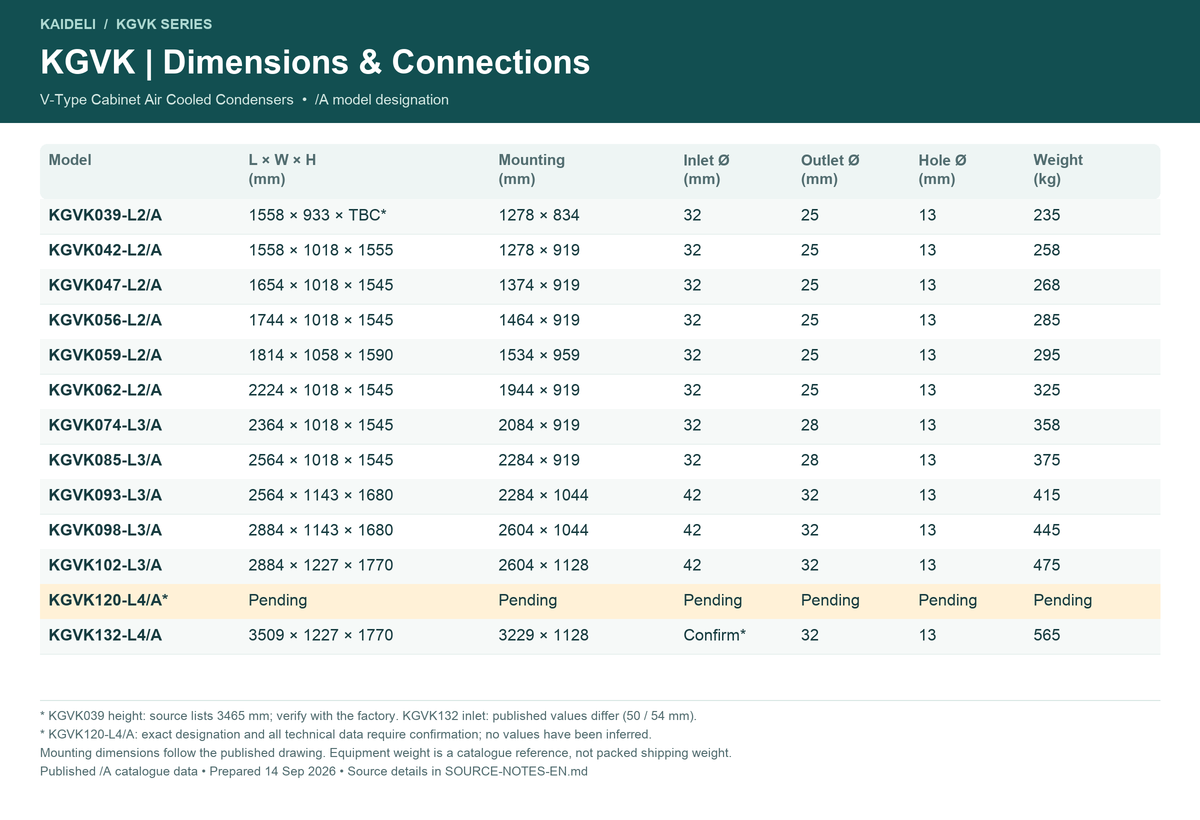

| Model | L × W × H (mm) | Mounting Dimensions (mm) | Inlet Diameter (mm) | Outlet Diameter (mm) | Reference Weight (kg) |
|---|---|---|---|---|---|
| KGVK039-L2/A | 1558 × 933 × TBC* | 1278 × 834 | 32 | 25 | 235 |
| KGVK042-L2/A | 1558 × 1018 × 1555 | 1278 × 919 | 32 | 25 | 258 |
| KGVK047-L2/A | 1654 × 1018 × 1545 | 1374 × 919 | 32 | 25 | 268 |
| KGVK056-L2/A | 1744 × 1018 × 1545 | 1464 × 919 | 32 | 25 | 285 |
| KGVK059-L2/A | 1814 × 1058 × 1590 | 1534 × 959 | 32 | 25 | 295 |
| KGVK062-L2/A | 2224 × 1018 × 1545 | 1944 × 919 | 32 | 25 | 325 |
| KGVK074-L3/A | 2364 × 1018 × 1545 | 2084 × 919 | 32 | 28 | 358 |
| KGVK085-L3/A | 2564 × 1018 × 1545 | 2284 × 919 | 32 | 28 | 375 |
| KGVK093-L3/A | 2564 × 1143 × 1680 | 2284 × 1044 | 42 | 32 | 415 |
| KGVK098-L3/A | 2884 × 1143 × 1680 | 2604 × 1044 | 42 | 32 | 445 |
| KGVK102-L3/A | 2884 × 1227 × 1770 | 2604 × 1128 | 42 | 32 | 475 |
| KGVK120-L4/A | Pending | Pending | Pending | Pending | Pending |
| KGVK132-L4/A | 3509 × 1227 × 1770 | 3229 × 1128 | Confirm* | 32 | 565 |

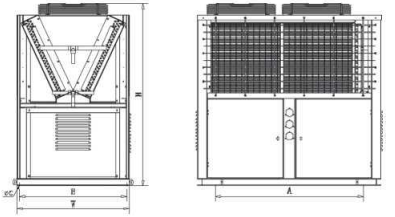

Mounting hole diameter is 13 mm for the published models. Mounting dimensions must be read with the applicable factory drawing. Weights are published equipment references, not packed shipping weights.
KGVK039-L2/A: the published height requires verification and is shown as TBC.
KGVK132-L4/A: published inlet diameters differ between sources, with values of 50 and 54 mm. Confirm the current factory connection.
How to Select Your Model
- Determine the required condenser heat-rejection duty and compressor selection.
- Specify the refrigerant, design ambient temperature and condensing temperature.
- Confirm voltage, phase, frequency and fan-control requirements.
- Check installation space, airflow clearances, pipe connections and service access.
- Review the current factory drawing, technical selection and scope of supply before ordering.
| Model |
KGVK039-L2/A, KGVK042-L2/A, KGVK047-L2/A, KGVK056-L2/A, KGVK059-L2/A, KGVK062-L2/A, KGVK074-L3/A, KGVK085-L3/A, KGVK093-L3/A, KGVK098-L3/A, KGVK102-L3/A, KGVK120-L4/A, KGVK132-L4/A |
|---|
