KAIDELI KUDL Series High-Temperature Ceiling Unit Coolers with Water Defrost
Product Description
The KAIDELI KUDL Series comprises ceiling-mounted unit coolers manufactured by Zhejiang Kaidi Refrigeration Equipment Co., Ltd. for high-temperature cold-room applications. The series uses 4.5 mm fin spacing and a water-defrost configuration, with published cooling capacities from 12.9 to 86.0 kW for the listed models.
The heat exchanger uses staggered copper tubes mechanically expanded into aluminium fins to provide close tube-to-fin contact and efficient heat transfer. Low-noise external-rotor axial fans provide high airflow and long air throw, while moisture-resistant and low-temperature-resistant construction supports dependable operation in refrigerated environments.
Published defrost-water requirements range from 0.8 to 6.3 m³/h, depending on the selected model. The heat-exchanger coil is factory air-tightness tested at 2.6 MPa. Aluminium-sheet and powder-coated steel casing options are available.
Final selection must be based on the required cooling capacity, cold-room load, refrigerant, room temperature, water supply, drainage arrangement and electrical supply.
Key Features
- High-temperature ceiling-mounted unit cooler
- Water-defrost configuration
- 4.5 mm fin spacing
- Published capacities from 12.9 to 86.0 kW
- Copper-tube and aluminium-fin heat exchanger
- Copper-tube wall thickness up to 0.6 mm
- Low-noise external-rotor axial fans
- Coil factory tested at 2.6 MPa
- Aluminium or powder-coated steel casing options
- Compatible with R134a, R404A, R507A, R407C and R22

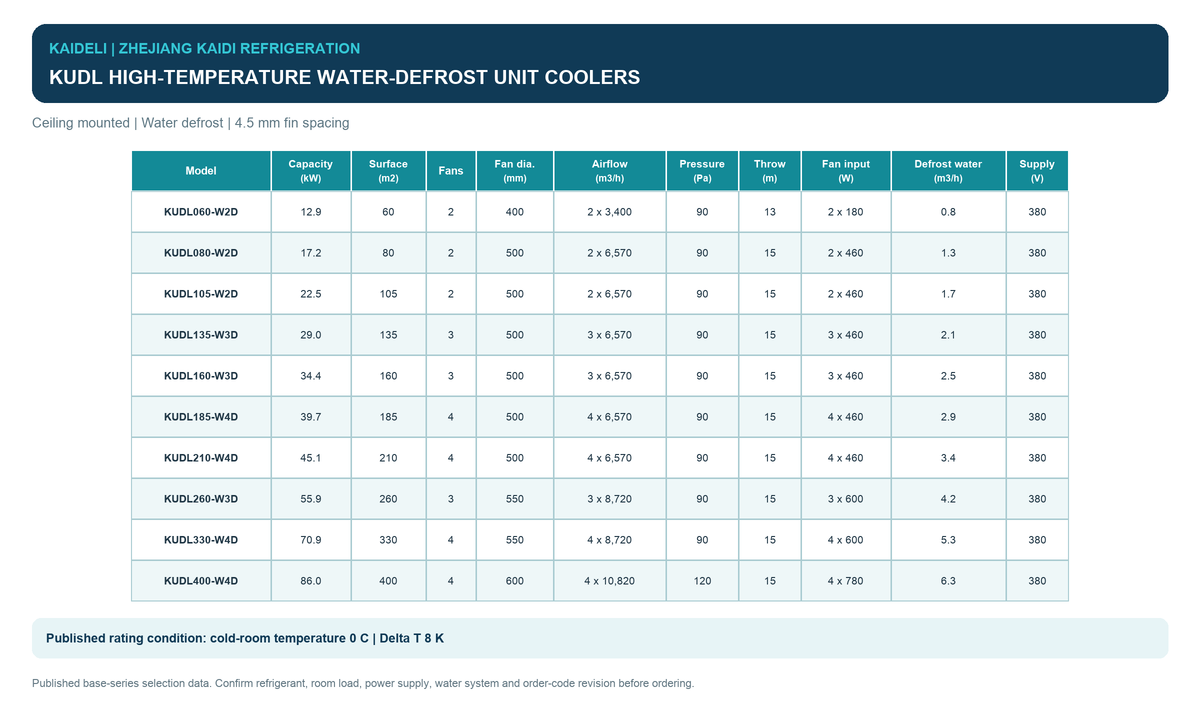

| Model |
KUDL060-W2D, KUDL080-W2D, KUDL105-W2D, KUDL135-W3D, KUDL160-W3D, KUDL185-W4D, KUDL210-W4D, KUDL260-W3D, KUDL330-W4D, KUDL400-W4D |
|---|
