Product Title

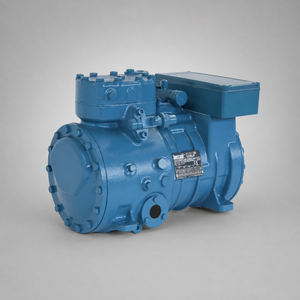

Frascold V Series Semi-Hermetic Reciprocating Compressor

Product Description

The Frascold V Series comprises four-cylinder semi-hermetic reciprocating compressors designed for medium- and large-capacity commercial and industrial refrigeration systems.

The available models on this page cover volumetric displacements from 58.5 to 102.9 m³/h at 50 Hz and nominal motor ratings from 15 to 35 HP. Different motor versions are available for low-, medium-, and high-temperature refrigeration applications.

The V Series features pressure-fed oil-pump lubrication, electronic compressor protection, part-winding-start motors, and compatibility with optional capacity-control systems. It is suitable for cold storage facilities, freezer rooms, food-processing systems, condensing units, compressor racks, and other demanding refrigeration applications.

Key Features

• Four-cylinder semi-hermetic reciprocating design

• Nominal motor ratings from 15 to 35 HP

• Displacement range from 58.5 to 102.9 m³/h at 50 Hz

• Part-winding-start motor

• Oil-pump lubrication system

• POE68 lubricant with a 4 L oil charge

• Electronic motor and oil-pressure protection

• IP65 electrical terminal box

• Two oil-level sight glasses

• Compatible with variable-frequency operation within the approved envelope

• Optional RSH capacity-control system

• Optional CC capacity-control head

• Alternative motor voltages available on request

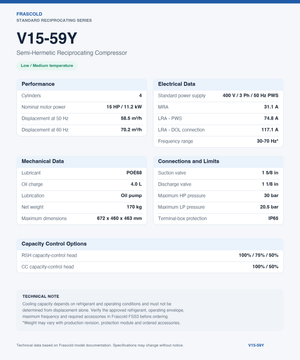

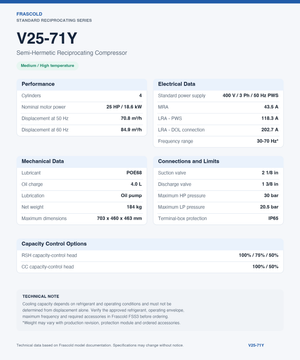

Available Models and Performance Data

Motor Version 1 is intended primarily for medium- and high-temperature applications. Motor Version 2 is intended primarily for low- and medium-temperature applications. The approved operating envelope depends on the refrigerant and operating conditions.

Dimensions, Connections and Weight

Net weight may vary slightly according to production revision, protection module and ordered accessories. Confirm the order-specific technical sheet before shipment.

General Technical Specifications

Refrigerant Compatibility

Frascold Standard Series compressors support multiple refrigerant families, including HCFC, HFC, HFO, HFO blends, and selected natural refrigerants.

Approved refrigerants vary according to the exact model, motor version, application range, oil configuration, and regional specification. Refrigerant compatibility and the operating envelope must be verified before ordering.

Typical Applications

• Medium- and large-capacity cold rooms

• Frozen-storage facilities

• Food-processing refrigeration

• Supermarket refrigeration systems

• Commercial condensing units

• Parallel compressor racks

• Beverage-production systems

• Ice-making equipment

• Industrial refrigeration equipment

• Refrigeration retrofit projects

Optional Accessories

• Crankcase oil heater

• RSH capacity-control head

• CC capacity-control head

• Unloaded-start head

• Head cooling fan

• Water-cooled compressor head

• Discharge-temperature sensor

• Electronic oil-pressure protection

• Electronic oil-level regulator

• Liquid-injection kit

• Oil equalization fittings

• Special-voltage motor

• Modbus communication gateway

Selection Notice

Cooling capacity must not be determined from compressor displacement or motor power alone. It varies according to refrigerant, evaporating temperature, condensing temperature, suction superheat, liquid subcooling, operating frequency, and system configuration.

Before ordering, please provide:

• Required compressor model or cooling capacity

• Refrigerant

• Evaporating temperature

• Condensing temperature

• Suction superheat

• Local voltage and frequency

• Low-, medium-, or high-temperature application

The final compressor selection should be verified using Frascold selection data.
