HONGSEN HMG Series High-Pressure Flexible Refrigeration Hoses
Description
Product Overview

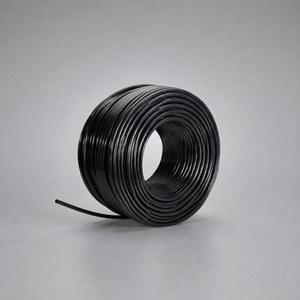

The HONGSEN HMG Series consists of flexible high-pressure hoses designed primarily for compressor suction and discharge connections in refrigeration, cold-storage and air-conditioning systems.
Manufactured from high-quality nylon and polyester materials, the hoses provide resistance to pressure, elevated temperature and ageing. The smooth inner wall helps minimize refrigerant flow resistance.
The flexible construction simplifies pipe routing and helps reduce the installation difficulties associated with rigid copper connections. Three hose sizes are available to suit different system capacities and fitting requirements.
Key Features
- High-quality nylon and polyester construction
- Resistant to pressure, temperature and ageing
- Smooth inner wall for low refrigerant flow resistance
- Flexible connection for easier installation
- Suitable for compressor suction and discharge connections
- Selectable hose length
- Matching bend cores, straight cores, nuts and sleeves available
- Suitable for HCFC and HFC refrigerants

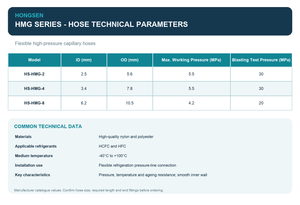

Technical Specifications
| Model | Inner Diameter | Outer Diameter | Maximum Working Pressure | Blasting Test Pressure |
|---|---|---|---|---|
| HS-HMG-2 | 2.5 mm | 5.6 mm | 5.5 MPa | 30 MPa |
| HS-HMG-4 | 3.4 mm | 7.8 mm | 5.5 MPa | 30 MPa |
| HS-HMG-8 | 6.2 mm | 10.5 mm | 4.2 MPa | 20 MPa |
Common Technical Data
| Item | Specification |
|---|---|
| Materials | High-quality nylon and polyester |
| Applicable refrigerants | HCFC and HFC |
| Medium temperature | -40°C to +100°C |
| Installation use | Flexible refrigeration pressure-line connection |
| Hose length | Selected according to order requirements |
| End fittings | Ordered according to hose model and connection type |

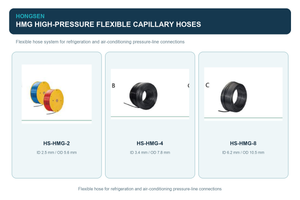

Available Variants
- HS-HMG-2 — Black
- HS-HMG-2 — Blue
- HS-HMG-2 — Red
- HS-HMG-4 — Black
- HS-HMG-8 — Black
Applications
- Commercial refrigeration systems
- Cold rooms and refrigerated warehouses
- Air-conditioning equipment
- Compressor suction connections
- Compressor discharge connections
- Refrigeration equipment repair and maintenance
Ordering Information
Please provide:
- Hose model
- Required color
- Required hose length
- End-fitting configuration
- Connection standard
- Refrigerant
- Operating pressure
- Quantity
| Model |
HS-HMG-2, HS-HMG-4, HS-HMG-8 |
|---|
