HONGSEN VAF Series Refrigeration Vibration Eliminators
Description
Product Overview
HONGSEN VAF Series vibration eliminators are designed to reduce compressor vibration transmission in refrigeration and air-conditioning piping systems.

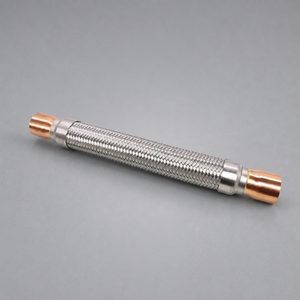

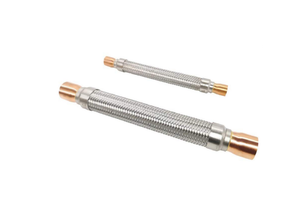

Each assembly uses a SUS316L corrugated metal hose, braided wire sleeve, pipe connectors, clamping rings and copper connection tubes. The flexible construction helps protect suction and discharge piping against vibration-related fatigue while compensating for limited thermal displacement.
According to the HONGSEN product catalogue, the VAF series uses integrated argon-arc welding between the wire sleeve, connector and clamping ring. Furnace brazing is used between the connector and corrugated hose to provide stable joint quality.
Key Features
- Designed for refrigeration and air-conditioning systems
- Suitable for compressor suction and discharge lines
- SUS316L corrugated hose for corrosion resistance
- Braided wire reinforcement
- ODF solder connections
- Integrated argon-arc-welded construction
- Furnace-brazed connector joints
- Helps reduce vibration transmission and piping noise
- Compensates for thermal displacement
- Wide size range from 3/8 to 3-1/8 inch
- Suitable for applicable HCFC and HFC refrigerants
- Medium temperature range from −40°C to +150°C
- Proof pressure specified as 1.5 times the maximum working pressure
Technical Specifications
| Item | Specification |
|---|---|
| Brand | HONGSEN |
| Series | VAF |
| Product Type | Refrigeration Vibration Eliminator |
| Connection Type | ODF Solder |
| Corrugated Hose Material | SUS316L Stainless Steel |
| Applicable Refrigerants | HCFC and HFC refrigerants |
| Medium Temperature Range | −40°C to +150°C |
| Proof Pressure | 1.5 × Maximum Working Pressure |
| Installation Position | Compressor suction or discharge piping |

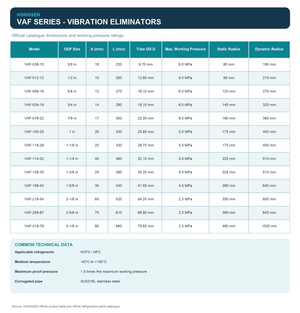

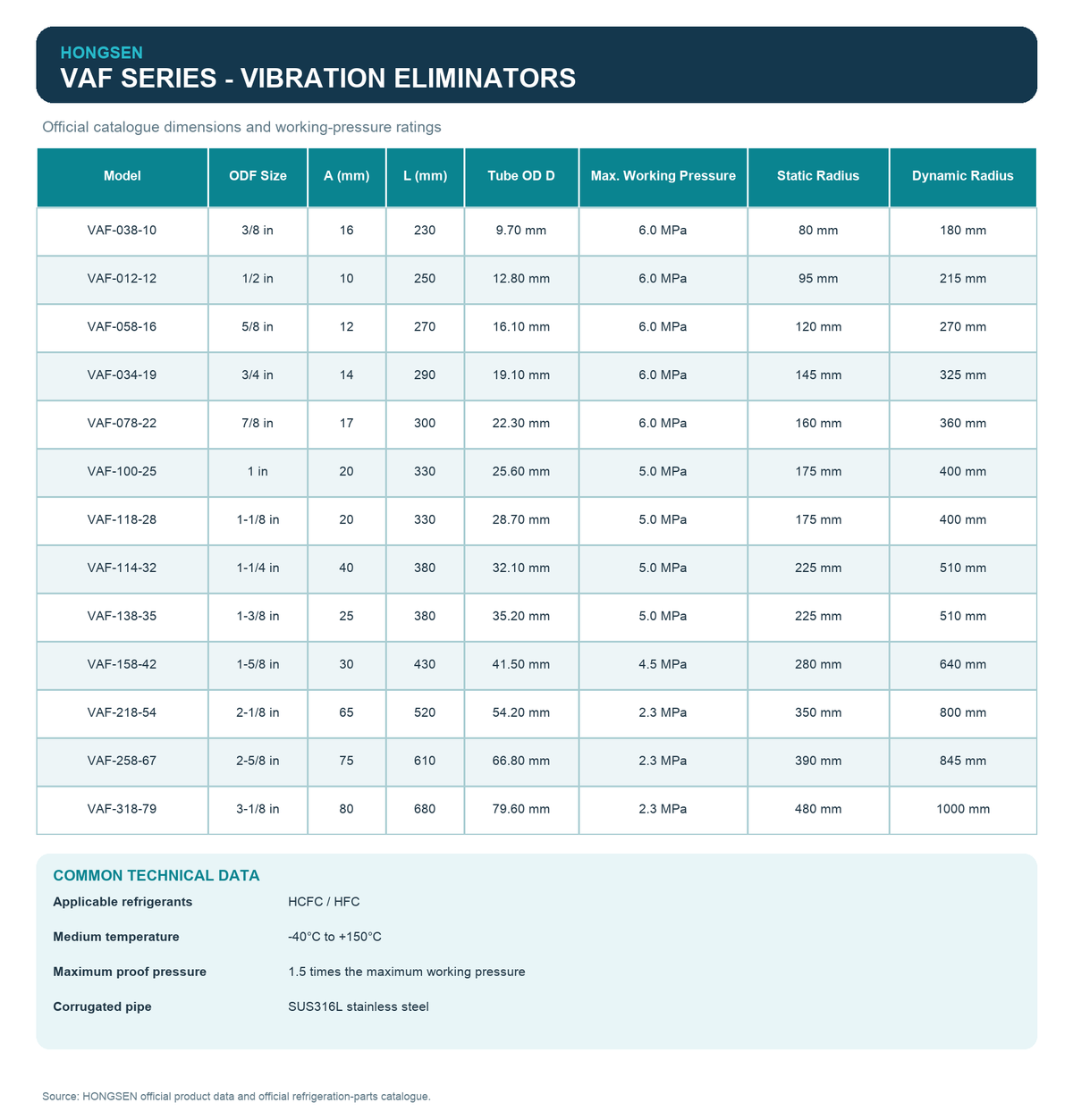

Available Models
All dimensions and bend radii are in millimetres.
| Model | ODF Connection | A | L | Tube OD D | Max. Working Pressure | Static Radius | Dynamic Radius |
|---|---|---|---|---|---|---|---|
| VAF-038-10 | 3/8 in | 16 | 230 | 9.70 | 6.0 MPa | 80 | 180 |
| VAF-012-12 | 1/2 in | 10 | 250 | 12.80 | 6.0 MPa | 95 | 215 |
| VAF-058-16 | 5/8 in | 12 | 270 | 16.10 | 6.0 MPa | 120 | 270 |
| VAF-034-19 | 3/4 in | 14 | 290 | 19.10 | 6.0 MPa | 145 | 325 |
| VAF-078-22 | 7/8 in | 17 | 300 | 22.30 | 6.0 MPa | 160 | 360 |
| VAF-100-25 | 1 in | 20 | 330 | 25.60 | 5.0 MPa | 175 | 400 |
| VAF-118-28 | 1-1/8 in | 20 | 330 | 28.70 | 5.0 MPa | 175 | 400 |
| VAF-114-32 | 1-1/4 in | 40 | 380 | 32.10 | 5.0 MPa | 225 | 510 |
| VAF-138-35 | 1-3/8 in | 25 | 380 | 35.20 | 5.0 MPa | 225 | 510 |
| VAF-158-42 | 1-5/8 in | 30 | 430 | 41.50 | 4.5 MPa | 280 | 640 |
| VAF-218-54 | 2-1/8 in | 65 | 520 | 54.20 | 2.3 MPa | 350 | 800 |
| VAF-258-67 | 2-5/8 in | 75 | 610 | 66.80 | 2.3 MPa | 390 | 845 |
| VAF-318-79 | 3-1/8 in | 80 | 680 | 79.60 | 2.3 MPa | 480 | 1000 |
Installation Notes
- Install the vibration eliminator as close to the compressor as practical.
- Do not twist the assembly during installation.
- Do not use the vibration eliminator to correct excessive piping misalignment.
- Maintain at least the specified minimum bend radius.
- Support the connected piping independently.
- Protect the corrugated section from excessive brazing heat.
- Confirm that system pressure does not exceed the model’s maximum working pressure.
Applications
- Cold room refrigeration systems
- Condensing units
- Commercial refrigeration equipment
- Compressor suction and discharge piping
- Refrigerated warehouses
- Food-processing refrigeration plants
- Industrial refrigeration systems
- Air-conditioning equipment
