VALUE VBT-CB1 & VBT-CB1R 7-in-1 Ratchet Tube Benders – 1/4" to 7/8"
Description

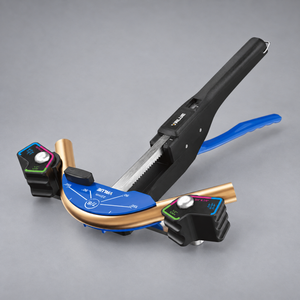

VALUE 7-in-1 Ratchet Tube Benders
Work across several tubing sizes with one bending tool. The VALUE VBT-CB1 and VBT-CB1R combine a seven-size selector with manual ratchet operation for forming bends up to 90°.
An ergonomic handle supports progressive bending, while the release mechanism helps remove the tube after forming. Choose the VBT-CB1 for standard bending or the VBT-CB1R configuration with the manufacturer-listed VTBRK reverse bending attachment.
Key Features
- Seven sizes in one selector: Switch between the listed tube sizes.
- Manual ratchet operation: Advance the bend through repeated handle movements.
- 0–90° bending range: Covers common right-angle tubing layouts.
- Ergonomic handle: Supports a controlled grip during operation.
- Easy-release mechanism: Helps release the formed tube.
- Reverse bending configuration: VBT-CB1R includes the listed VTBRK attachment kit.

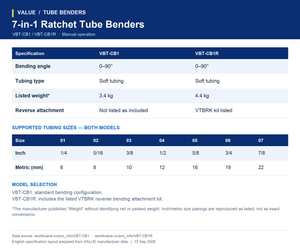

Model Comparison
| Specification | VBT-CB1 | VBT-CB1R |
|---|---|---|
| Tool type | Manual ratchet tube bender | Manual ratchet tube bender |
| Number of selectable sizes | 7 | 7 |
| Listed imperial size range | 1/4" to 7/8" | 1/4" to 7/8" |
| Bending angle | 0–90° | 0–90° |
| Applicable tubing | Soft tubing | Soft tubing |
| Reverse bending attachment | Not listed as included | VTBRK attachment kit |
| Published weight | 3.4 kg | 4.4 kg |
Supported Tube Sizes
| Imperial Size | Manufacturer-Listed Metric Size |
|---|---|
| 1/4" | 6 mm |
| 5/16" | 8 mm |
| 3/8" | 10 mm |
| 1/2" | 12 mm |
| 5/8" | 16 mm |
| 3/4" | 19 mm |
| 7/8" | 22 mm |
These pairings reproduce the manufacturer’s size markings. Confirm the actual tube outside diameter and select the corresponding tool setting.
Applications
- Air-conditioning tubing installation.
- Refrigeration service and pipework preparation.
- Jobs involving several tube sizes.
- Layouts requiring reverse bending with the appropriate attachment.
Which Version Should You Choose?
| Requirement | Recommended Version |
|---|---|
| Standard bending across the seven listed sizes | VBT-CB1 |
| Standard and reverse bending capability | VBT-CB1R |
| Lowest published weight of the two configurations | VBT-CB1 |
Check the available working space and direction of the proposed bend before choosing a configuration.
| Model |
VBT-CB1 – Standard Bending, VBT-CB1R – With Reverse Bending Attachment |
|---|
