Description

VALUE VBT Manual Lever Tube Benders

Choose a dedicated tube bender for the sizes you work with most. The VALUE VBT range provides manual bending from 0° to 180°, with model-specific forming wheels for selected imperial and metric tubing.

Double rollers help reduce friction as the tube moves around the forming wheel, while visible angle markings support controlled positioning. The range includes VBT-1, VBT-1A, VBT-2, VBT-2A, VBT-3, VBT-4 and VBT-5.

Key Features

• 0–180° bending range: Suitable for forming right-angle bends and larger return bends within the tool’s specified range.

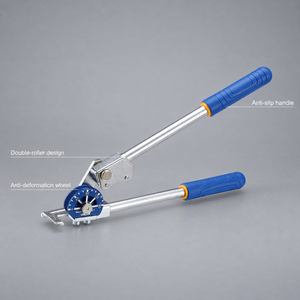

• Double-roller design: Reduces friction during the bending movement.

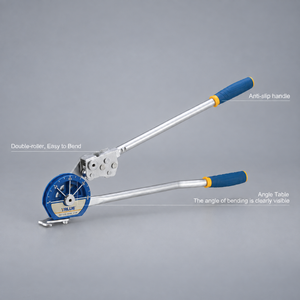

• Visible angle markings: Provides a reference for setting the required bend.
• X-TURN mechanism: Supports handle repositioning during larger-angle bending.
• Dedicated tube sizes: Select the forming wheel that matches your tubing.
• Two-stage handles on VBT-3, VBT-4 and VBT-5: Supports bending through larger angles.

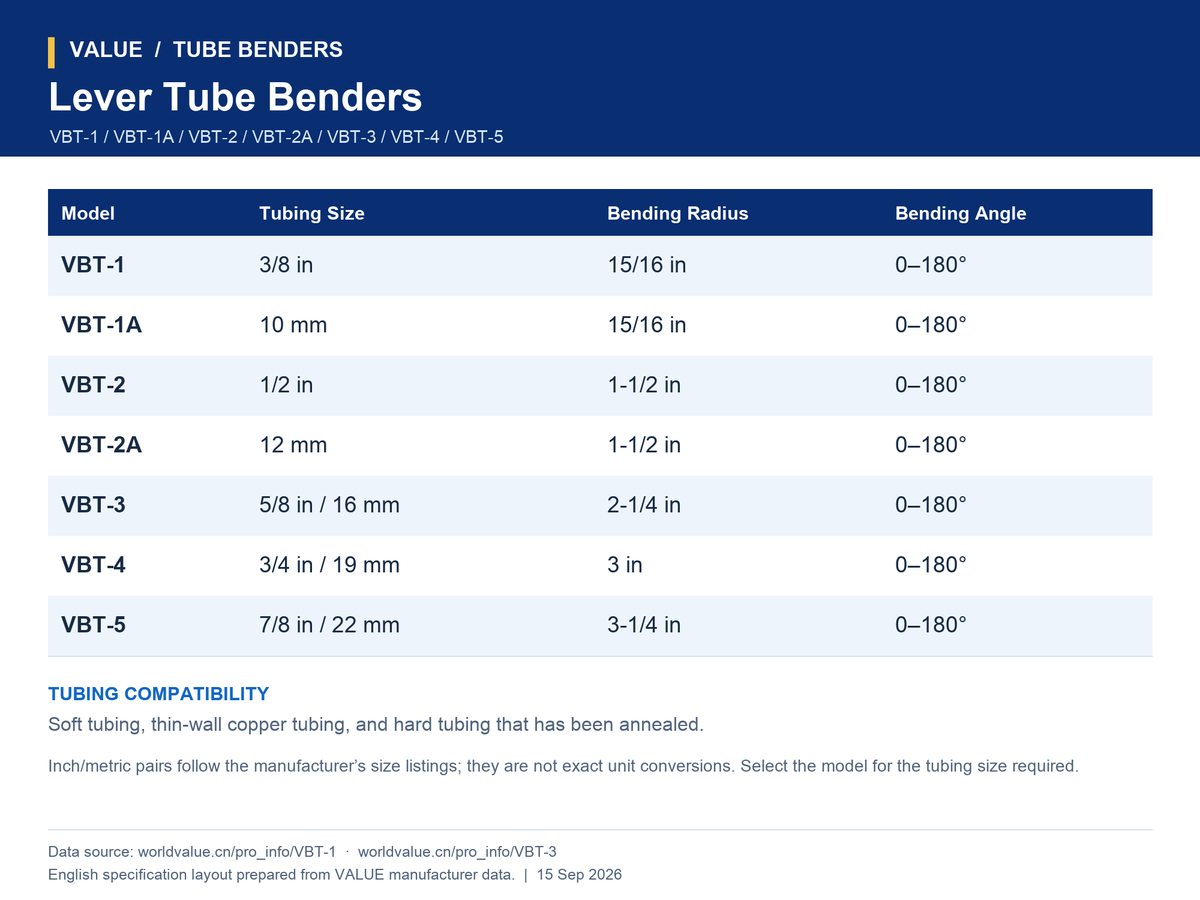

Technical Specifications

The paired imperial and metric sizes above follow the manufacturer’s stated compatibility. They are not exact unit conversions. Match the tool markings to the actual tube outside diameter.

Tubing Compatibility

The manufacturer specifies soft tubing, thin-wall copper tubing and suitably annealed hard tubing. Tube material, temper and wall thickness affect bending suitability; confirm these before selecting the tool.

Applications

• Air-conditioning tubing installation.
• Refrigeration pipework preparation.
• Workshop tube forming.
• Maintenance work requiring bends in compatible tubing.

Choosing the Correct Model

Select by tube outside diameter, then check the required bend radius and working clearance.

VBT-1 and VBT-1A are separate 3/8" and 10 mm models. VBT-2 and VBT-2A are separate 1/2" and 12 mm models. For larger tubing, choose the corresponding VBT-3, VBT-4 or VBT-5.

Allow enough room for the handles to travel through the required bending angle.
