Frascold A Series Semi-Hermetic Reciprocating Compressors

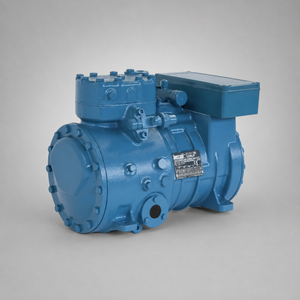

Frascold A Series Semi-Hermetic Reciprocating Compressor
DESCRIPTION
The Frascold A1.5-7Y and A1.5-8Y are compact, single-stage semi-hermetic reciprocating compressors designed for commercial refrigeration and HVACR applications.
Both models feature a two-cylinder design, a nominal motor power of 1.1 kW, POE lubrication and integrated motor protection. Their compact cast-iron construction provides reliable operation while reducing the installation space required inside condensing units and refrigeration systems.
The two models share the same nominal motor size but provide different volumetric displacements. Compressor selection must be based on the refrigerant, evaporating temperature, condensing temperature, required cooling capacity and electrical supply.
KEY FEATURES
• Semi-hermetic reciprocating compressor
• Single-stage compression
• Compact two-cylinder construction
• Suitable for commercial refrigeration applications
• Integrated INT69 motor protection
• IP56 electrical terminal box
• PTC motor protection
• Oil level sight glass
• POE32 lubricant
• Suction and discharge service valves
• Suitable for inverter operation on applicable three-phase versions
• Manufactured by Frascold in Italy

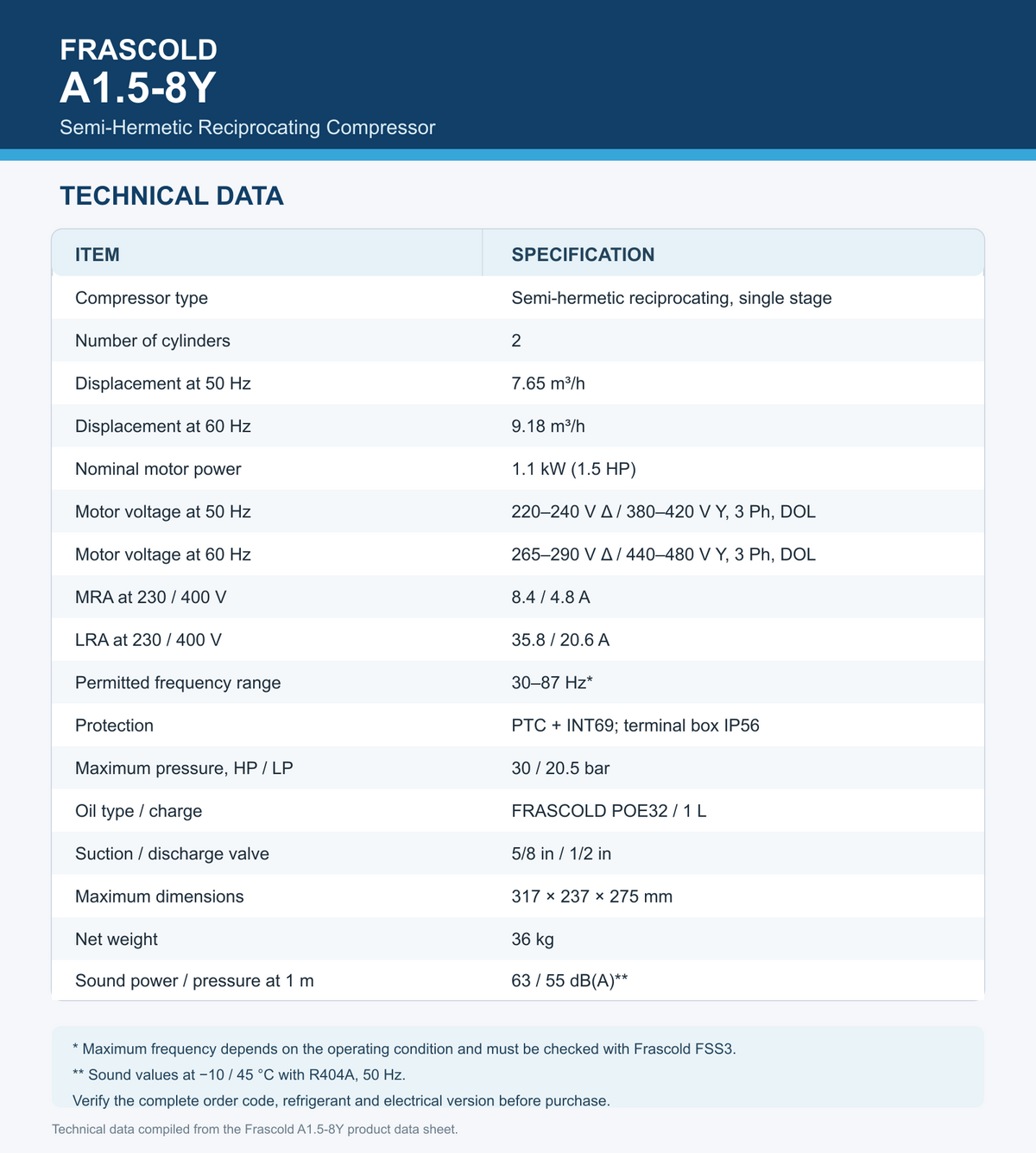

TECHNICAL SPECIFICATIONS
| Specification | A1.5-7Y | A1.5-8Y |
|---|---|---|
| Compressor Type | Semi-Hermetic Reciprocating | Semi-Hermetic Reciprocating |
| Compression Stages | Single Stage | Single Stage |
| Number of Cylinders | 2 | 2 |
| Displacement at 50 Hz | 6.91 m³/h | 7.65 m³/h |
| Displacement at 60 Hz | 8.29 m³/h | 9.18 m³/h |
| Nominal Motor Power | 1.1 kW | 1.1 kW |
| Nominal Horsepower | 1.5 HP | 1.5 HP |
| Motor Version | Version 1 | Version 1 |
| Oil Type | Frascold POE32 | Frascold POE32 |
| Oil Charge | 1 L | 1 L |
| Lubrication | Centrifugal | Centrifugal |
| Maximum HP Pressure | 30 bar | 30 bar |
| Maximum LP Pressure | 20.5 bar | 20.5 bar |
| Suction Valve | 5/8 inch | 5/8 inch |
| Discharge Valve | 1/2 inch | 1/2 inch |
| Motor Protection | PTC with INT69 | PTC with INT69 |
| Terminal Box Protection | IP56 | IP56 |
| Body Material | Cast Iron | Cast Iron |
| Dimensions, Standard Three-Phase Version | 317 × 237 × 275 mm | 317 × 237 × 275 mm |
| Net Weight, Standard Three-Phase Version | 36 kg | 36 kg |
STANDARD THREE-PHASE ELECTRICAL DATA
| Specification | A1.5-7Y | A1.5-8Y |
| 50 Hz Supply | 220–240 V Δ / 380–420 V Y, 3 Phase | 220–240 V Δ / 380–420 V Y, 3 Phase |
| 60 Hz Supply | 265–290 V Δ / 440–480 V Y, 3 Phase | 265–290 V Δ / 440–480 V Y, 3 Phase |
| Starting Method | DOL | DOL |
| MRA at 230 V | 7.9 A | 8.4 A |
| MRA at 400 V | 4.5 A | 4.8 A |
| LRA at 230 V | 35.8 A | 35.8 A |
| LRA at 400 V | 20.6 A | 20.6 A |
| Permitted Frequency Range | 30–87 Hz* | 30–87 Hz* |
*The maximum allowable frequency depends on the operating conditions and must be checked using Frascold Selection Software.
REFRIGERANT INFORMATION
Approved refrigerants depend on the compressor version and operating envelope. Available refrigerants may include:
R22, R134a, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R507 and R513A.
Always confirm the refrigerant and operating conditions before ordering.
APPLICATIONS
• Commercial refrigeration systems
• Cold rooms
• Food storage refrigeration
• Beverage refrigeration
• Ice machines
• Air-cooled and water-cooled condensing units
• Medium- and high-temperature refrigeration applications
AVAILABLE MODELS
A1.5-7Y
A1.5-8Y
| Model |
A1.5-7Y, A1.5-8Y |
|---|
