Frascold B Series Semi-Hermetic Reciprocating Compressors
Product Description

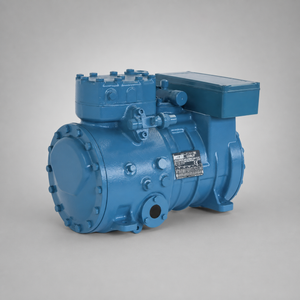

The Frascold B Series consists of compact semi-hermetic reciprocating compressors designed for commercial refrigeration and air-conditioning applications.
With two-cylinder construction, compact dimensions and low vibration levels, these compressors provide reliable operation in applications where installation space, operating stability and noise control are important.
The B1.5-9.1Y and B1.5-10.1Y use motor version 2 for low- and medium-temperature refrigeration. The B2-10.1Y uses motor version 1 and a higher-rated motor for medium- and high-temperature applications.
Key Features
-
Semi-hermetic reciprocating compressor design
-
Two-cylinder construction
-
Compact installation footprint
-
Suitable for fixed-speed and approved variable-frequency operation
-
Frascold POE32 lubricant
-
INT69 electronic motor protection
-
IP56 electrical terminal box
-
Oil-level sight glass
-
Suction and discharge service connections
-
Designed for HFC, HFO, HCFC and approved refrigerant blends
-
Suitable for commercial refrigeration and air-conditioning systems

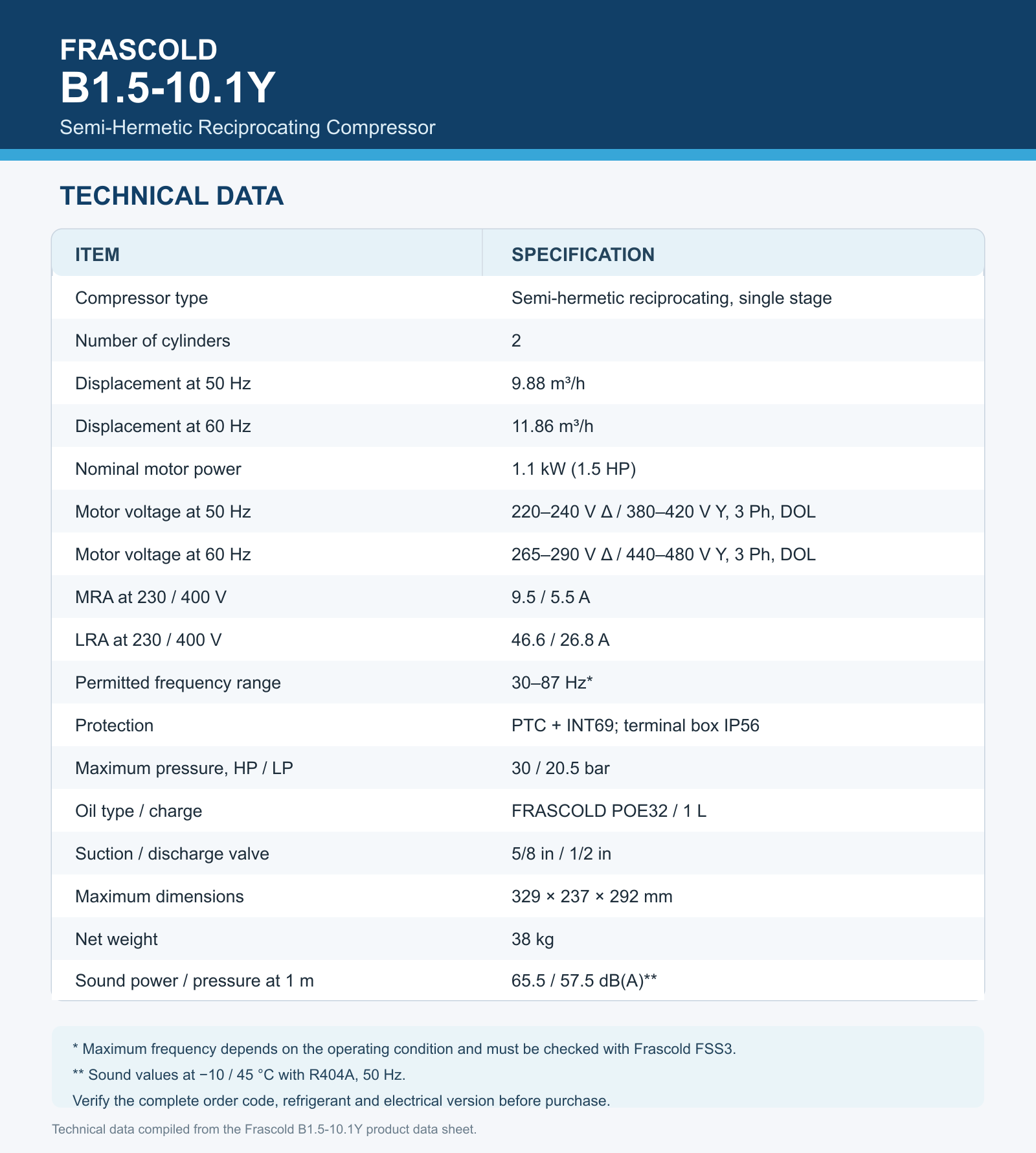

Technical Specifications
| Specification | B1.5-9.1Y | B1.5-10.1Y | B2-10.1Y |
|---|---|---|---|
| Compressor Type | Semi-Hermetic Reciprocating | Semi-Hermetic Reciprocating | Semi-Hermetic Reciprocating |
| Number of Cylinders | 2 | 2 | 2 |
| Displacement at 50 Hz | 8.96 m³/h | 9.88 m³/h | 9.88 m³/h |
| Displacement at 60 Hz | 10.75 m³/h | 11.86 m³/h | 11.86 m³/h |
| Nominal Motor Power | 1.1 kW / 1.5 HP | 1.1 kW / 1.5 HP | 1.5 kW / 2 HP |
| Motor Version | Version 2 | Version 2 | Version 1 |
| Recommended Temperature Range | Low and Medium Temperature | Low and Medium Temperature | Medium and High Temperature |
| Oil Type | Frascold POE32 | Frascold POE32 | Frascold POE32 |
| Oil Charge | 1 L | 1 L | 1 L |
| Maximum HP Pressure | 30 bar | 30 bar | 30 bar |
| Maximum LP Pressure | 20.5 bar | 20.5 bar | 20.5 bar |
| Minimum Permitted Frequency | 30 Hz | 30 Hz | 30 Hz |
| Maximum Permitted Frequency* | 87 Hz | 87 Hz | 87 Hz |
| Motor Protection | PTC + INT69 | PTC + INT69 | PTC + INT69 |
| Terminal Box Protection | IP56 | IP56 | IP56 |
| Suction Connection | 5/8 in | 5/8 in | 3/4 in |
| Discharge Connection | 1/2 in | 1/2 in | 5/8 in |
| Dimensions (L × W × H) | 329 × 237 × 292 mm | 329 × 237 × 292 mm | 334 × 237 × 292 mm |
| Net Weight | 38 kg | 38 kg | 40 kg |
| Sound Pressure at 1 m** | 55 dB(A) | 57.5 dB(A) | 58.5 dB(A) |
Electrical Data
| Model | MRA at 230 V | MRA at 400 V | LRA at 230 V | LRA at 400 V |
| B1.5-9.1Y | 10.2 A | 5.9 A | 46.6 A | 26.8 A |
| B1.5-10.1Y | 9.5 A | 5.5 A | 46.6 A | 26.8 A |
| B2-10.1Y | 11.7 A | 6.7 A | 62.5 A | 35.9 A |
Standard Motor Supply
-
220–240 V Δ / 380–420 V Y, 3-phase, 50 Hz
-
265–290 V Δ / 440–480 V Y, 3-phase, 60 Hz
-
Direct-on-line starting
Typical Applications
-
Cold rooms
-
Walk-in coolers and freezers
-
Food storage refrigeration
-
Beverage refrigeration
-
Ice machines
-
Display cabinets
-
Commercial refrigeration systems
-
Air-conditioning systems
Important Selection Notice
Cooling capacity, refrigerant compatibility, operating envelope and electrical configuration depend on the selected refrigerant, evaporating temperature, condensing temperature and complete compressor order code.
Please provide the refrigerant, required operating temperature, power supply and application conditions before ordering.
* Maximum operating frequency depends on the working conditions and must be verified using Frascold Selection Software.
** Published sound-pressure values are measured at 1 metre under the manufacturer’s stated reference conditions.
