XUEMEI BSV Series Semi-Hermetic Two-Stage Reciprocating Compressors
Product Description
XUEMEI BSV Series Semi-Hermetic Two-Stage Reciprocating Compressors
The XUEMEI BSV Series is designed for low-temperature and ultra-low-temperature refrigeration applications requiring two-stage compression.
By dividing the total compression process into two stages, the compressor can reduce the pressure ratio and discharge temperature of each stage compared with a conventional single-stage arrangement operating under the same overall pressure ratio.
The BSV Series is suitable for freezer rooms, frozen-food storage, low-temperature processing and other demanding refrigeration applications. Refrigerant, cooling capacity, power supply and operating envelope must be confirmed for the selected model before ordering.
Key Features
- Semi-hermetic two-stage reciprocating construction
- Designed for low-temperature refrigeration applications
- Two-stage compression helps control discharge temperature
- Suitable for high compression-ratio operating conditions
- Serviceable compressor and motor assembly
- Multiple capacity configurations available
- Suitable for low-temperature condensing units and refrigeration systems
Typical Applications
- Walk-in freezer rooms
- Frozen-food warehouses
- Low-temperature food processing
- Cold-chain distribution centers
- Blast-freezing applications
- Industrial low-temperature refrigeration
Technical Information
| Parameter | Specification |
|---|---|
| Brand | XUEMEI |
| Manufacturer | Jiangsu Xuemei Refrigeration Equipment Co., Ltd. |
| Series | BSV |
| Compressor Type | Semi-Hermetic Two-Stage Reciprocating Compressor |
| Compression Stages | Two-Stage |
| Application | Low and Ultra-Low Temperature Refrigeration |
| Refrigerant | Model and application dependent |
| Power Supply | Model and destination dependent |

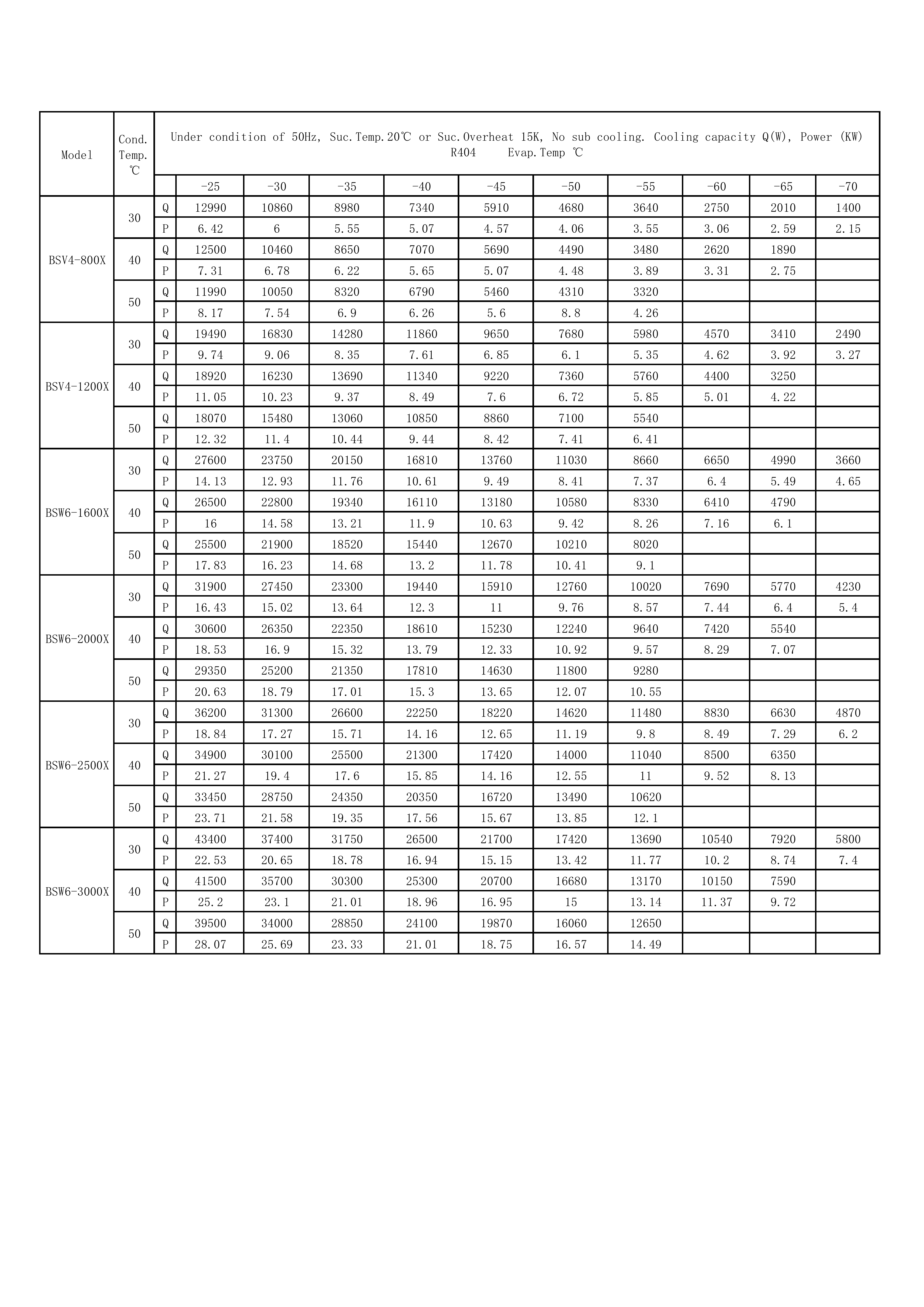

| Cooling Capacity | Subject to operating conditions |

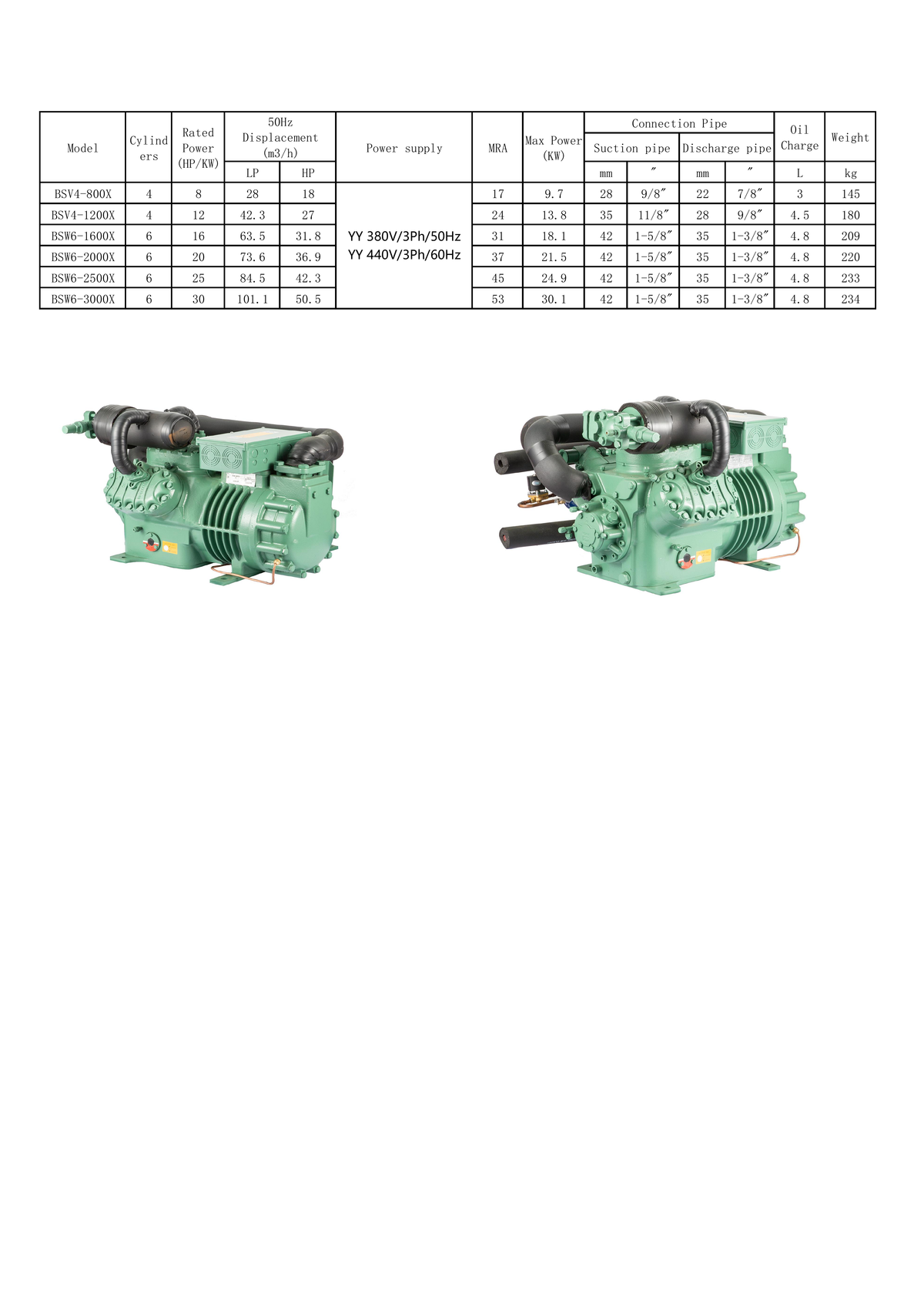

| Model |
BSV4-800, BSV4-1500, BSV6-2000, BSV6-2500, BSV6-3000 |
|---|
